HTX 8 M-CL-TW and the charcoal version HTX 8 M-CL-TC feature a tone-on-tone front mesh matching the grille colour.

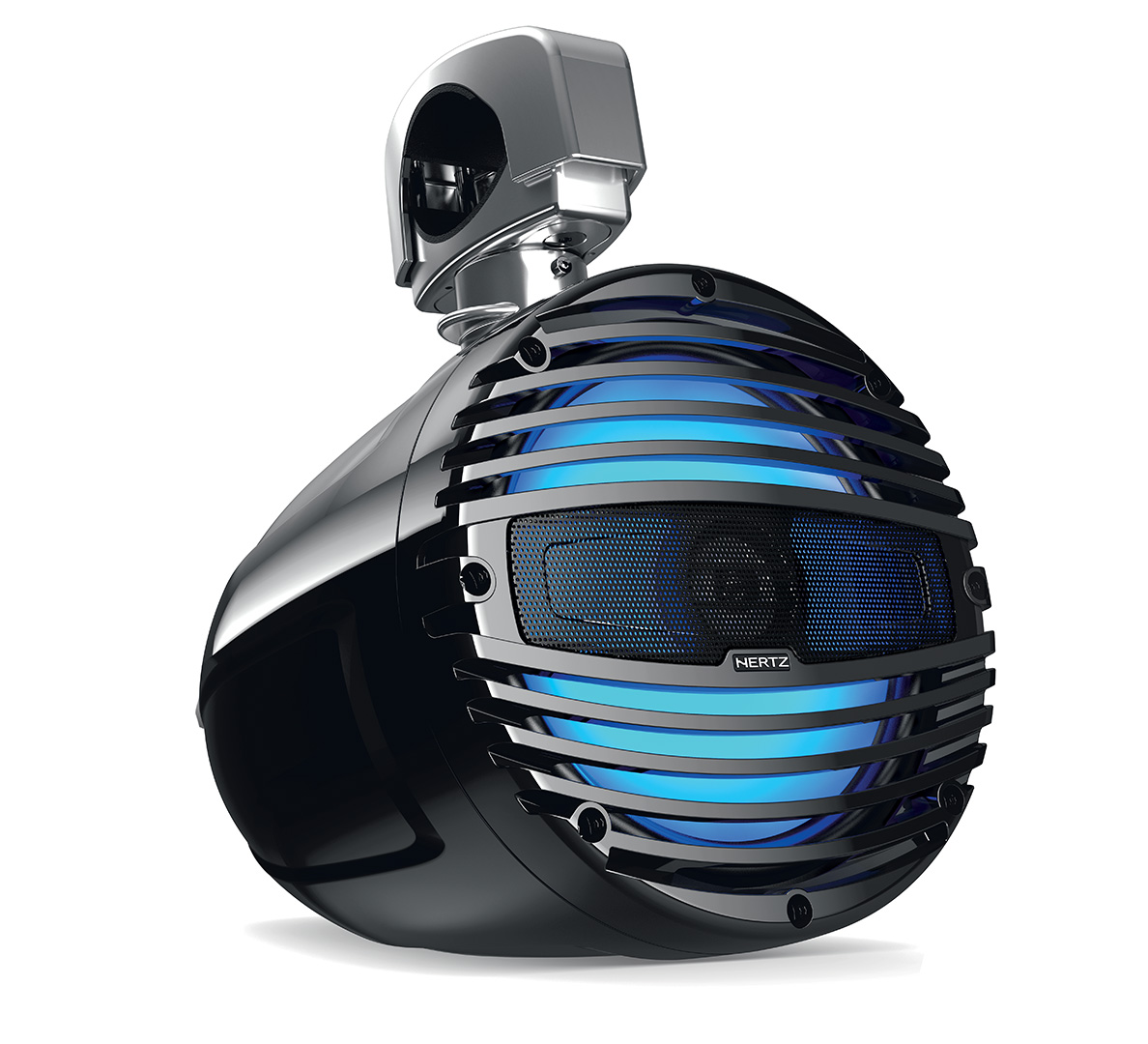

RGB LEDs lighting option will make your sport and leisure outings unforgettable, thanks to impressive audio performance and cool color lighting.

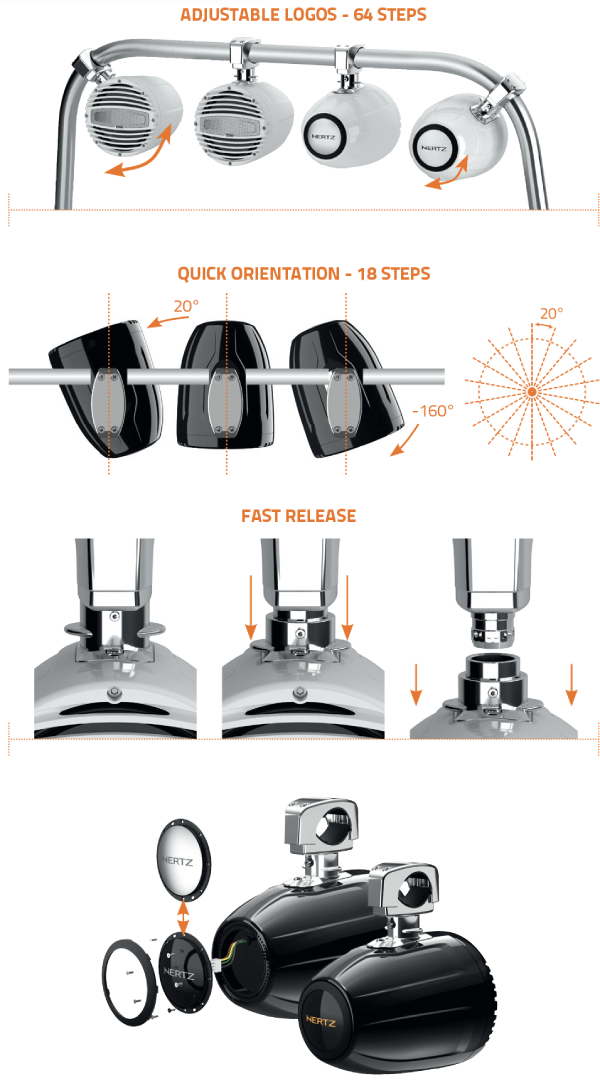

The solid 316-Stainless steel clamp mounting is ideal for Round or Square profile pipe applications where sound needs to be easily oriented and quickly released.
This is possible thanks to Q-OS (Quick Orientation Release for Sound Safety) patent pending technology.
Adjustable logo allows for several tower positioning without affecting the correct Hertz logo orientation. Front and rear logo can be oriented within 64 steps.
Features
Accessories
HTX RGB W LOGO.1
OPTIONAL RGB LED LIGHTING REAR LOGO WHITE
The optional white rear Hertz led logo creates the same sophisticated atmosphere of front led.
HTX RGB C LOGO.1
OPTIONAL RGB LED LIGHTING REAR LOGO BLACK
The optional black rear Hertz led logo creates the same sophisticated atmosphere of front led.
HM-RGB-1-BK
OPTIONAL RGB REMOTE CONTROL
Radio frequency remote control with a wide array of functionalities ranging from the selection of the color better matching your boat to the creation of a lighting game reacting to music tempo.
Technologies
RGB MULTICOLOR
Built-in RGB led lighting creates sophisticated atmosphere, adding tons of class to your vessel.
IP 65 CERTIFICATION
WATER JET TESTED
Hertz Marine tower are totally protected against water jets of different entities, making them highly performant in the marine environment.
UV RESISTANT
According to the severe ASTM-D4329 standards for UV resistance,all the materials used for Hertz Marine products are designed to face long time exposition to UV radiations while cruising on the open sea.
SALT FOG TESTED
To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure complete resistance to corrosion, typical of this atmospheric agent.
TECHNICAL SPECS | |
---|---|
Component | LED CLAMP TOWER |
Size mm (in.) | 200 (8) |
Power Handling - Continuous W | 100 |
Power Handling - Peak W | 200 |
Impedance Ohm | 4 |
Depth mm (in.) | 288 (11.34 in.) |
Woofer Voice Coil Ø mm (in.) | 32 (1.26) |
Tweeter Voice Coil Ø mm (in.) | 20 (0.8) |
Frequency Response Hz | 45 ÷ 25k |
Woofer Magnet size D x d x h mm (in.) | 90 x 40 x 20 (3.54 x 1.57 x 0.79) |
Tweeter Magnet size D x h mm (in.) | 19,7 x 3 (0.78 x 0.12) |
Weight of one speaker kg (lb.) | 5,4 (11.9) |
Woofer Magnet | High density flux ferrite |
Tweeter Magnet | Neodymium |
Cone | Polypropylene with UV inhibitors |
Dome | PEI |
Xmech mm (in.) | ±8,5 (0.33) |
Electro-acoustic Specs | |
D mm | 174 |
Re Ohm | 4,5 |
Fs Hz | 51 |
Le mH | 0,46 |
Vas I | 26,1 |
Mms g | 30 |
Cms mm/N | 0,33 |
BL T*m | 6,33 |
Qts | 0,78 |
Qes | 0,82 |
Qms | 14,7 |
Spl dB | 91 |
