JL AUDIO M600/6-24V

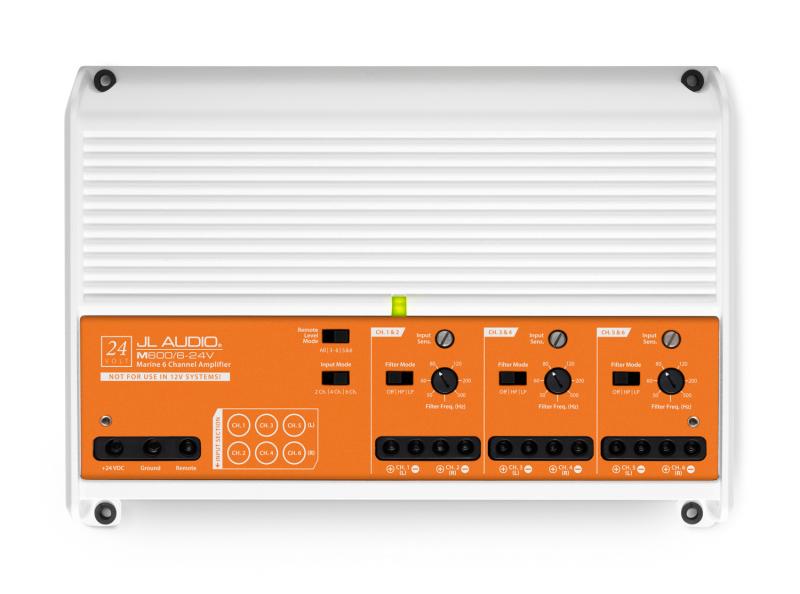

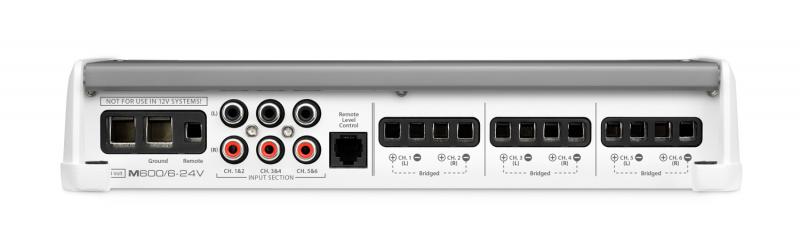

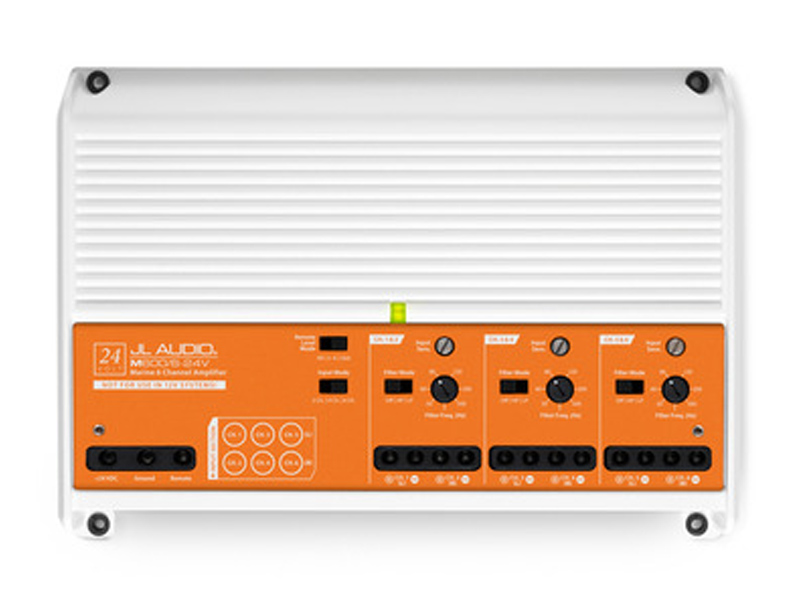

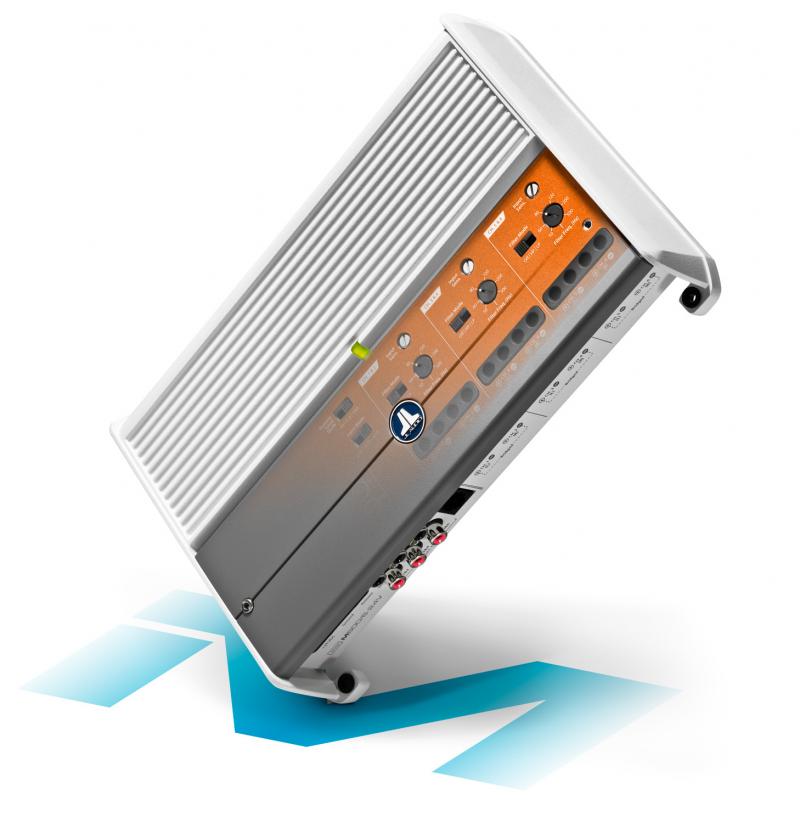

JL Audio 6 Ch. Class D Full-Range Marine Amplifier, 600 W, for 24V Systems - M600/6-24V



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Our Price $1,159.95 CAD
Availability
Schedule Delivery

Literature

For 24V systems only:

6-Channel Class D Marine Full-Range Amplifier, 100 W x 6 @ 2 Ω / 75 W x 6 @ 4 Ω - 28.8V

This incredibly flexible amplifier packs a serious full-range punch, and delivers a staggering 100 watts to each of its six channels into 2 Ω (28.8V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is our NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.

With the M600/6-24V, you have lots of great options. Use it as a six-channel satellite amplifier with 75 W x 4 @ 4 Ω, or bridge four of its channels to create a staggered power four-channel amplifier with 200W x 2 @ 4 Ω to one pair of satellites and 75 W x 2 @ 4 Ω to a secondary pair of satellites. You can also drive two subwoofers with 200 W each, plus a pair of satellites with 75W x 2. The M600/6-24V includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an HD-RLC remote level control (sold separately), you have the ability to control the level of two, four or all six of the amplifier's channel levels from a remote location.

This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.

This amplifier is designed for operation in vessels with 24 volt, negative-ground electrical systems. Use of this product in vessels with positive ground and/or voltages other than 24 V may result in damage to the product and will void the warranty.

Specification

Rated Continuous (RMS) Power @ 28.8 V

  • @ 4 Ω : 75 W RMS x 6
  • @ 2 Ω : 100 W RMS x 6
  • Bridged @ 4Ω : 200 W RMS x 3

Rated Continuous (RMS) Power @ 25 V

  • @ 4 Ω : 60 W RMS x 6
  • @ 2 Ω : 90 W RMS x 6
  • Bridged @ 4Ω : 180 W RMS x 3

General Specifications

  • Frequency Response : 12 Hz - 22 kHz (+0, -1dB)
  • S/N Ratio, referred to highest rated power : >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W : >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Damping Factor @ 4 Ω : >150 / 50 Hz
  • Damping Factor @ 2 Ω : >75 / 50 Hz
  • THD+N @ Rated Power : <1% @ 2 Ω per Ch.
  • Input Voltage Range @ RCA Inputs : 100 mV - 4 V RMS
  • Min.Copper Power / Ground Wire Gauge : 4 AWG wire
  • Fuse Rating : 30 A (AFS, AGU or MaxiFuse™)

Signal Processing

  • Filter Mode(s) : Low-Pass or High-Pass
  • Filter Slope(s) : 12 dB/octave
  • Filter Frequency Range : 50 Hz - 500 Hz
  • Detented, Calibrated Filter Freq. Potentiometers : Yes
  • Filter Defeat Function : Yes
  • Remote Level Control : Optional (HD-RLC)
  • Remote Level Modes : 2 or 4 or All Channels
  • Channel Input Mode Switch : Yes (2/4/6 ch.)
  • Pass-Through Preamp Output : None
  • Source Channel Selection for PreOuts : N/A

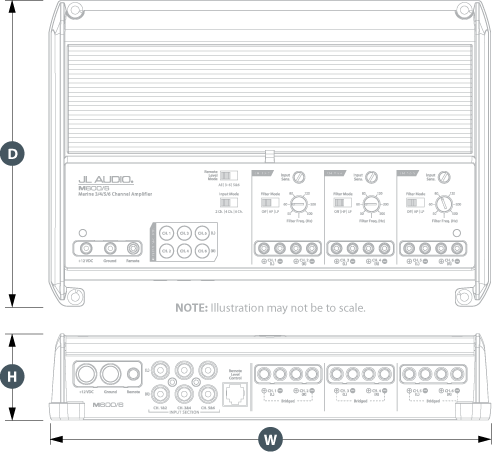

Physical Specifications

  • Height (H) : 2.05 in / 52 mm
  • Width (W) : 10.23 in / 260 mm
  • Depth (D) : 7.09 in / 180 mm
  • Net Weight : 5.8 lb / 2.63 kg
