JL AUDIO M6-770X-C-GwGw

7.7" JL Audio Marine Coaxial Speakers, Gloss White Trim Ring, Gloss White Classic Grille - M6-770X-C-GwGw



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Our Price $1,069.95 CAD
Availability
Schedule Delivery

Literature

M6 7.7-inch Marine Coaxial Speakers (100 W, 4 Ω) - Gloss White Trim Ring, Gloss White Classic Grille

Purpose-engineered and built for real marine duty, M6 coaxial systems deliver maximum audio performance in any open-air boating environment.

The oversized 7.7-inch design of the M6-770X coaxial results in increased efficiency (more output for a given amount of power). Combine that advantage with long excursion and excellent power handling and you have a speaker system truly capable of playing loud and clear in a powerboat at speed.

A 1-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. You will appreciate the clean, articulate high-frequency response of the M6 dome tweeter, especially at higher volume levels.

A true 2-way passive crossover network is built into the terminal assembly to protect it from vibration and corrosion.

Although M6-770X Coaxial Systems can be used with as little as 40 W per channel, for best audio performance we recommend amplifiers capable of between 40-200 W of continuous power per channel.

Sold as a pair.

Specification

General Specifications

  • Continuous Power Handling (RMS) : 100 W
  • Peak Music Power : 200 W
  • Recommended Amplifier Power (RMS) : 40 - 200 W / Ch.
  • System Efficiency : 91.0 dB @ 1 W / 1 m
  • System Nominal Impedance : 4 Ω
  • System Frequency Response : 45 Hz - 25 KHz ± 3 dB

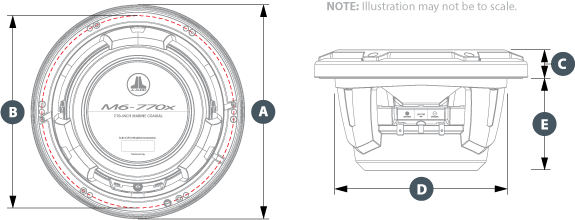

Coaxial Physical Specifications

  • Frame Outer Diameter (A) : 7.70 in / 196 mm
  • Bolt Hole Circle Diameter (B) : 6.92 in / 176 mm
  • Frontal Grille Protrusion* (C) : 1.03 in. / 26 mm
  • Mounting Hole Diameter (D) : 6.25 in / 159 mm
  • Mounting Depth (E) : 3.32 in. / 84 mm
