Many of the world's most recognized brands including Ron Jon Surf Shop and Bloomingdale's use our commercial speakers to create unique memorable experiences for their customers. Do the same for your business with our top-of-the-line IC-650-T 70-volt speaker.

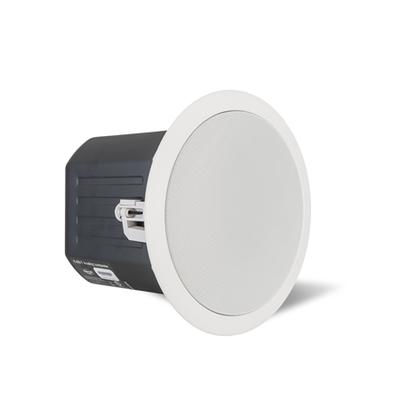

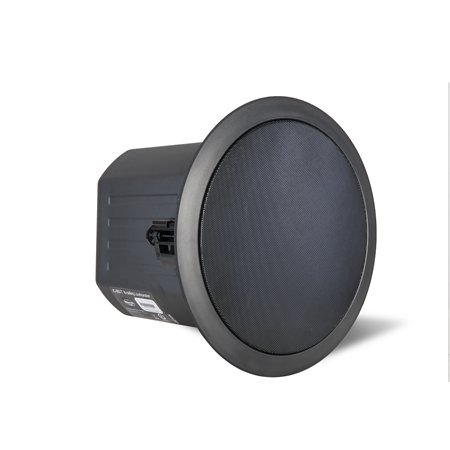

The IC-650-T packs proven materials and wide dispersion horn technology into an installer-friendly UL-certified (2043 and 1480) in-ceiling speaker with an integrated back can and multi-tap transformer.

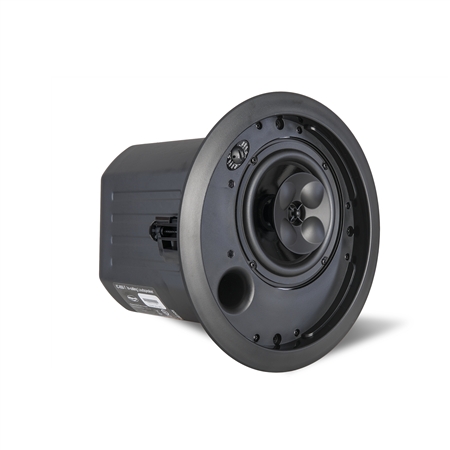

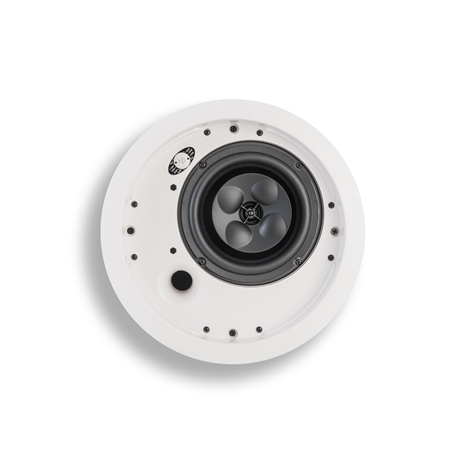

A two-way design the speaker features a 6.5-inch woofer and 1-inch titanium diaphragm compression driver mated to a round Tractrix® Horn with XT technology for smooth response with constant directivity. The 1-inch Tractrix port provides deeper fuller bass with less compression and distortion.
For distributed line applications the IC-650-T features a 70/100 volt multi-tap transformer. A single rotary switch for the 4-ohm bypass and multi-tap setting is conveniently located on the front baffle.
The speaker's included tile bridge allows for easy installation in a suspended ceiling or wherever additional reinforcement of the ceiling material is required. A mudring kit (part # 1010414) can be purchased separately to further simplify drywall installations.
|FREQUENCY RESPONSE:||50-20k Hz +/- 4dB|
|SENSITIVITY:||90dB 2.83 V/1M|
|POWER HANDLING:||80 watts (18.8 V) cont.|
|MAXIMUM ACOUSTIC OUTPUT:||106dB @ 1M|
|NOMINAL IMPEDANCE:||8 ohms, min 4.4 ohms; switch set in 8 ohm position|
|ENCLOSURE TUNING:||Vented via a 1" Tractrix port|
|INPUT CONNECTIONS:||Terminal Strip|
|COVERAGE ANGLE:||105 degrees|
|CUTOUT DIMENSIONS:||10.125" (25.72 cm) diameter|
|OVERALL DEPTH:||10.313" (26.20 cm)|
|MOUNTING DEPTH:||10.125" (25.72 cm)|
|OVERALL WIDTH:||11.75 (29.85 cm) diameter|
|THRU HOLE WIDTH:||10" (25.40 cm) diameter|

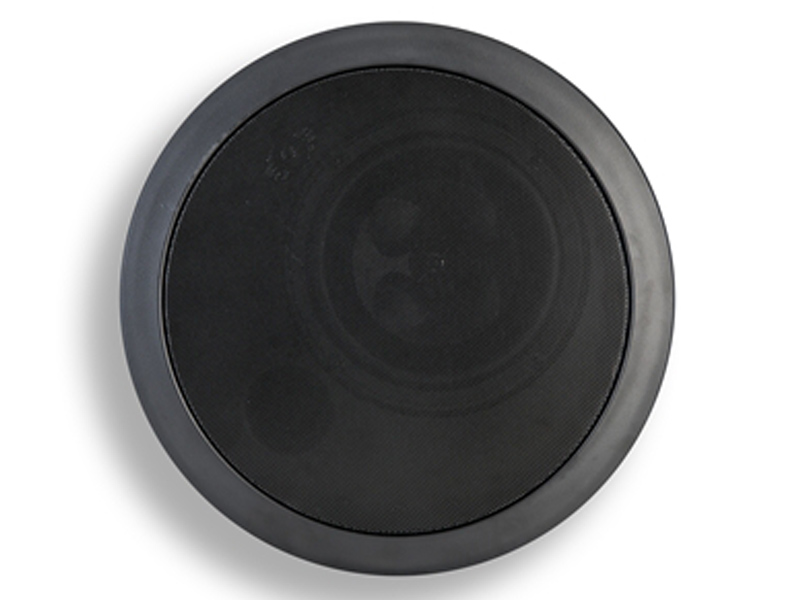

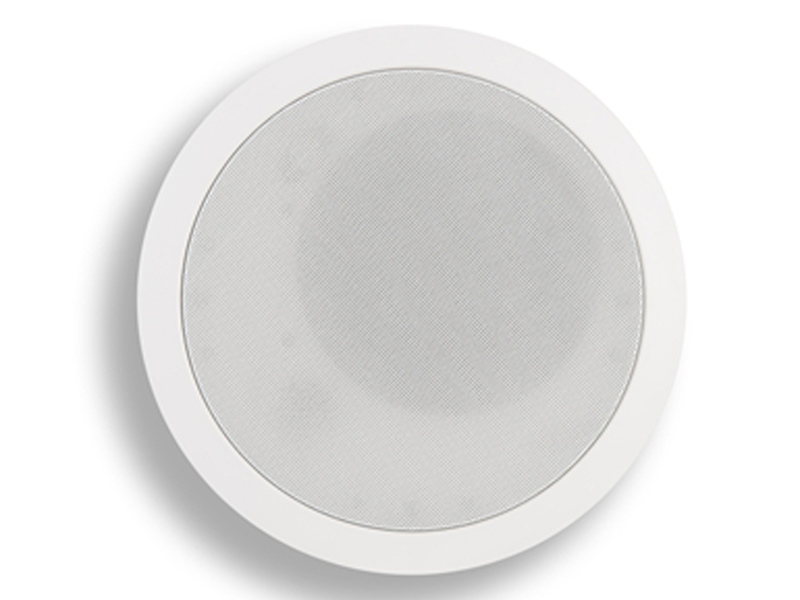

|FINISHES:||Black and white|
|TRANSDUCERS:||6.5" woofer, 1" titanium diaphragm compression driver on a 3.5" round XT modified Tractrix Horn|
|TRANSFORMER TAPS:||70V: 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 15W|
