Inside or out, the 70-volt Klipsch CA-650T compact full-range loudspeaker delivers superior sound from a durable and flexible package. Perfect for foreground or background distributed sound applications in residential commercial or recreational environments, this model provides big time sound and worry-free performances.
Building on the success of our popular CA-6T model the new CA-650T version features enhanced cosmetics added mounting flexibility and even better performance.

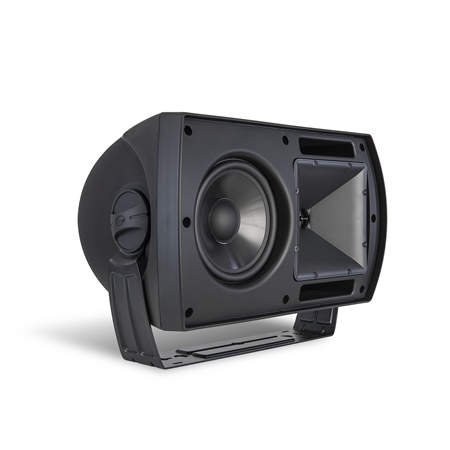

For efficiency and reliability the CA-650T has been re-voiced and employs a high-power extended range low frequency driver. It features a 6.5-inch IMG cone woofer and 1-inch titanium dome tweeter coupled to a square-mouth 90-degree by 90-degree Tractrix® Horn which allows the speaker to be mounted horizontally or vertically without affecting the coverage pattern.
Available in black or white this speaker has a durable UV-resistant all-weather enclosure that includes an internal multi-tap transformer with expanded range and a switchable direct 8-ohm bypass. The tap settings for the CA-650T at 70V are 60W 30W 15W 7.5W and 3.7W. The added 3.7W tap setting offers further placement flexibility. The settings for 100V are 60W 30W 15W and 7.5W.
The included heavy gauge zinc C-bracket provides added mounting strength. It attaches to the enclosure's integral "center-of-gravity balanced" threaded studs that are positioned inside the speaker and to the oversized knobs ensuring positive position-lock.

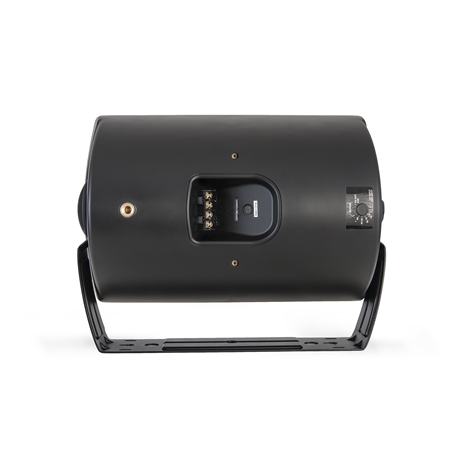

Connections are provided via four-position barrier strips. This allows an installer to use two connectors for inputs and two for pass-throughs making it easier to daisy chain.

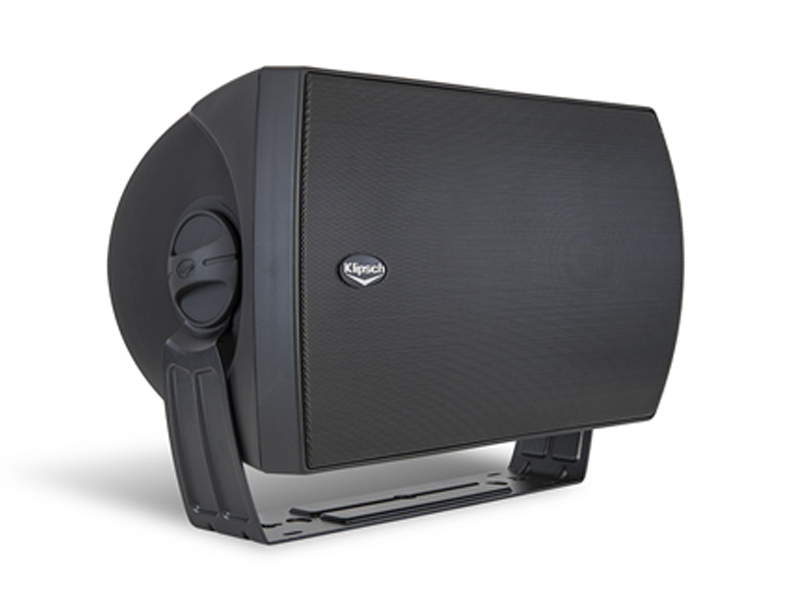

The CA-650T's updated grille design stays securely fastened and incorporates a new paint formulation for increased weather resistance and years of maintenance-free protection regardless of the climate or environment.
The speaker's improved input cup allows for easier drainage and the added 3/8"-16 threaded insert for use with optional mounts offers better placement flexibility.
|FREQUENCY RESPONSE:||69Hz-20kHz 4 dB|
|POWER HANDLING:||85W (19V)|
|MAX CONTINUOUS OUTPUT:||111 dB|
|NOMINAL IMPEDANCE:||8 Ohms (4.1 min @ 15kHz)|
|TWEETER:||One K-150-A 1", titanuim diaphragm compression driver|
|WOOFER:||One K-1182-A 6.5" woofer, IMG Cone|
|CROSSOVER FREQUENCY:||1900 Hz|
|MATERIAL:||All-weather ABS Plastic paintable to match décor|
|ENCLOSURE ENCLOSURE TYPE:||Vented System via port|
|INPUT CONNECTIONS:||4 pt terminal strip|
|COVERAGE ANGLE:||Horizontal: 80 40 1.4kHz-20kHz Vertical: 90 30 1.4kHz-18kHz|
|DIRECTIVITY INDEX:||7 2.5dB 1kHz-20kHz|
|DIMENSIONS:||9.5" (24.13 cm) H x 15.188" (38.558 cm) W x 10.875" (27.623 cm) D|
|TRANSFORMER TAPS:||60W, 30W, 15W, 7.5W, 3.75W|
