Rockford Fosgate T1D415

Rockford Fosgate Power T1 4-Ohm DVC Subwoofer - T1D415



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Price$1,289.99
Savings$200.00
Our Price $1,089.99 CAD
Sale Ends : April 30, 2025
On Sale
Buy Online
Availability
Schedule Delivery

Literature

Innovative technologies allow the T1D415 subwoofer to perform like a larger woofer over the previous model. The T1 15” features dual 4-Ohm voice coils, 1,000 Watts RMS power handling, and includes a grille with integral trim ring.

Overview

The Power Series T1D415 Dual 4-Ohm subwoofer builds on innovative new Rockford Fosgate technologies. These bad boys have patented VAST technology that increases surface cone area up to 25%. The new FlexFit basket not only looks the part but it provides extreme flexibility for extreme installations. Clean, high tech and ready to set off car alarms, the T1D415 is here!

  • Symmetrical dual progressive roll tear resistant poly-cotton spiders
  • Periodic-stitched fatigue resistant tinsel lead wire
  • Proprietary 8 AWG insulated allmetal input spring terminal connection
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Optimized and matched magnetic and complicance geometry
  • Anodized aluminum heat sinking dust cap
  • Kevlar fiber reinforced paper cone
  • Rigid die-cast aluminum basket
  • Optimized pole piece and spider venting
  • Anodized aluminum voice coil former / copper clad aluminum wire
  • 1 Year Warranty

Technologies

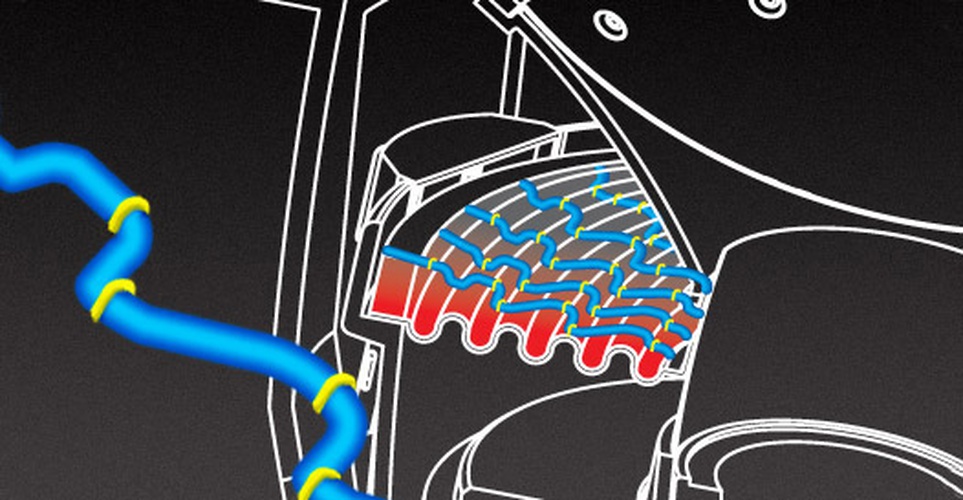

Stitched Tinsel Leads

Improved reliability and performance by reducing fatigue and possible shorting.

CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

VAST Surround - Subs

The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.

Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

Anodized Aluminum Voice Coil Former

Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.

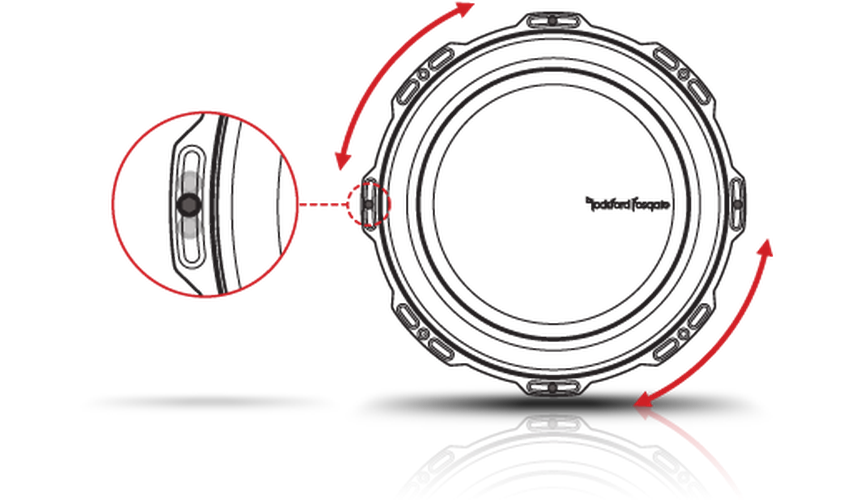

FlexFit Basket - Subwoofer

The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.

SWIFT™ Terminals

Allows the voice coils to quickly be configured in a Series or Parallel wiring configuration.

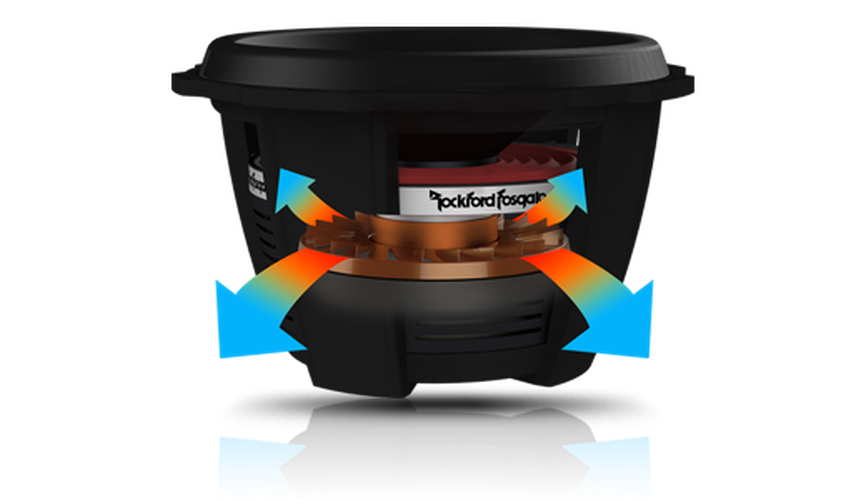

Inductive Damping Heat Sink

Secures directly to the top of magnet structure to improve system efficiency by reducing both distortion and back EMF (Electo-Magnetic force). Also radiates heat to reduce voice coil temperature.

Specifications
Size15"
Nominal ImpedanceDual 4-Ohm
Power Handling (Watts RMS)1000 Watts RMS
2000 Watts Max
Magnet Weight (oz)229 oz. (6.49 kg)
Voice Coil Diameter3.0" (75.5 mm)
Mounting Depth8.39 in. (213 mm)
Fs (Hz)27
Qts0.51
Qms6.00
Cutout Diameter13.9375 in. (354 mm)
Woofer Displacement0.191 cu. ft. (5.4 Liters)
Le (mH)3.6
Speaker ConnectorCompression Terminal
Shipping Weight54.1 Lbs. (24.53 Kg.)
SPL (dB @ 1w/1m)87.5
Qes0.55
Vas (Liters)102.0
Xmax (mm)16.4
Re (Ohms)6.50
Sd (cm2)845
Subwoofer TypeStandard
Voice Coil TypeDual Voice Coil
Sealed Box Volume (Vb)2.25 cu. ft. (63.7 Liters)
Vented Box Volume (Vb)2.66 cu. ft. (75.3 Liters)
