Rockford Fosgate 1 Inch Punch Series Tweeter Kit - P1T-S
You may also like
The Punch P1T-S is a 1” PEI dome tweeter kit designed for natural sound reproduction rated at 60 Watts RMS. The kit includes high-pass crossovers, mounting hardware and three bezels for flush, surface and angle configurations.
Thanks! You're on the list!
Overview
Car audio fanatics will love the Punch series tweeter kit. It features a 1" (25mm) PEI dome, cool looking outboard crossover, and 3 mounting bezels to accomodate various installations.
- Recessed tweeter mount uses standard 1-3/4" hole saw
- Butyl midrange rubber surround
- 1 Year Warranty
Technologies
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
Klippel is a speaker certification program allowing us to deliver the best possible speakers.

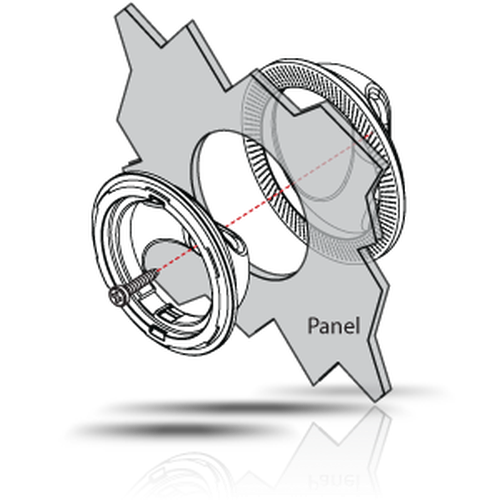

Our DDC™ (Discreet Dual Clamp) Tweeter Mounting provides concentric clamping pressure around the perimeter of the mounting hole. This results in maximum ease of installation.
| Specifications | |
|---|---|
| Nominal Impedance (Ohms) | 4-Ohm |
| Midrange Mounting Diameter | — |
| Tweeter Size (Nominal Diameter) | 1.0" (25.4 mm) |
| Speaker Type | Tweeter |
| Midrange Mounting Depth | — |
| Frequency Response (Hz) | 3.5kHz - 22kHz |
| Power Handling (RMS) | 60 Watts RMS 120 Watts Max |
| Crossover | High-Pass (HP): 3.5KHz @ 12dB/octave Butterworth |
| Sensitivity (dB @ 1W/1M) | 90 |
| Grille/Trim Ring Included | Yes |
| Mounting Hardware | Yes |
| Tweeter Mounting Depth | 0.50" (13 mm) |
| Shipping Weight | 1.2 Lbs. (0.54 kg.) |
| Midrange Size (Nominal Diameter) | — |
