Rockford Fosgate P1S4-10

Rockford Fosgate Punch P1 10 Inch 4-Ohm SVC Subwoofer - P1S4-10



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Our Price $179.99 CAD
Buy Online
Availability
Schedule Delivery

Literature

Rockford Fosgate P1 10” is the first in a family of famous “Punch” subwoofers. The P1S4-10 features a 4-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring.

Overview

Rockford Fosgate P1 10" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS tri trim ring.

  • Linear spider with embedded 16 AWG tinsel leads
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Kevlar fiber reinforced paper cone
  • StampCast basket with integrated spider venting
  • Rubberized ABS trim ring with optional grille
  • Custom 10-AWG nickel plated push terminals
  • Extended pole piece and bumped vented backplate
  • Protective PVC textured magnet cover
  • 1 Year Warranty

Technologies

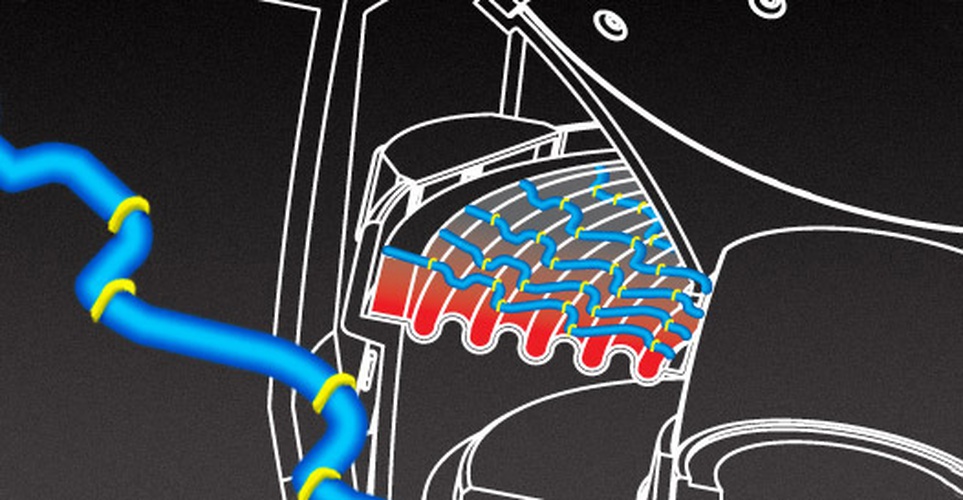

Stitched Tinsel Leads

Improved reliability and performance by reducing fatigue and possible shorting.

CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

FlexFit Basket - Subwoofer

The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.

Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

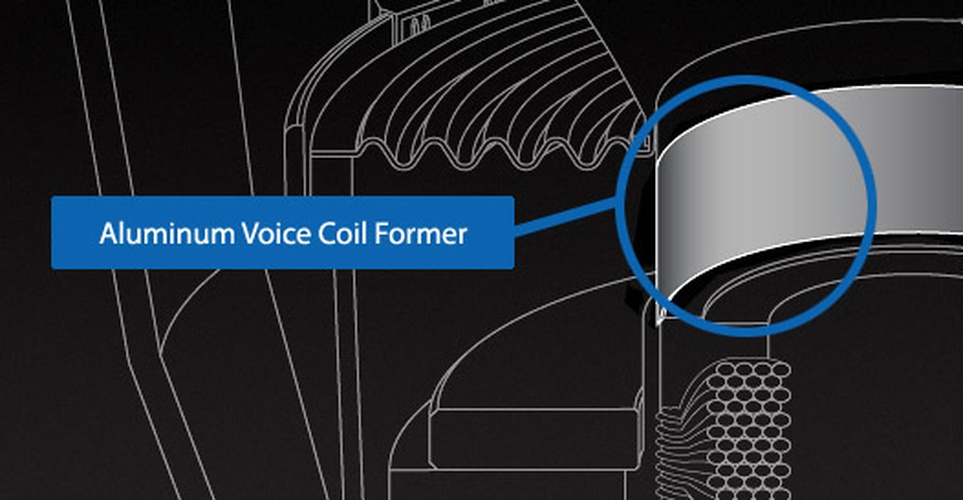

Anodized Aluminum Voice Coil Former

Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.

Specifications
Magnet Weight (oz)45 oz. (1.28 kg.)
Voice Coil Diameter2.0" (51.6 mm)
Speaker ConnectorDual 10 AWG compression
Mounting Depth5.33 in. (135.4 mm)
SPL (dB @ 1w/1m)85
Fs (Hz)30
Qts0.52
Qes0.61
Qms3.00
Vas (Liters)40
Cutout Diameter9.14 in. (232 mm)
Woofer Displacement0.056 cu. ft. (1.6 Liters)
Re (Ohms)3.6
Size10"
Nominal Impedance4-Ohm
Shipping Weight10.9 Lbs. (4.94 kg)
Xmax (mm)9.0
Power Handling (Watts RMS)250 Watts RMS
500 Watts Max
Le (mH)2.81
Sd (cm2)370
Subwoofer TypeStandard
Voice Coil TypeSingle Voice Coil
Sealed Box Volume (Vb)0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb)1.4 cu. ft. (39.6 Liters)
