Rockford Fosgate P2D4-15

Rockford Fosgate Punch P2 15 Inch 4-Ohm DVC Subwoofer - P2D4-15



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Price$399.99
Savings$60.00
Our Price $339.99 CAD
Sale Ends : April 30, 2025
On Sale
Buy Online
Availability
Schedule Delivery

Literature

The Rockford Fosgate P2 15” subwoofer continues “The PUNCH” tradition. The P2D4-15 features a Dual 4-Ohm voice coil, 400 Watts RMS power handling, and can accommodate a grille insert using the included cast aluminum trim ring.

Overview

Rockford Fosgate has always been known as "The PUNCH" and the P2 15" subwoofer certainly continues with the tradition. Kevlar fiber reinforced paper cones deliver bass impact you can feel along with VAST technology to increase surface cone area up to 25%. The P2 subwoofers perform best in standard sealed and vented enclosures. Includes diamond cut cast aluminum trim ring. Optional grille insert available.

  • Dual linear spider with embedded 16 AWG tinsel leads
  • Custom 10-AWG nickel plated push terminals
  • Extended pole piece and bumped vented backplate
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Protective PVC textured magnet cover
  • Kevlar fiber reinforced paper cone
  • StampCast basket with integrated spider venting
  • Diamond cut cast aluminum trim ring with optional grille
  • 1 Year Warranty

Technologies

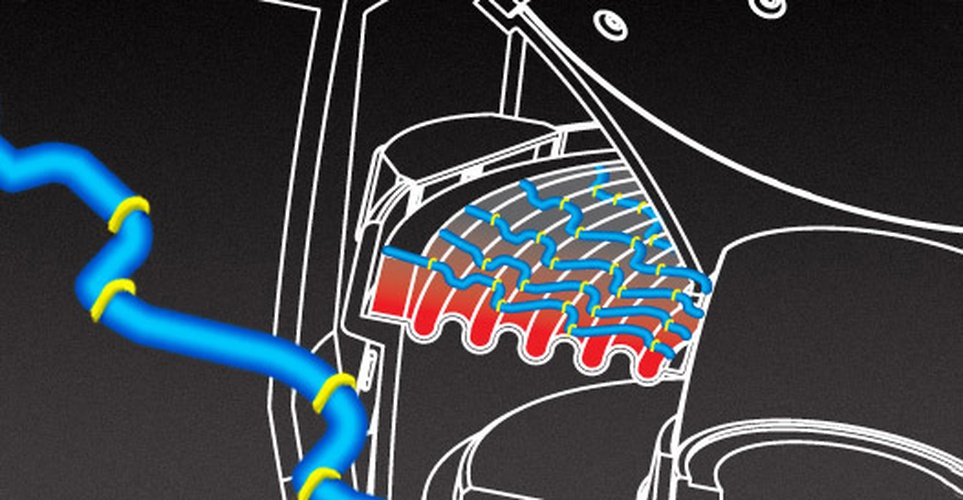

Stitched Tinsel Leads

Improved reliability and performance by reducing fatigue and possible shorting.

CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

VAST Surround - Subs

The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.

Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

Anodized Aluminum Voice Coil Former

Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.

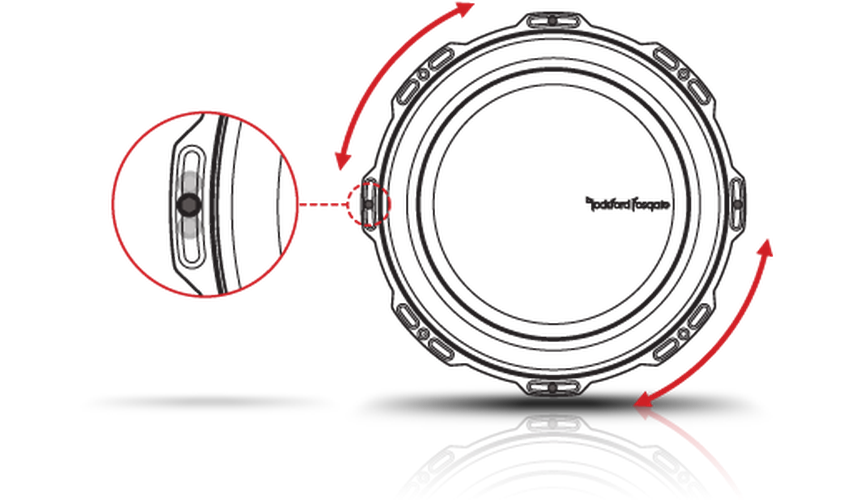

FlexFit Basket - Subwoofer

The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.

Specifications
Size15"
Power Handling (Watts RMS)400 Watts RMS
800 Watts Max
Speaker ConnectorDual 10 AWG compression
Shipping Weight17.9 Lbs. (8.11 kg)
SPL (dB @ 1w/1m)86
Cutout Diameter13.9 in. (353 mm)
Re (Ohms)6.40
Le (mH)5.4
Nominal ImpedanceDual 4-Ohm
Magnet Weight (oz)81 oz. (2.30 kg.)
Voice Coil Diameter2.25" (57.15 mm)
Mounting Depth7.34 in. (186.5 mm)
Fs (Hz)20.9
Qts0.66
Qes0.74
Qms5.70
Vas (Liters)219.6
Woofer Displacement0.134 cu. ft. (3.8 Liters)
Xmax (mm)12.2
Sd (cm2)894
Subwoofer TypeStandard
Voice Coil TypeDual Voice Coil
Sealed Box Volume (Vb)1.58 cu. ft. (44.7 Liters)
Vented Box Volume (Vb)2.66 cu. ft. (75.3 Liters)
