Rockford Fosgate P3SD4-8

Rockford Fosgate Punch P3S 8 Inch Shallow 4-Ohm DVC Subwoofer - P3SD4-8



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Price$319.99
Savings$50.00
Our Price $269.99 CAD
Sale Ends : April 30, 2025
On Sale
Buy Online
Availability
Schedule Delivery

Literature

Rockford Fosgate P3S 8" shallow mount subwoofer delivers “Punch” even when depth is limited. The P3SD4-8 features Dual 4-Ohm voice coils for wiring flexibility and 150 Watts RMS power handling.

Overview

The Rockford Fosgate P3S 8" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.

  • M-Roll Santoprene™ surround
  • StampCast basket with integrated spider venting
  • Anodized aluminum cone and dustcap
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Diamond cut cast aluminum trim ring with optional grille
  • Shallow Motor Assembly
  • Optimized for both sealed and vented enclosures
  • 1 Year Warranty

Technologies

Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

Anodized Aluminum Voice Coil Former

Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.

Stitched Tinsel Leads

Improved reliability and performance by reducing fatigue and possible shorting.

VAST Surround - Subs

The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.

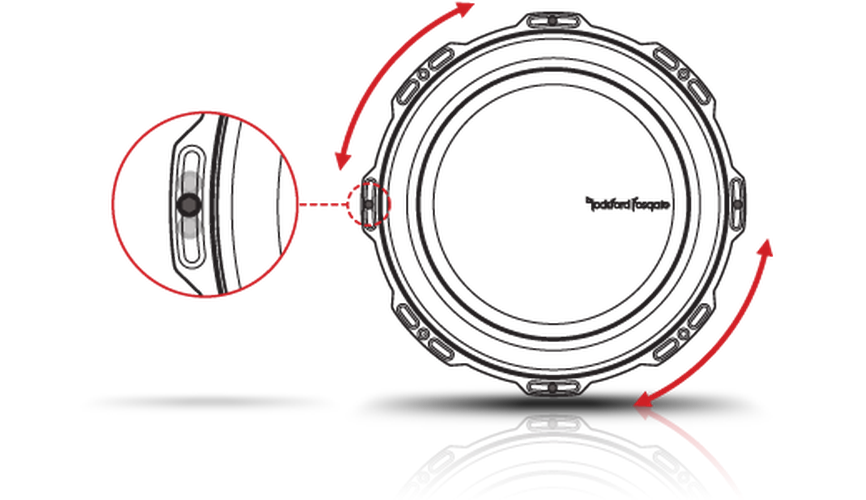

FlexFit Basket - Subwoofer

The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.

Specifications
Nominal ImpedanceDual 4-Ohm
Power Handling (Watts RMS)150 Watts RMS
300 Watts Max
Magnet Weight (oz)37.5 oz. (1.06 Kg)
Voice Coil Diameter2" (51.6 mm)
SPL (dB @ 1w/1m)82
Qes1.05
Vas (Liters)15.8
Cutout Diameter7.13 in. (181.0 mm)
Size8"
Speaker ConnectorDual 10 AWG Compression
Mounting Depth2.66 in. (67.5 mm)
Shipping Weight8.8 Lbs. (3.99 Kg.)
Fs (Hz)39
Qts0.87
Qms5
Xmax (mm)8.5
Woofer Displacement0.040 cu. ft. (1.13 Liters)
Re (Ohms)6.0
Le (mH)1.46
Sd (cm2)220
Subwoofer TypeShallow
Voice Coil TypeDual Voice Coil
Sealed Box Volume (Vb)0.25 cu. ft. (7.0 Liters)
Vented Box Volume (Vb)0.75 cu. ft. (21.2 Liters)
