Sony XMGS6DSP

Sony 6/5 Channel Class-D Amplifier with DSP - XMGS6DSP



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Our Price $529.99 CAD
Sale Ends : March 31, 2025
On Sale
Buy Online
Availability
Schedule Delivery

Literature

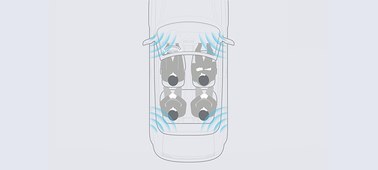

Time Alignment optimises sound for every seat

Wherever you sit in your car, you’ll be closer to some speakers than others, which affects how the music sounds. Time Alignment re-calibrates the signal so you’re always in the correct sound field for a more natural listening experience.

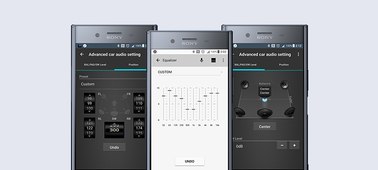

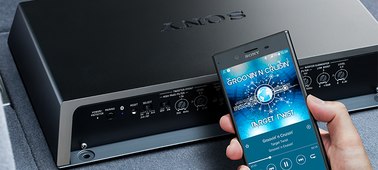

Customization at your fingertips

Pair your smartphone with the XM-GS6DSP and take charge of the sound . Adjust equaliser and speaker settings, volume levels and fader controls from the comfort of your seat with a simple touch of your smartphone screen.

Stream the music you love

Unleash your tracks and playlists. Stream music to your car stereo from all of your favourite apps with BLUETOOTH® wireless connection.

Power meets precision

With 6 channels of class-D amplification, the XM-GS6DSP drives a variety of speaker configurations. Fill your car with 45 W x 4 (4 Ω) of clean and dynamic sound plus 600 W (2 Ω bridged) of subwoofer power. All from a compact amp, with minimal interference for audio that’s crystal clear, even at its loudest.

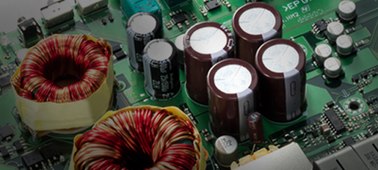

Premium components

High quality electrolytic capacitors at power input and output stages provide responsive bass. Premium inductors with low resistance OFC wire cut RF noise for a rich, lively sound.

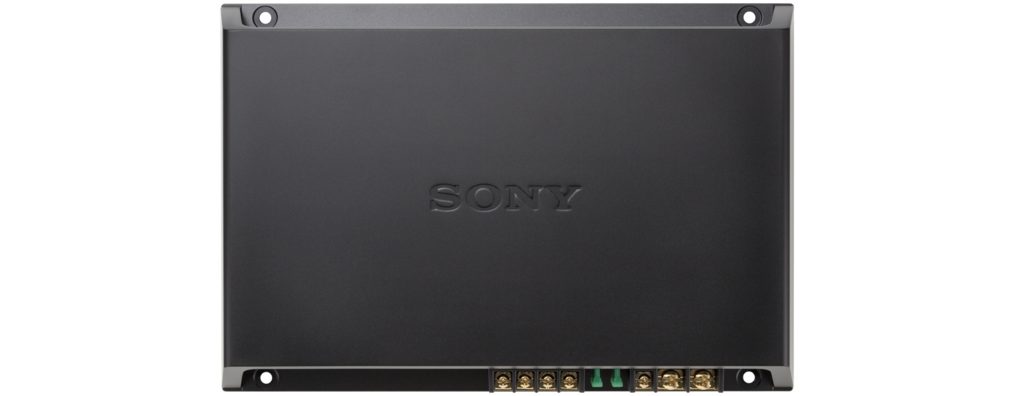

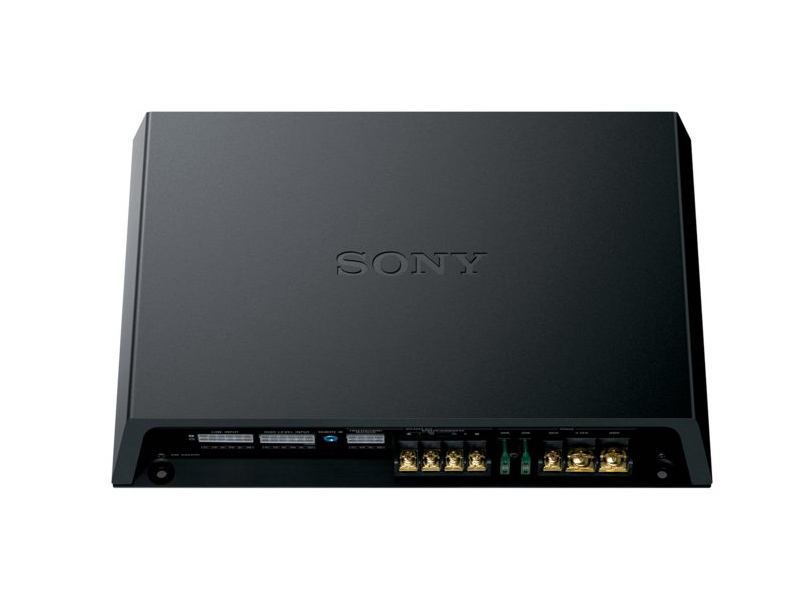

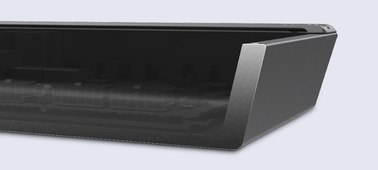

Heavy-duty aluminium case

A sturdy, heat sink-integrated aluminium case protects the amp during your drive, preventing unwanted vibrations so music stays stable and true.

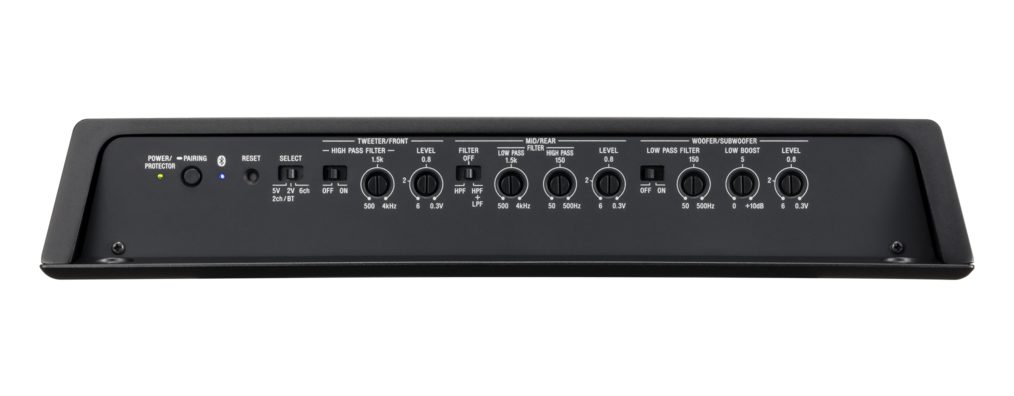

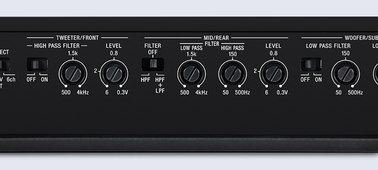

Low and high pass filters

Highly customisable low and high pass filters can be applied across the system, allowing you to drive component high-frequency tweeters and subwoofers, plus everything in between, all from the same amp.

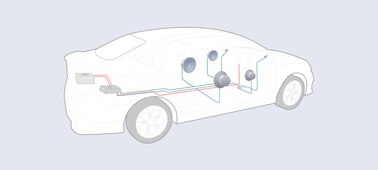

Precision meets versatility

Install your amp under a seat or in the boot, then connect to your existing car radio. Select from a variety of speaker configurations to complete your new audio system, with easy set up to drive subwoofers and component speakers, as well as regular coaxial speakers.

Size & Weight
Dimensions (W x H x D)295 mm x 51 mm x 199.5 mm
Weight2.7 kg (Approx.)
Amplifier
Channel Configuration4.1-ch, 6-ch
High Pass FilterVariable: FRONT (500-4 kHz), REAR (50-500 Hz)
High-Pass Filter Slope12dB/oct
Low Pass FilterVariable: REAR(500-4 kHz), SUBWOOFER(50-500 Hz)
Low-Pass Filter Slope12dB/oct
CTA Rated Output Power
4 ohms45 W×4 (FRONT/REAR), 90 W×2 (SUBWOOFER)
4 ohms — BTL (Bridge-tied Load)350 W (SUBWOOFER) at 1 kHz
2 ohms175 W×2 (SUB) at 1 kHz, 600 W×1 (SUBWOOFER Bridged ) at 1 kHz
Rated Output Power (14.4V, 20Hz-20kHz)
4 ohms45 W×4 (FRONT/REAR), 90 W×2(SUBWOOFER)
4 ohms — BTL (Bridge-tied Load)350 W (SUBWOOFER) at 1 kHz
2 ohms175 W×2 (SUBWOOFER) at 1 kHz, 600 W×1 (SUBWOOFER Bridged) at 1 kHz
Maximum Output Power (1 kHz)
Max. Channel Configuration at 4 ohms BTL (Bridge-Tied Load)600 W (SUB)
Max. Channel Power Configuration at 2 ohms300 W×2 (SUB), 1100 W×1 (SUBWOOFER Bridged)
Max. Channel Output Power Configuration at 4 ohm100 W×4 (FRONT/REAR), 200 W×2 (SUBWOOFER)
General Features
Frequency Response20-20 kHz (FRONT/REAR) 20-10 kHz (SUBWOOFER)
Tolerance+0.5/-3dB
Signal to Noise RatioRated Output:100 dB/CTA Rated Output:83 dBA(FRONT/REAR), 80 dBA(SUBWOOFER)
Total Harmonic Distortion at 1 kHz (%)Less than 0.08%
DETAILS

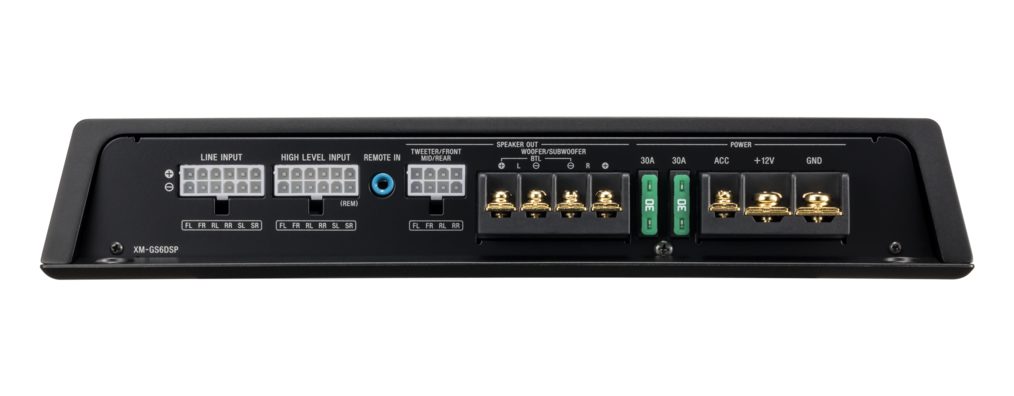

InputLine In/High Level (Speaker Level) Input
MOSFETOutput Stage/Power Supply
Subsonic High Pass Filter No
Bass Boost: Frequency (0 - 10 dB)Yes
Line In: Input Sensitivity0.3-6 V (6ch Input mode only)
Gold Plated ConnectorsYes
Current drain (A) - rated output power at 4 ohm36 A
DSP Functions with Sony l Music Center App
Time AlignmentYes (4.1ch)
EqualizerYes (10-band)
Balance/FaderYes
Bluetooth® Specifications
Version3.0
Secure Simple PairingYes
ProfileA2DP, AVRCP
Bluetooth® General Features
Voice ControlNo
MicrophoneNo
Device NameXM-GS6DSP
Auto-pairing for iOS DevicesNo
Sony | Music Center (iOS)Yes
Sony | Music Center (Android)Yes
Siri Eyes Free ModeNo
