Sony XS690ES

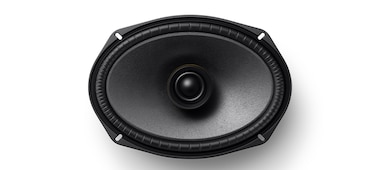

Sony 6 x 9 Inch Mobile ES 2-way Coaxial Speaker - XS690ES



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Price$649.99
Savings$100.00
Our Price $549.99 CAD
Sale Ends : December 19, 2024
On Sale
Availability
Schedule Delivery

Literature

MRC Aramid-Fibre Matrix Woofer

The main speaker diaphragm on the XS-690ES is crafted from Sony’s unique Mica Reinforced Cellular (MRC) material. This rigid but lightweight driver allows for a much more precise response than conventional driver materials, for smoother and more natural sound characteristics.

Optimal formulation

Embedding MRC in a unique matrix with aramid fibres suppresses diaphragm resonance and minimizes distortion—not only in the lows, but also in the mid and higher frequencies. The result is sound that is powerful at all frequencies and uncommonly clean—even at high volume.

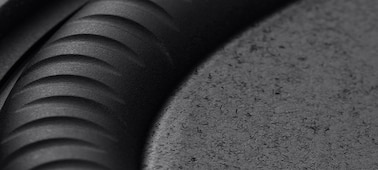

Separated Notch Edge Surround

The woofer surround features another proprietary Sony technology, with distinctive curved notches improving the vertical amplitude symmetry, for dramatically reduced distortion and enhanced clarity.

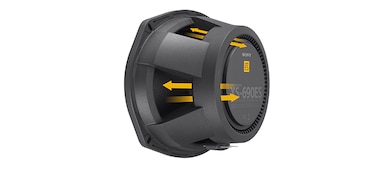

Five-beam Frame Structure and Dynamic Air Diffuser

The Five-beam Frame design disperses resonance while the integrated Dynamic Air Diffuser ensures efficient air circulation for smooth cone travel and cooling of the voice coil.

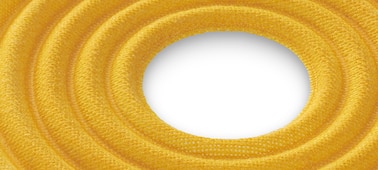

Progressive Height Rate Spider

The acoustically optimized spider allows for higher power handling and airflow, with a profile designed for more rapid and precise cushioning of the speaker cone.

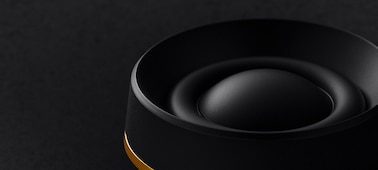

Tweeter to hit the high notes

Compatible with High-Resolution Audio, a soft-dome tweeter diaphragm is directly attached on the voice coil, designed to cover your music’s ultra-high ends, with a frequency range extending up to 40 kHz.

Size & Weight
Weight1,450 g
Speaker System
ConfigurationCoaxial, two-way
Size6 x 9 in (16 x 24 cm)
General Features
Peak Power330 W
RMS Power110 W
Rated power90 W
Effective Frequency Range35–40,000 Hz
Output Sound Pressure90 dB ±2 dB SPL (1 W, 1 m)
Impedance (ohms)4
Woofer
TypeCone
Surround MaterialRubber (Separated Notch)
Woofer Magnet MaterialFerrite
Woofer Diaphragm MaterialMRC Aramid Fibre Matrix
Tweeter
TypeSoft Dome
Diameter1 in (2.5 cm)
Tweeter Diaphragm MaterialSynthetic Fibre
Tweeter Magnet MaterialNeodymium
