Sony XMGS100
Sony Class D Monaural Power Amplifier - XMGS100


Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Price$449.99
Savings$50.00
Our Price $399.99 CAD
Sale Ends : December 31, 2022
On Sale
Buy Online
Availability
Schedule Delivery

Literature

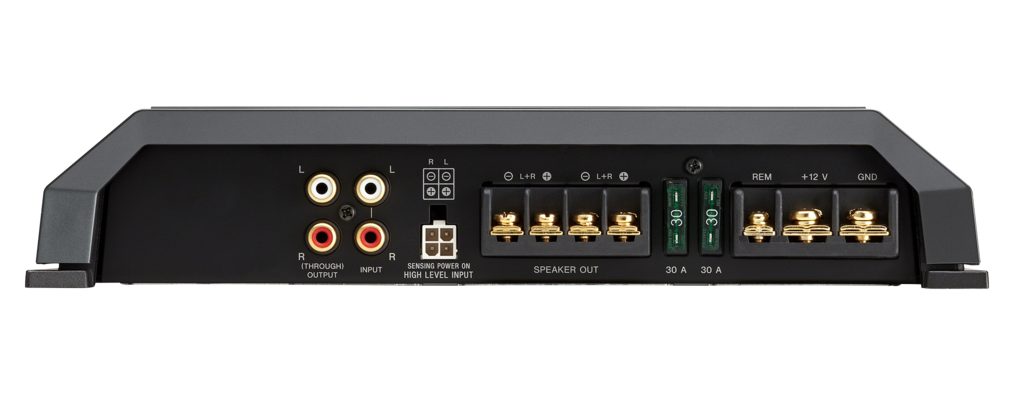

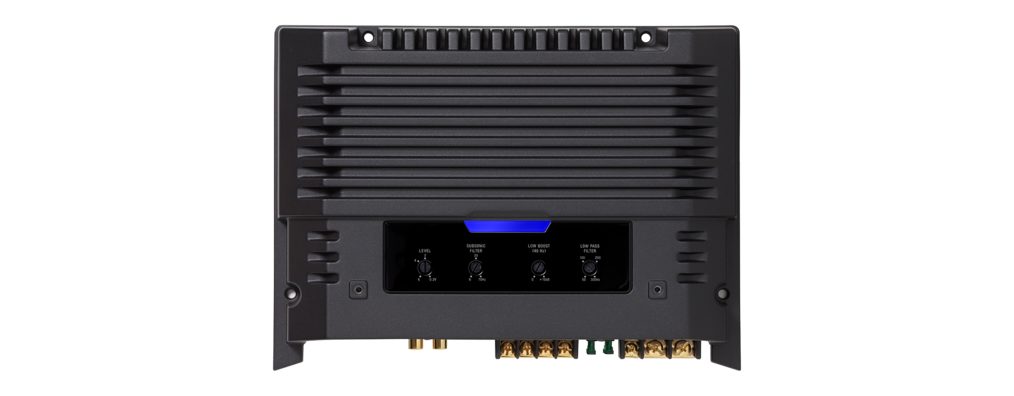

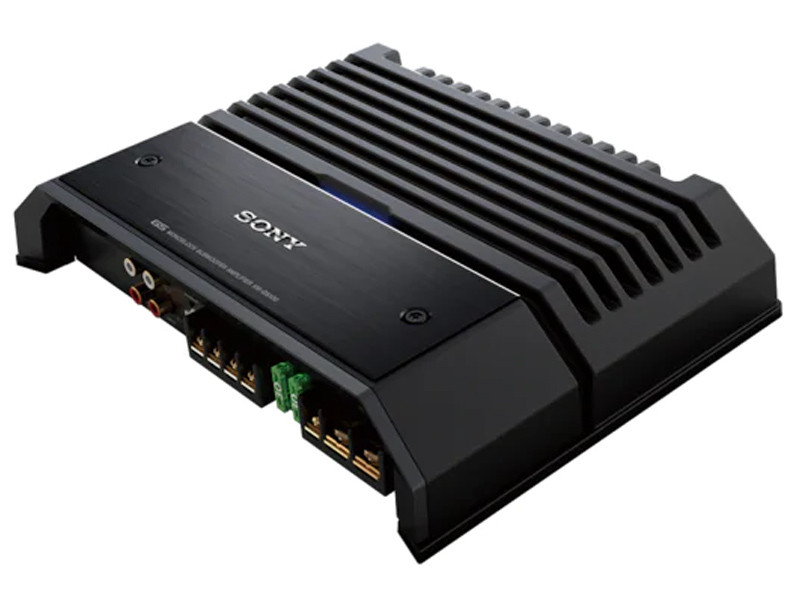

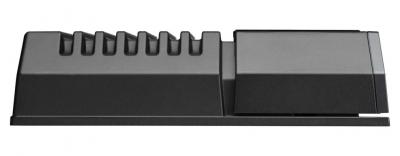

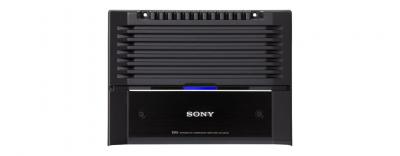

Sony Class D Monaural Power Amplifier - XMGS100

Size & Weight
Dimensions (W x H x D)272 x 51 x 202 mm
Weight2.5 kg
Amplifier
Channel ConfigurationMono
Low Pass Filter50-300Hz
Low-Pass Filter Slope12dB/oct
Rated Output Power, RMS 20 - 20000 Hz
Max. Channel Configuration at 4 ohm (W) / THD (%)330W x 1 / 1.0% (20-200Hz)
Max. Channel Configuration at 2 ohm (W) / THD (%)600W x 1 / 1.0% (50Hz)
Maximum Output Power (1 kHz)
Max. Channel Power Configuration at 4 ohm600W x 1
Max. Channel Power Configuration at 2 ohms1100W x 1
General Features
Frequency Response10-300Hz
Tolerance+0.5/-3dB
Signal to Noise Ratio100dB
Total Harmonic Distortion0.1% (50Hz)
DETAILS
CEA Power output330W x 1
CEA SN Ratio65dBA
Load Capability (ohm)NO / YES
MOSFETYES
Subsonic High Pass FilterYES
Bass Boost: Frequency (0 - 10 dB)40Hz
Speaker Level InputYES
Line In: Input Sensitivity0.3-6
Gold Plated ConnectorsYES
Current drain (A) - rated output power at 4 ohm30A
Line OutYES (Through)
