Hertz 1.8" NEO SPL Show Series Component Bullet Tweeters - ST35ANEO
WAS $629.99
$529.99
OR
$132.50
In 4 installments with
Sale Ends : March 31, 2027
On Sale
Literature
You may also like
WAS
$1,069.99
$899.99
WAS
$269.99
$199.99
WAS
$649.99
$549.99
WAS
$179.99
$139.99
WAS
$1,649.99
$1,389.99
WAS
$689.99
$579.99
WAS
$549.99
$459.99
WAS
$119.99
$89.99
WAS
$209.99
$169.99
WAS
$209.99
$169.99
WAS
$759.99
$629.99
NEO line bullet tweeters are a totally new project, lighter and more compact compared to the previous ST 35 and with superior performance thanks to the use of Neodymium N38 H for the motor units and a FEM (Finite Element Method) optimized driver/horn design. The “Active” version, ST 35A Neo provides tweeter only.
Features
- Powerful Neodymium magnet providing high performance with compact size.

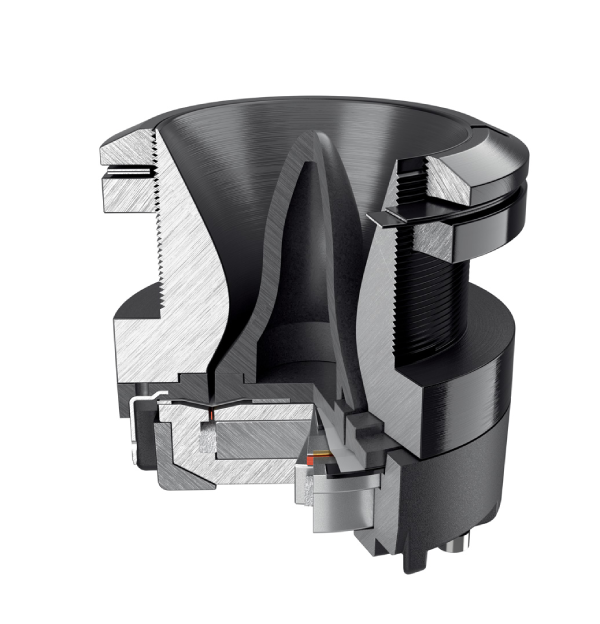

- FEM (Finite Element Method) optimized phase-plug and loading horn.
- CCAR (Copper Clad Aluminium Ribbon) voice coil for unheard-of thermal and mechanical capability ready for an easy replacement with replacement body kit.
- Extra-light aluminium membrane to maximize SPL with high current, screw terminals.
- Body waterproofing and anti-UV treatment to allow safe outdoor use without discoloration over time.
- Aluminium back cover for superior heat dissipation.
- Impressive low frequency extension and efficiency.
Technologies
NATURE PROOF
Compact and lightweight, the new spl neo systems are extremely loud and do not fear nature elements for an unlimited fun in every condition!
| TECHNICAL SPECS | |
|---|---|
| Component | HIGH EFFICIENCY COMPRESSION DRIVER |
| Size mm (in.) | 46 (1.8) |
| Power Handling - Peak W | 120 |
| Power Handling - Peak Note | Hi-pass filtered @ 5 kHz - 12 dB Oct. |
| Impedance Ohm | 4 |
| Voice Coil Ø | 35 (1.4) |
| Frequency Response Hz | 2k ÷ 20k |
| Weight of one component kg (lb.) | 0,53 (1.17) |
| Magnet | Neodymium |
| Dome | Aluminium |
| Electro-acoustic Specs | |
| D mm | 46 |
| Re Ohm | 3,3 |
| Fs Hz | 4000 |
| Le mH | 0,02 |
| BL T*m | 3,5 |
| Spl dB | 109 |
