Alpine S-DB8V-TRK

8" Alpine Dual Halo S-Series Preloaded Truck Subwoofer Enclosure - S-DB8V-TRK



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Price$1,199.00
Savings$200.00
Our Price $999.00 CAD
Sale Ends : March 28, 2024
On Sale
Availability
Schedule Delivery

Literature

Overview

Now you can add deep, accurate bass in your truck without compromising valuable cabin space.

Features

  • Groundbreaking Alpine Halo Design
  • ProLink Ported Enclosure
  • Expandable Width from 40" to 51"
  • Compact, Under-the-Seat Installation in Most Full-Size Trucks
  • Integrated Amplifier Tray (not applicable with all vehicles)
  • Rubber, Modular Stackable Foot Design Accommodates Uneven Truck Floor Areas
  • Ported Enclosures with High-Performance S-Series Subwoofers
  • Front Link Alpine Branded Bracket

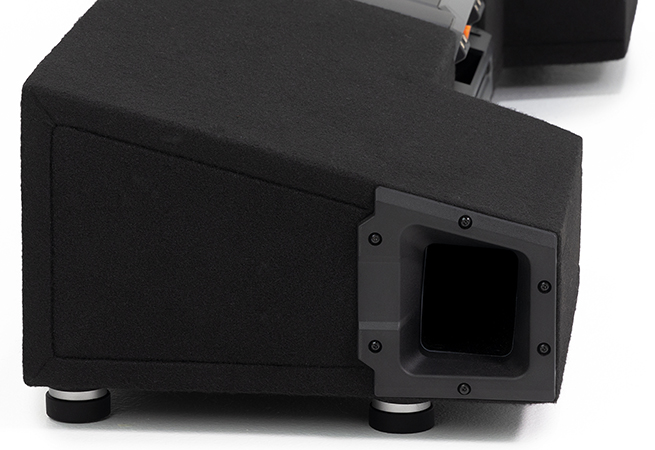

  • Side-Firing Cabin Loading Ports
  • Premium Alpine Wire Terminals
  • CARB Compliant 5/8" MDF Construction
  • Premium Black Carpet
  • Subwoofer Enclosures Preloaded with (2) S-W8D2 8" S-Series Subwoofers
  • Front and Rear ProLink Brackets
  • Alpine Front Logo Cover
  • Two Amplifier Tray Brackets
  • Owner's Manual
  • 2018-Up Chevy Silverado Crew Cab
  • 2015-Up Ford F-150 Crew Cab
  • 2018-Up GMC Sierra Crew Cab
  • 2018-Up RAM 1500 Crew Cab
  • 2020-Up Jeep Gladiator JT (Fits under seat)
  • Jeep Wrangler JK/JL (Fits in trunk space, not under seat)

Tech Specs

  • 600W RMS
  • Frequency Response: 34Hz-200Hz
  • Sensitivity: 84dB
  • Dual voice coils Wired in Parallel for a 2Ω Load (Compatible with S-A60M)
  • Vented Enclosure Tuning Frequency: 36Hz
  • Custom spring-loaded speaker terminals fit up to 12AWG speaker wire

Dimensions:

40"-51" (Adjustable Width) x 8-3/4" (H) x 13-3/4" (D)

  • 600W RMS
  • Frequency Response: 34Hz-200Hz
  • Sensitivity: 84dB
  • Dual voice coils Wired in Parallel for a 2Ω Load (Compatible with S-A60M)
  • Vented Enclosure Tuning Frequency: 36Hz
  • Custom spring-loaded speaker terminals fit up to 12AWG speaker wire

Designed for Trucks

From towing to travel, you depend on your truck to get you where you want to go, but can you rely on getting the best performance from your sound system? Now you can add deep, accurate bass in your truck without compromising valuable cabin space with the new S-DB8V-TRK Dual 8" Alpine Halo S-Series Preloaded Truck Subwoofer Enclosure with ProLink.

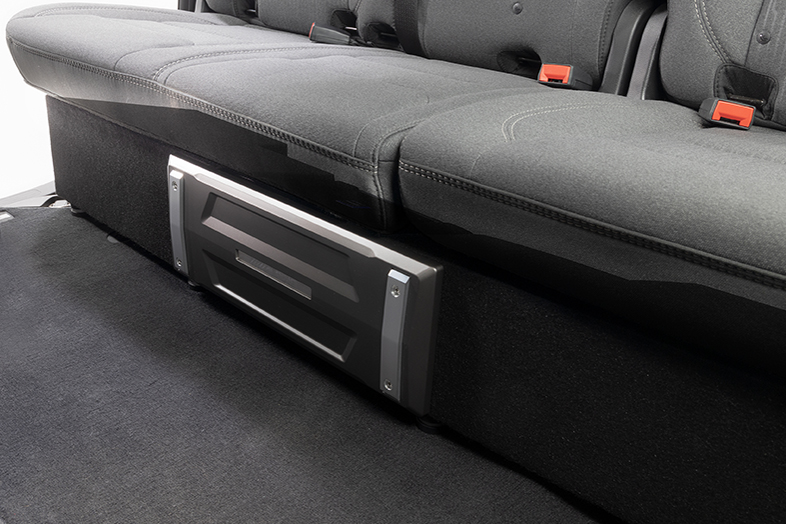

Flexible Fitment

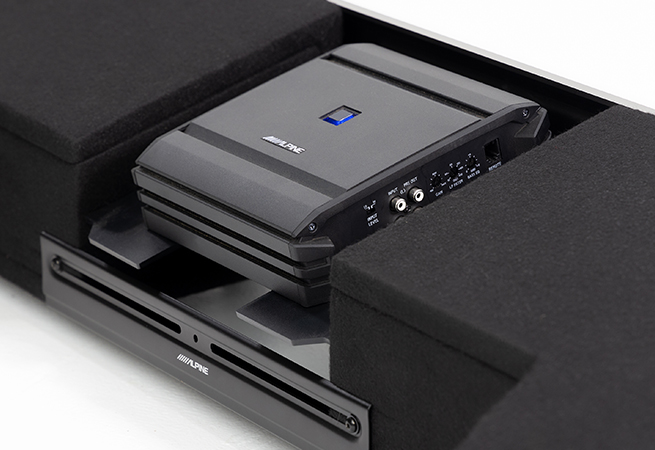

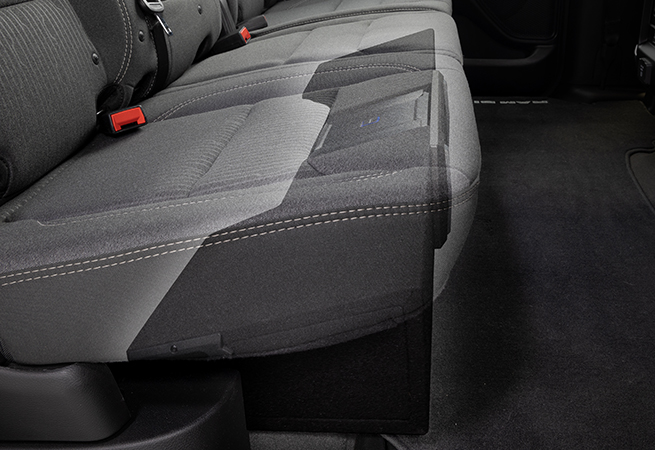

The enclosures were intentionally crafted to fit most full-size trucks. Two 8" subwoofers are preloaded into a compact enclosure for under the seat installation and linked with a ProLink bracket that can adjust from 51"-40". Centered on the enclosures is an integrated amplifier mount tray that's optimized for Alpine's S-A60M Mono Power Amplifier (sold separately). Rubber "feet" are adjustable in height to accommodate uneven truck floors.

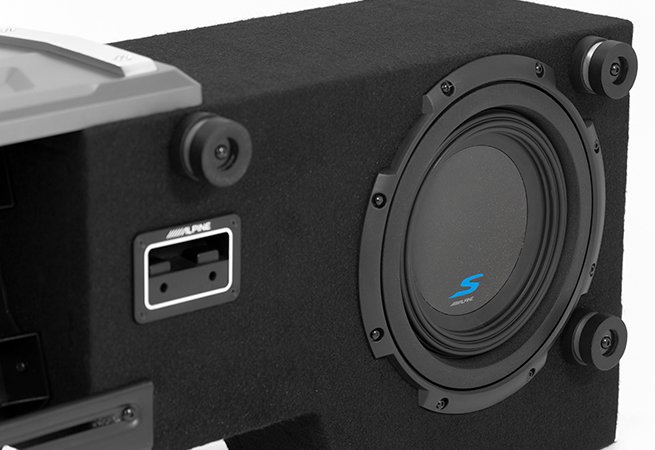

Reliable Performance

The enclosures are designed for the unique cabin environment of your truck. The ported subwoofer enclosures feature Alpine's reliable 8" S-Series Subwoofers. The subwoofers are designed with an improved voice coil that brings out the full potential of the subwoofer. The custom-stamped steel frame is designed to withstand the rigors of the strong S-Series motor. Frame leg vents, as well as a vented backplate, keep the subwoofer cool for non-stop bass performance.

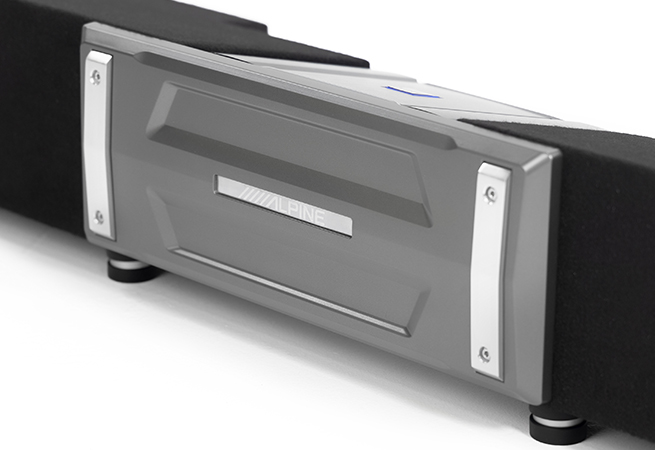

Alpine Halo Design

Alpine's new Preloaded Truck Subwoofer Enclosures join the Alpine Halo Family with a premium, unmistakable design. The enclosure pulls design cues from the Alpine Halo Display with unique, curved edges outlined by a silver trim and a front link bracket cover with an Alpine logo badge. The 5/8" MDF enclosures are covered in a premium black carpet that will elevate the look of your truck.

Tuned for S-Series

With two preloaded S-W8D2 8" S-Series subwoofers that are tuned to 36Hz, S-DB8V-TRK is optimized to perform with Alpine's S-Series sound system line. Dual voice coils are wired in Parallel for a 2Ω Load that's compatible with Alpine's S-Series S-A60M Mono Power Amplifier.
