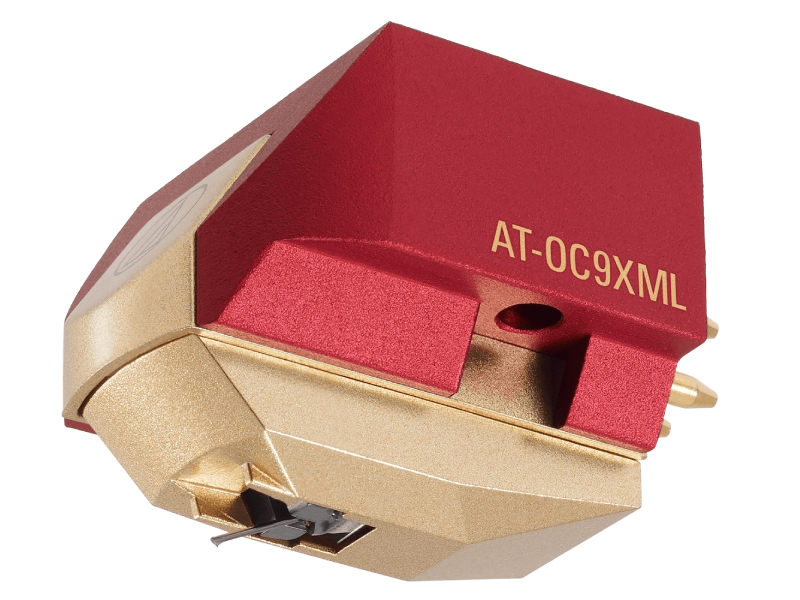

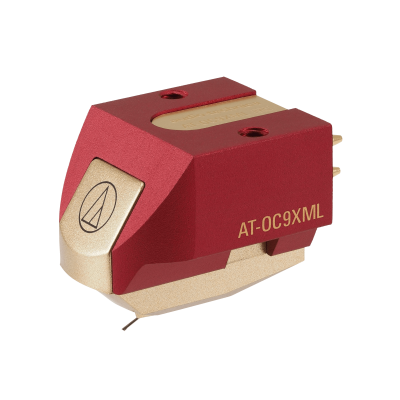

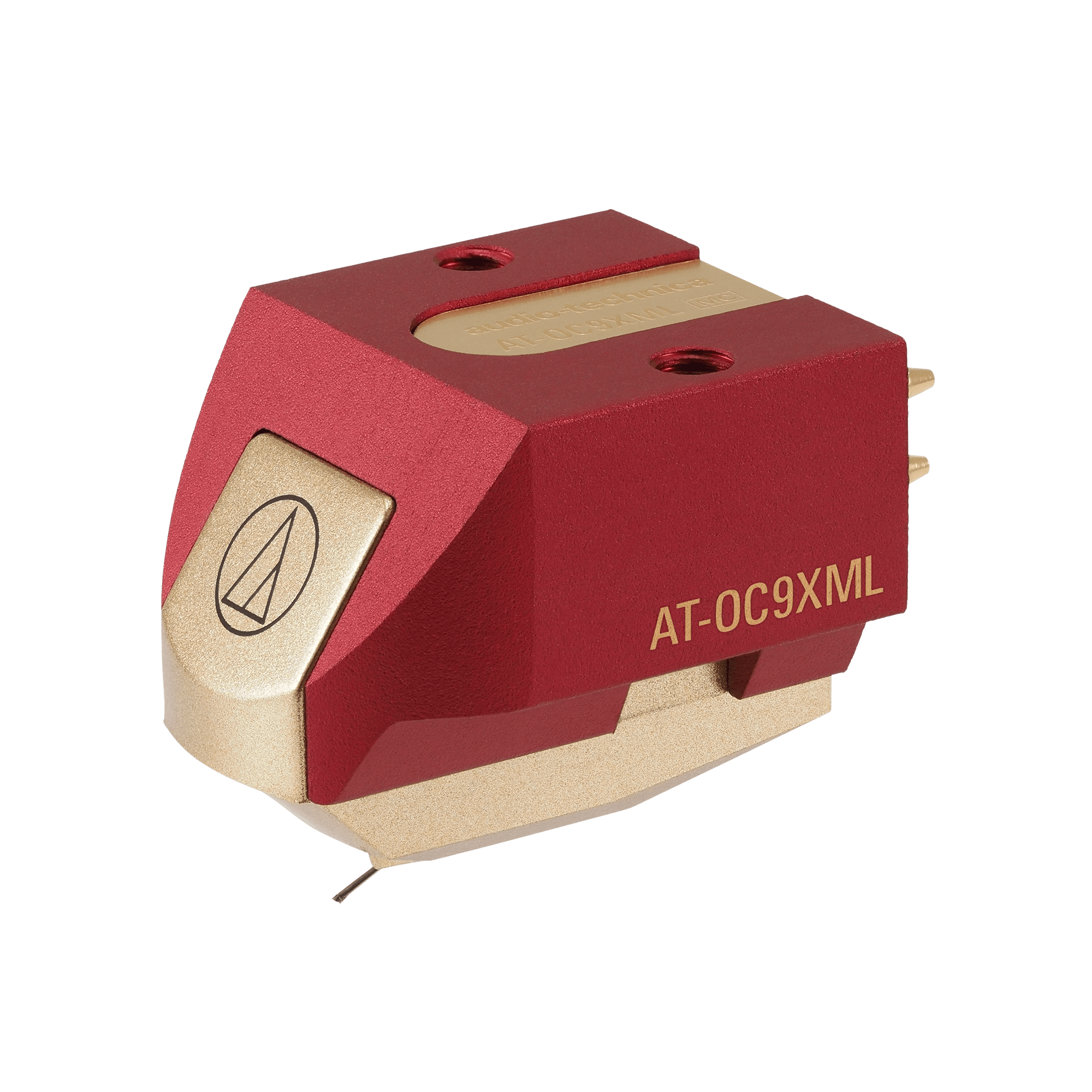

The AT-OC9XML Dual Moving Coil cartridge with Microlinear stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and premium permendur yoke that increase the magnetic energy, and the nude Microlinear stylus on a boron cantilever that tracks the record groove with incredible accuracy, low distortion and high-transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.
Features
Specifications | |
---|---|
Frequency Response | 20-47,000 Hz |
Channel Separation | 27 dB (1 kHz) |
Vertical Tracking Angle | 20° |
Vertical Tracking Force | 1.8-2.2 g (2.0 g standard) |
Stylus Construction | Nude square shank |
Recommended Load Impedance | Min. 100 ohms (when head amplifier is connected) |
Coil Impedance | 12 ohms (1 kHz) |
DC Resistance | 12 ohms |
Coil Inductance | 25 mH (1 kHz) |
Output Voltage | 0.4 mV (at 1 kHz, 5 cm/sec) |
Output Channel Balance | 1.0 dB (1 kHz) |

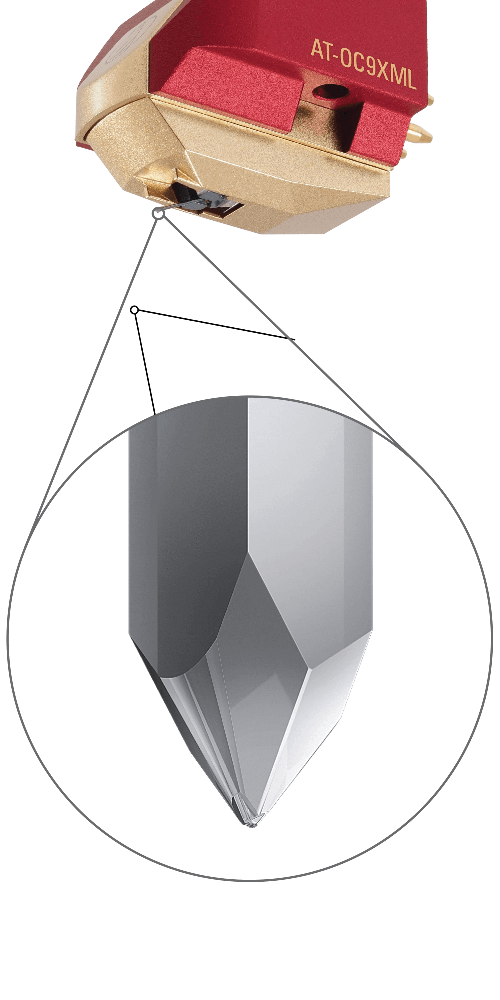

Stylus Shape | Microlinear |
Cantilever | 0.28 mm diameter nude boron |
Static Compliance | 20 x 10-6 cm/dyne |
Dynamic Compliance | 16 x 10-6 cm/dyne (100 Hz) |
Mounting | Half-inch |
Cartridge Weight | 7.6 g |
Dimensions | 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.7 mm (1.01") D |
Accessories Included | Non-magnetic screwdriver; 2 washers; cartridge installation screws (5 mm × 2, 8 mm × 2, 10 mm x 2, 12 mm x 2); plastic protector; brush |
Body Material | Aluminum |
Model | AT-OC9XML |
Mounting Feature | Half-inch mount |
Stylus Curvature Radius | 2.2 x 0.12 mil |
Stylus Size | Nude square shank |
Terminal Pins | Brass |
Type | Dual Moving Coil |
Weight | 7.6 g (0.3 oz) |
Wire Used for Coil | PCOCC |
