| Our Price |
$799.00 CAD
Sale Ends : April 30, 2025 On Sale
|

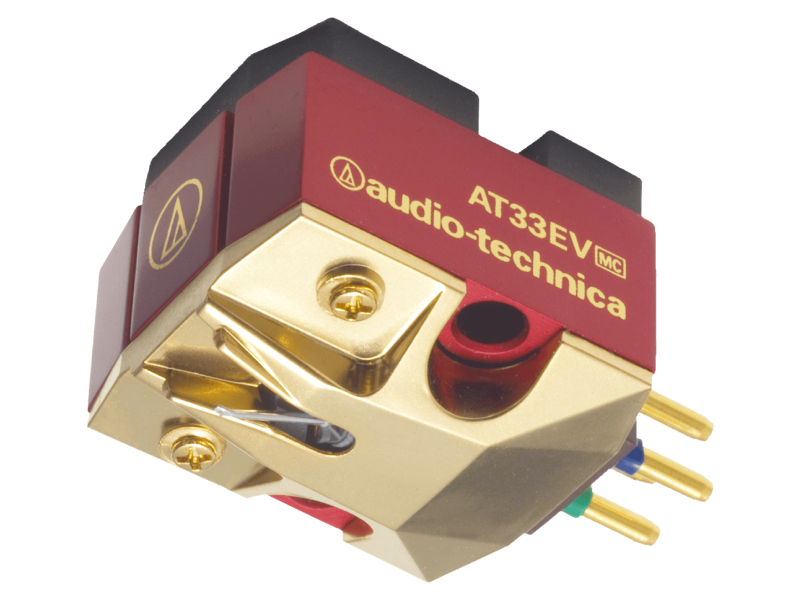

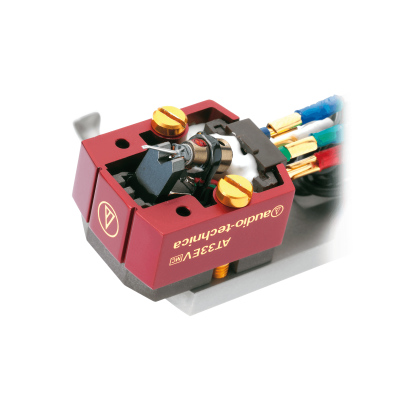

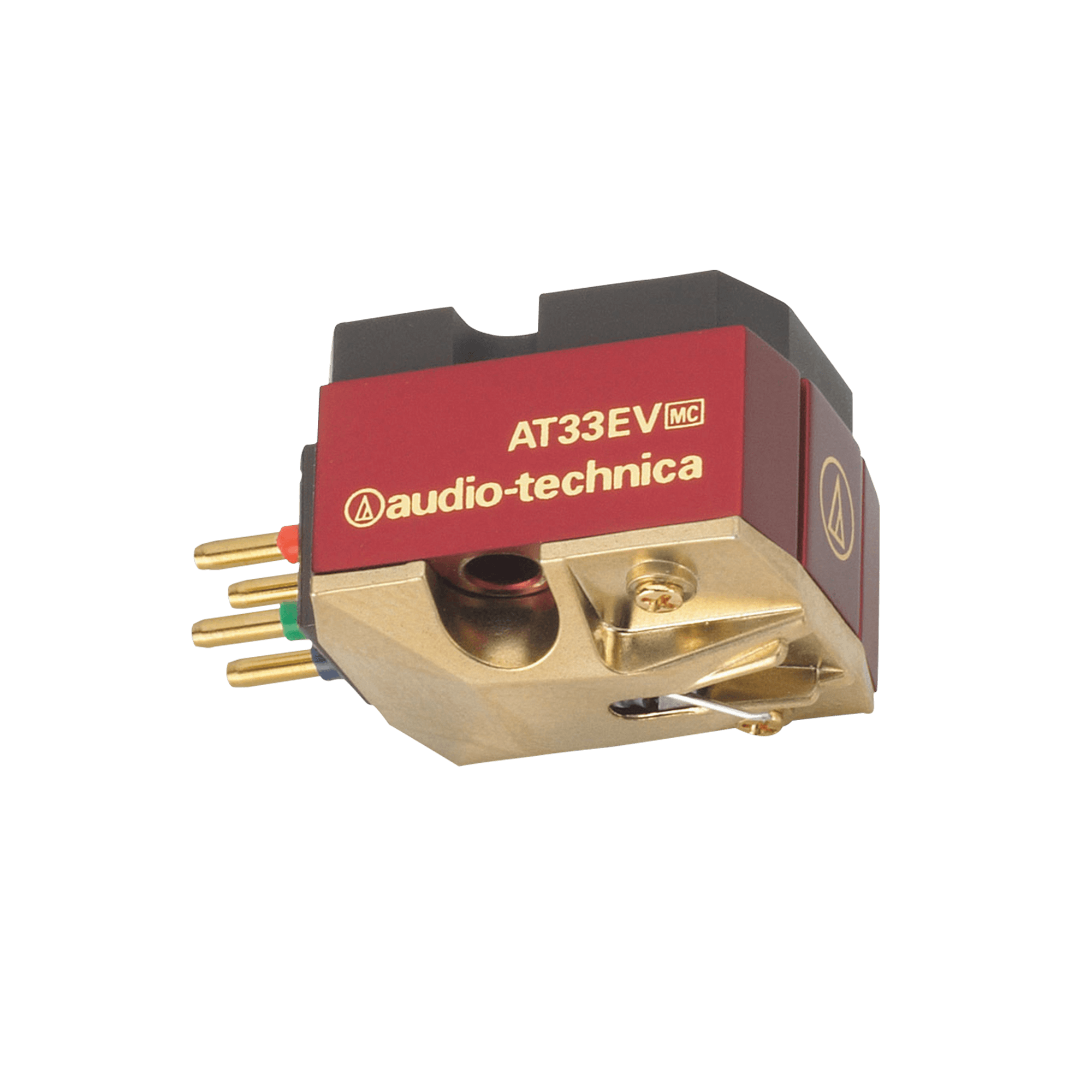

The new half-inch standard mount .3 x .7 mil elliptical AT33EV cartridge features a tapered duralumin cantilever. Dual Moving Coil cartridge design increases channel separation and extends the frequency response range delivering extraordinary audio quality. Internally constructed with neodymium magnet for enhanced magnetic energy and PCOCC wire for pure audio transmission.
| Specifications | |
|---|---|
| Type | Dual Moving Coil |
| Terminal Pins | Brass |
| Stylus Curvature Radius | 0.3 x 0.7 mil |
| Mounting Feature | Half-inch mount |
| Body Material | Aluminium/Synthetic Resin |
| Accessories Included | Non-magnetic screwdriver × 1, Washer × 2, Protector × 1, Cartridge installation screws 13 mm × 2 and 19 mm × 2, Nut × 2, Brush × 1, PCOCC lead set × 1 |
| Dimensions | H16×W16.6×D26.5mm |
| Mounting | Half-inch |
| Dynamic Compliance | 10×10-6cm/dyne (100Hz) |
| Static Compliance | 40×10-6cm/dyne |
| Cantilever | Duralumin tapered pipe |

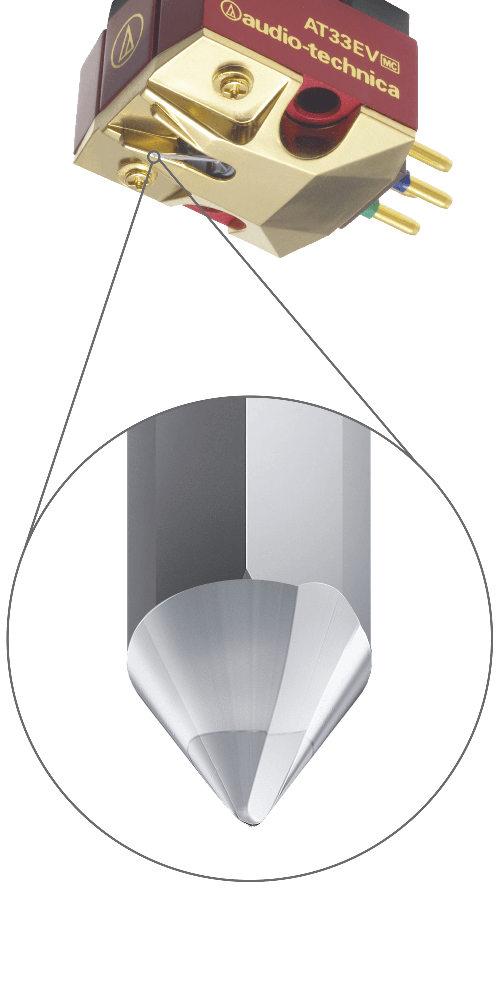

| Stylus Shape | 0.3 x 0.7 mil nude elliptical |
| Output Channel Balance | 0.5 dB (1 kHz) |
| Output Voltage | 0.3 (mV at 1 kHz, 3.54 cm/sec) |
| Coil Inductance | 22µH (1kHz) |
| DC Resistance | 10Ω |
| Coil Impedance | 10Ω (1kHz) |
| Recommended Load Impedance | 100 ohms (with head amplifier connected) |
| Stylus Construction | Nude Square Shank |
| Vertical Tracking Force | 1.8-2.2 grams (2.0 grams standard) |
| Channel Separation | 30 dB (1 kHz) |
| Vertical Tracking Angle | 23° |
| Frequency Response | 15-50,000 Hz |
| Weight | 6.9g |
