Audison Mid Range 100 W Peak Power 70 mm (3.5 in.) 4 ohm - AV 3.0 II

Category : Car Speakers
SKU : AV3.0II

$1,379.99
OR
$345.00
In 4 installments with
Sale Ends : March 31, 2027
On Sale

Literature

Description

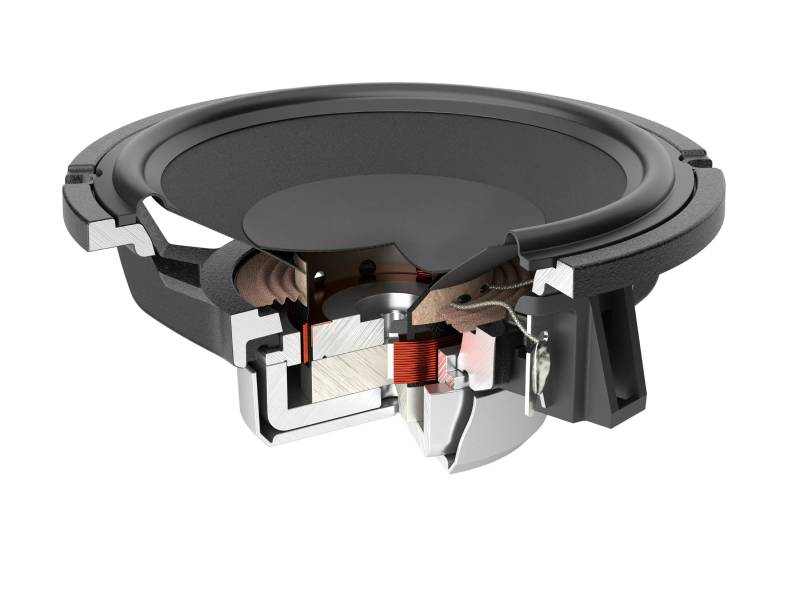

The Audison VOCE II AV 3.0 II mid-range speaker is meticulously crafted to deliver exceptional clarity and rich detail in the crucial mid-frequency range. Featuring a specialized cone made from pressed paper with cotton fibers, the AV 3.0 II offers an ideal balance of rigidity and responsiveness, enhancing sound reproduction for today’s car audio enthusiasts. This mid-range unit integrates seamlessly into any system with its compact design and is equipped with OEM-style connectors, ensuring straightforward and versatile installation options.



Features

  • FEM-Designed Cone Geometry : Ensures uniform sound dispersion across all listening angles, optimizing directivity and reducing irregularities for an impeccable listening experience.
  • Oversized Neodymium Magnet : Provides exceptional thermal stability, ensuring consistent dynamic performance and optimal power reserve under all listening conditions.
  • Magnetic Circuit Geometry Optimized with FEM : Maximizes efficiency by focusing the magnetic field on the coil for more precise, dynamic sound and improved midrange response.
  • Semi-Pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for clean, undistorted midrange reproduction with a wide frequency response, enhancing sound clarity.
  • CCAW Voice Coil (Copper-Clad Aluminum Wire) : the 1” (26 mm) CCAW (Copper-Clad Aluminum) voice coil optimizes magnetic force and heat dissipation, allowing for high power handling and detailed midrange reproduction, even at high volumes.
  • Installation Flexibility : Equipped with OEM-style connectors, offering maximum installation versatility.
  • Low Inductance Design : Optimizes upper midrange reproduction, enhancing the clarity of vocals and instruments, thanks to a copper shorting ring built-in motor.
  • Die-Cast Aluminum Basket with Magnet Cover : Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance, even during prolonged use.
  • High Excursion Butyl Rubber Surround and Optimized Spider : Designed with advanced simulations for greater control over cone movement, reducing distortion even during intense sound excursions.
  • Elegant Black Mesh Metal Grille Included : Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect integration into the cabin. Includes two adhesive Audison logo badges, which are provided, allowing for personalized placement to enhance branding and aesthetics.
  • eID Technology : Provides product traceability from production to the final owner, ensuring authenticity and security at every stage.
TECHNICAL SPECS
Nominal diameter70 mm (3 in)
Minimum Impedance3.2 Ohm
Power Handling - Peak100 W
Power Handling - Continuous50 W
Sensitivity90 dB
Frequency Response160 ÷ 13000 Hz
Voice Coil Ø26 mm
Chassis MaterialALUMINIUM
Magnet MaterialNEODYMIUM
Magnet size D x d x h24.9-6 mm (in.)
Voice Coil MaterialCCAW
Former MaterialGLASS FIBER
Cone MaterialSEMI-PRESSED PAPER
Surround MaterialRUBBER
Xmax1.4 mm (0.06 in)
Xmech3.2 mm (0.13 in)
Voice Coil Winding Height5.3 mm (0.21 in)
Gap Height4.5 mm (0.18 in)
Crossover nameno
ELECTRIC-ACOUSTIC SPECS
D35.6 cm² (5.518 in²)
Re2.9 Ohm
Fs150 Hz
Le0.1 mH
Vas0.61 l (0.022 ft)
Mms2.9 g (0.102 oz)
Cms0.39 mm/N
BL3.5 T•m
Qts0.58
Qes0.65
Qms5.45
Flux Density0.78
General
Weight0.15 kg
Dimensions
Dimension A84 mm (3.31 in)
Dimension B73 mm (2.87 in)
Dimension C35 mm (1.38 in)
Dimension D31.2 mm (1.23 in)
Hole diameter3.5 mm
