Hertz CX690-P

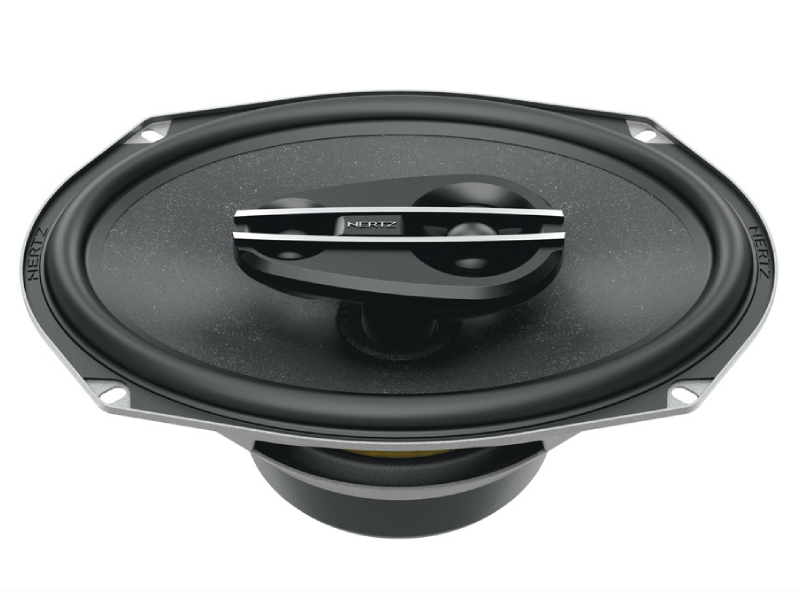

Hertz Cento Three-way Elliptical Coaxial Speaker - CX690-P



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Price$329.99
Savings$50.00
Our Price $279.99 CAD
Sale Ends : January 31, 2025
On Sale
Availability
Schedule Delivery

Literature

The three-way elliptical coax CX 690 featuring a 6×9 in. cone was designed to achieve maximum performance in horizontal installations and offering, even in this difficult condition, an exceptional tone balance and power handling.

Features

  • 6x9 in. semi-pressed paper elliptical cone SPP-M (Semi Pressed Paper-Mica) enhanced with Mica powder for an excellent balance between lightness and damping.
  • Wide rubber suspension engineered for a long excursion and excellent sound damping.
  • High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.
  • Basket with metallic finish acoustically combined with a rubber magnet cover for total damping of spurious vibrations.
  • 40 mm (1.58 in.) dome tweeter for efficient distortion-free mid-high frequency reproduction.
  • 20 mm (0.8 in.) dome supertweeter to maximize the level of very high frequencies in horizontal installations.
  • Tweeter faceplate geometry optimized with FEM simulations (Finite Element Modeling), to provide an extremely linear frequency response in off-axis installations.
  • Provided elegant grille made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.

Technologies

SPP-M

SPP-M (Semi Pressed Paper-Mica) cone enhanced with Mica powder for an excellent balance between lightness and damping.

Accessories

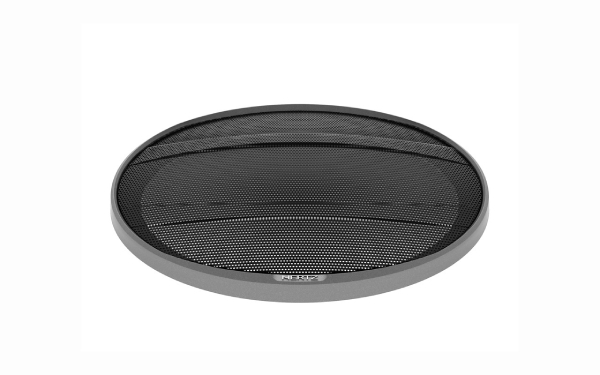

CG 690 grile

Provided

Composed by a high-resistance ABS plastic support and metal mesh, to ensure a high degree of protection with a Hi-tech design.

Specification
Power Handling - Peak W300
Power Handling - Continuous W100
Impedance Ω4
Frequency response Hz40 ÷ 23k
Sensitivity dB SPL93,5
Woofer size mm (in.)(6 x 9)
Tweeter size mm (in.)40 (1.58)
Supertweeter size mm (in.)20 (0.8)
Woofer Voice Coil Ø mm (in.)30 (1.2)
Tweeter voice coil Ø mm (in.)28 (1.1)
Woofer magnetHigh density flux ferrite
Tweeter magnetNeodymium
Woofer cone Semi Pressed Paper-Mica
Tweeter domePEI
Supertweeter domePEI
