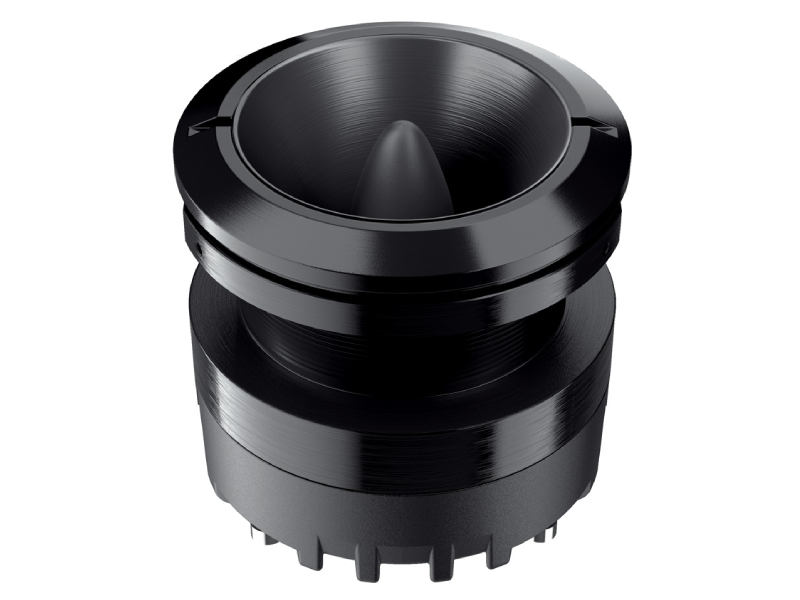

Hertz ST35A

Hertz Neo line Bullet Tweeter - ST35A



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Availability
Schedule Delivery

Literature

46 (1.8) mm (in.) | High Efficiency Compression Driver | 120 W | 4 Ohm

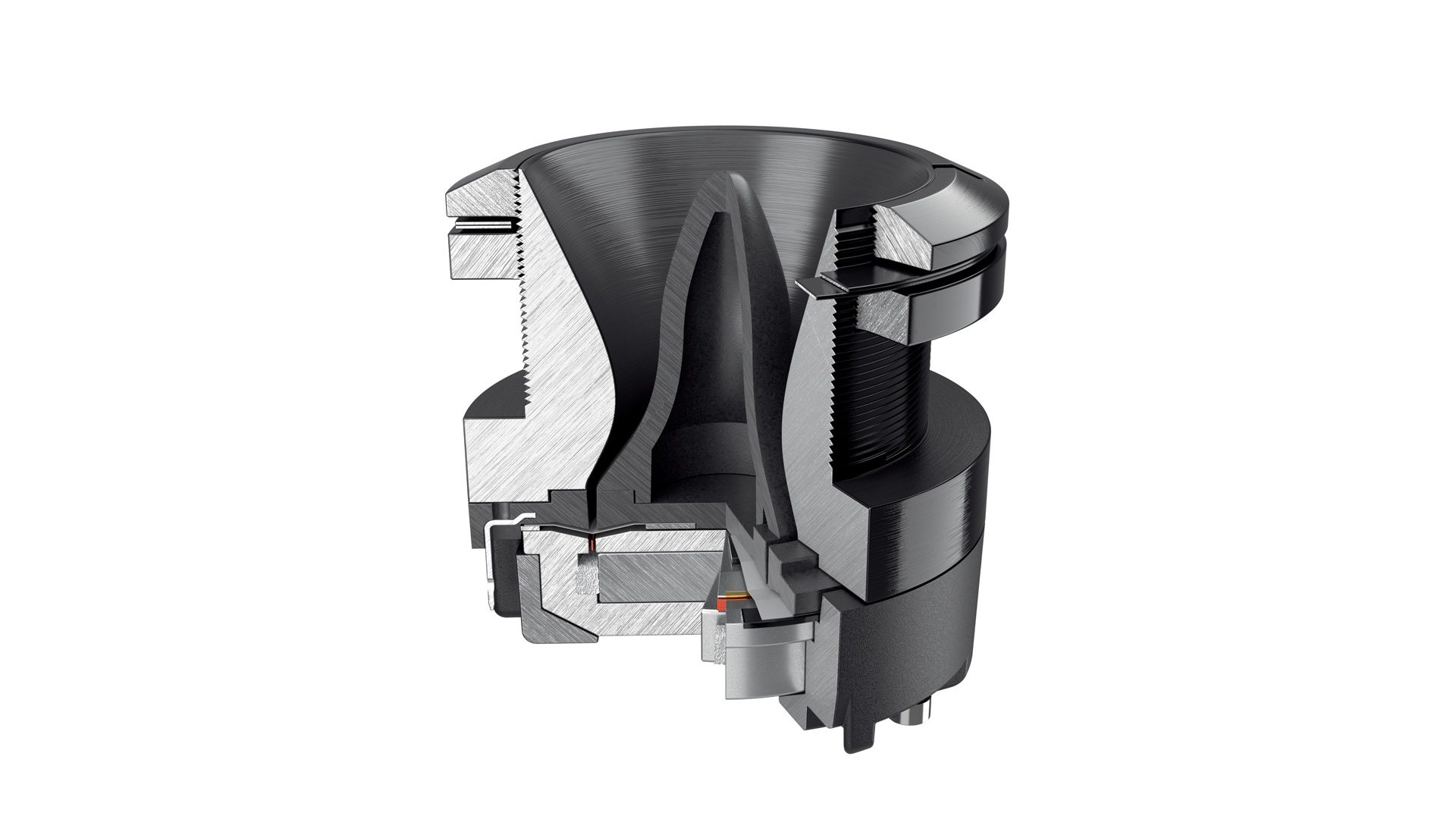

NEO line bullet tweeters are a totally new project, lighter and more compact compared to the previous ST 35 and with superior performance thanks to the use of Neodymium N38 H for the motor units and a FEM (Finite Element Method) optimized driver/horn design. The “Active” version, ST 35A Neo provides tweeter only.

Features

  • Powerful Neodymium magnet providing high performance with compact size.
  • FEM (Finite Element Method) optimized phase-plug and loading horn.
  • CCAR (Copper Clad Aluminium Ribbon) voice coil for unheard-of thermal and mechanical capability ready for an easy replacement with replacement body kit.
  • Extra-light aluminium membrane to maximize SPL with high current, screw terminals.
  • Body waterproofing and anti-UV treatment to allow safe outdoor use without discoloration over time.
  • Aluminium back cover for superior heat dissipation.
  • Impressive low frequency extension and efficiency.

Technologies

NATURE PROOF

Compact and lightweight, the new spl neo systems are extremely loud and do not fear nature elements for an unlimited fun in every condition!

TECHNICAL SPECS
ComponentHIGH EFFICIENCY COMPRESSION DRIVER
Size mm (in.)46 (1.8)
Power Handling - Peak W120
Power Handling - Peak NoteHi-pass filtered @ 5 kHz - 12 dB Oct.
Impedance Ohm4
Voice Coil Ø35 (1.4)
Frequency Response Hz2k ÷ 20k
Weight of one component kg (lb.)0,53 (1.17)
MagnetNeodymium
DomeAluminium
Electro-acoustic Specs
D mm46
Re Ohm3,3
Fs Hz4000
Le mH0,02
BL T*m3,5
Spl dB109
