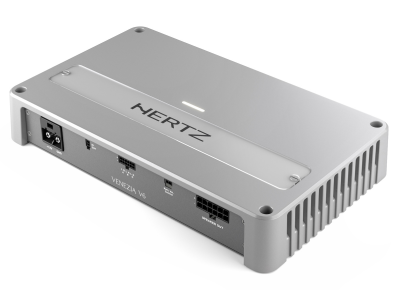

Hertz VENEZIA V6 24V

Hertz Six Channel RMS 1740W Marine Amplifier - VENEZIA V6 24V



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Availability
Schedule Delivery


Venezia V6 24V option is the first six-channel Hertz marine amplifier, featuring the impressive power of 160 W x 6 (4Ω), delivering the output levels needed in the marine environment! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability. Venezia V6 24V is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V6 24V is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.

Designed to be the new reference, the Venezia line reaches an unmatched power/size ratio thanks to Hertz ADC (Advance D-Class), maximizing efficiency that reach 85% while enhancing sound quality that obtains the Hi-Res certification by JAS. Hertz ADC high efficiency design reduces battery consumption featuring a higher power than Class-AB traditional layout. ADC provides cleaner output to speaker system, especially when driving subwoofers.

KEY FEATURES

  • Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.
  • ADC (Advanced D-Class) Technology 2Ω(1Ω for mono models) stable output stage providing Hi-Res certified audio performance with a superior efficiency.
  • Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
  • Balancedfully-differential input circuitry to reject electro-magnetic disturbances.
  • Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.
  • Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
  • Short-circuit,overload and thermal protections with auto resetting.
  • Plug&Play Input and Output connections with safe-lock.
  • Proprietary Plug&Play Power Supply Connector with safe-lock.

BUILT-IN CROSSOVER FILTERS

Venezia amplifiers feature variable low/ high pass crossover filters, adjustable bass boost and a subsonic filter for an optimal tuning in every boat. The controls are protected by a polycarbonate panel located on the upper side, to be easily reached from above even after the product has been installed. When the system includes a processor like S8 DSP, the filter section can be totally excluded.

RUGGED ALUMINUM ALLOY HEAT SINK

Venezia amplifiers heat sink has been crafted from extruded aluminum, a material unmatched for lightness, robustness and heat dissipation. The oversized fin layout maximizes the surface area for optimal heat dissipation.

PLUG AND PLAY CONNECTION

The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. Not availabe for compact models.

DESIGN TO LAST

The conformal coated PCBs provides superior protection against corrosion agents.

Technologies

ADC

Hertz Advanced Class D architecture maximizes efficiency and power while minimizing heat and electromagnetic radiation – without penalizing sound quality! High-powered channels with bridging capability deliver the output levels needed in the marine environment.

CORROSION RESISTANT

Electronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated marinegrade (epoxy coated) PCB boards.

WATER JET TESTED

The protection grade IP64 define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.

Hi-Res

Hi-Res certified performance, with an extended audio band up to 40 kHz.

SALT FOG TESTED

To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.

Input/Output

PHYSICAL SPECS
Weight:3.72 kg / 8.2 lb
Output Power
OUTPUT POWER (RMS) @ 28.8 VDC, THD 1% - Total Power RMS1740 W
OUTPUT POWER (RMS) @ 28.8 VDC, THD 1% - 3Ch580 x 3 (4Ω)
OUTPUT POWER (RMS) @ 28.8 VDC, THD 1% - 4Ch290 x 2 (2Ω) + 580 x 2 (4Ω)
OUTPUT POWER (RMS) @ 28.8 VDC, THD 1% - 4Ch160 x 2 (4Ω) + 580 x 2 (4Ω)
OUTPUT POWER (RMS) @ 28.8 VDC, THD 1% - 5Ch290 x 4 (2Ω) + 580 x 1 (4Ω)
OUTPUT POWER (RMS) @ 28.8 VDC, THD 1% - 5Ch160 x 4 (4Ω) + 580 x 1 (4Ω)
OUTPUT POWER (RMS) @ 28.8 VDC, THD 1% - 6Ch290 W x 6 (2Ω)
OUTPUT POWER (RMS) @ 28.8 VDC, THD 1% - 6Ch160 W x 6 (4Ω)
INPUTS / FILTERS
Ch. C filters: Bass boost 50 Hz (adjust):(0 ÷ 12) dB
Ch. C filters: Lo-pass:50 ÷ 500 Hz @ 12 dB/Oct
Ch. C filters: Hi-pass:50 ÷ 500 Hz @ 12 dB/Oct
Ch. C filters: By-passYes
Ch. C filters: MONO IN (on-off)Yes
Ch. B filters: Band-pass:50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
Ch. B filters: Hi-pass:50 ÷ 500 Hz @ 12 dB/Oct
Ch. B filters: By-passYes
Ch. B filters: MONO IN (on/off)Yes
Ch. A filters: Hi-pass:50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
Ch. A filters: By-passYes
Ch. A filters: MONO IN (on/off)Yes
Pre Out:No
lnputs:A Ch. Pre in, B Ch. Pre in, C Ch. Pre in
General Specs
Load impedance (MIN) - @3Ch:
Load impedance (MIN) - @4Ch:2Ω + 2Ω + 2Ω +4Ω + 4Ω
Load impedance (MIN) - @5Ch:2Ω + 2Ω + 2Ω +2Ω + 4Ω
Load impedance (MIN) - @6Ch:
Adjustable Crossoversyes
Pre-ln impedance:10 kΩ
Pre-ln sensitivity:0.2 ÷ 5 VRMS
Damping factor (100Hz @ 4Ω)130
S/N Ratlo (A welghted @ 1 V):100 dB
Bandwidth:10 ÷ 42 kHz
Distorsion - THD (100Hz @ 4Ω):<0,06%
AMPLIFIER STAGE
Remote Out:14÷ 33 VDC
Remote In:7 ÷ 33 VDC - 1 mA
Consumption@ 1Ω, 28.8 VDC (Max Musical Power):30 A
ldling current (power ON/OFF):1 A / 0.04 mA
Power supply voltage22 ÷ 33 VDC
POWER SUPPLY
Channels6 - 5 - 4 - 3
