JL AUDIO 15W0v3-4
JL Audio 15-inch Subwoofer Driver, 4 Ω 15W0v3-4


Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Our Price $379.95 CAD
Availability
Schedule Delivery

Literature

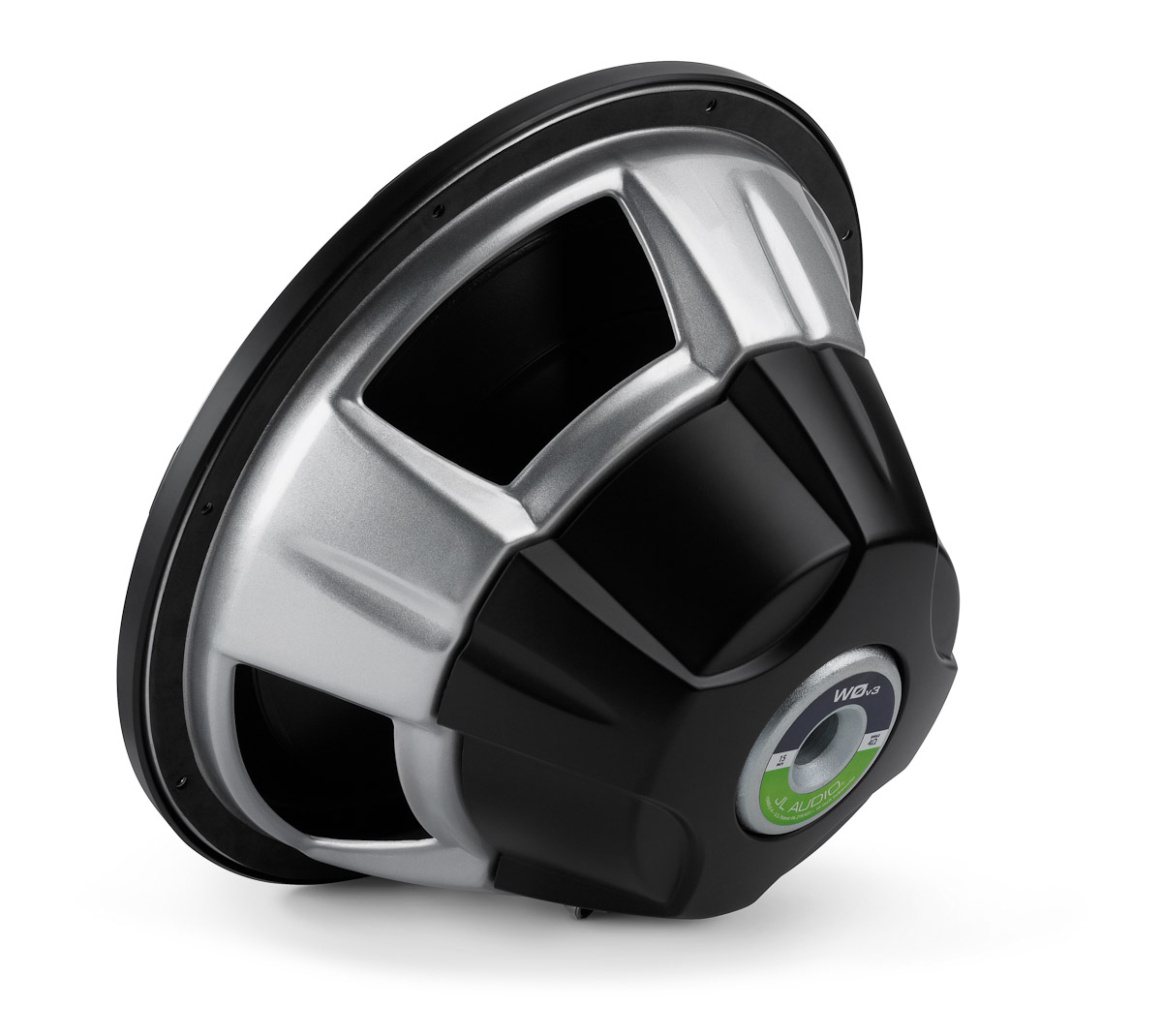

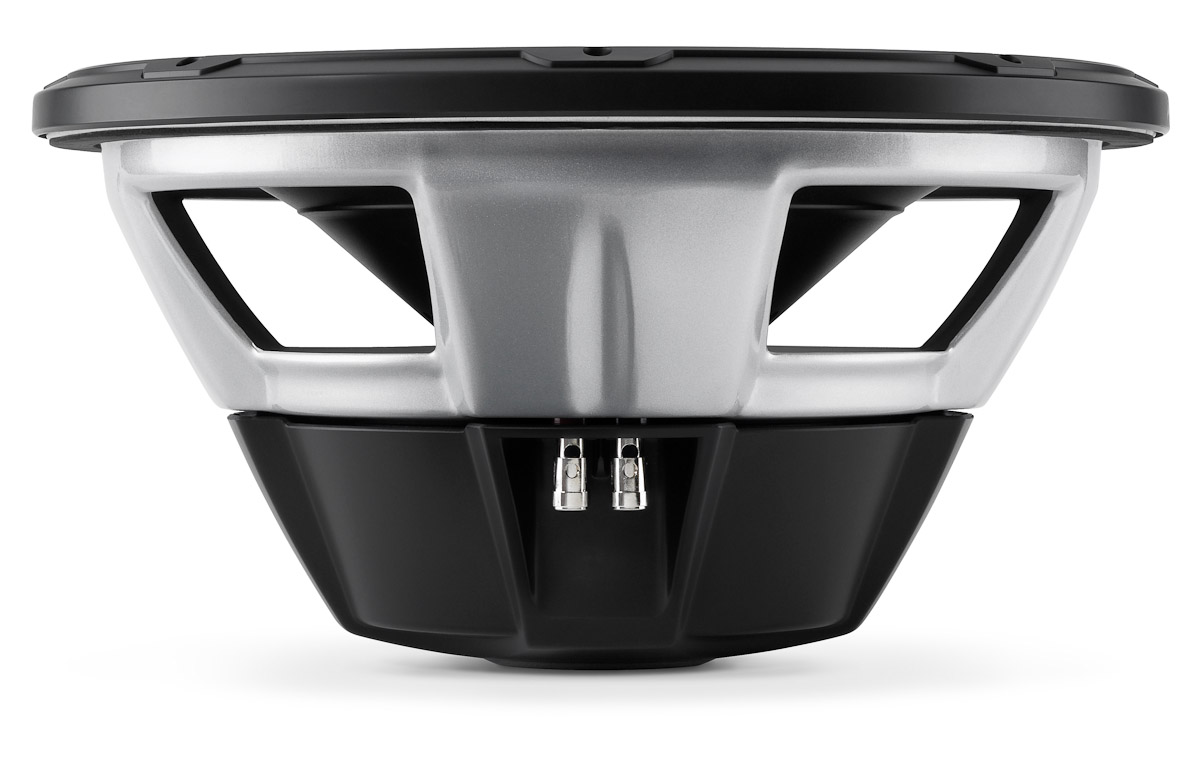

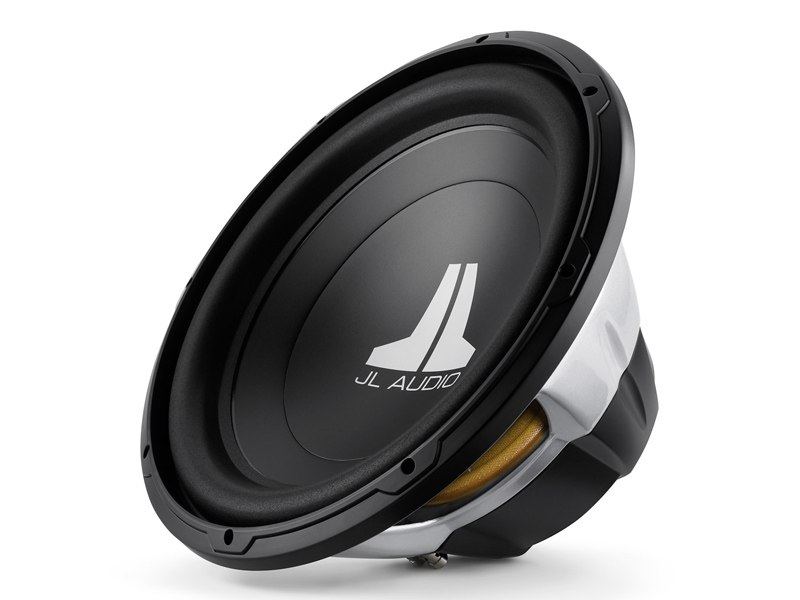

W0v3 15-inch Subwoofer Driver (500 W, 4 Ω)

Sometimes, bigger is better... For these situations, the 15W0v3 offers excellent excursion capability, linearity and an overall performance envelope that puts it right at the top of its price class. It features a very beefy 2.5 in. diameter voice coil and our patented Elevated Frame Cooling design for enhanced power handling and reliability.
The 15W0v3 is best used with amplifier power in the 150W - 500W range and is optimized to operate in a moderately sized 1.875 cu. ft. (53.1 l) sealed enclosure, or a 2.75 cu. ft. (77.88 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

Specification
Continuous Power Handling (RMS)500 W
Recommended Amplifier Power (RMS) 150 - 500 W
Nominal Impedance (Znom)4 Ω
Parameters
Free Air Resonance (Fs)24.43 Hz
Electrical “Q” (Qes)0.508
Mechanical “Q” (Qms) 9.474
Total Speaker “Q” (Qts)0.482
Equivalent Compliance (Vas)5.106 cu ft / 144.60 L
One-Way Linear Excursion (Xmax)*0.50 in / 12.7 mm
Reference Efficiency (no)0.18%
Efficiency (1 W / 1 m)**88.20 dB SPL
Effective Piston Area (Sd)122.317 sq in / 0.0789 sq m
DC Resistance (Re)3.555 Ω
