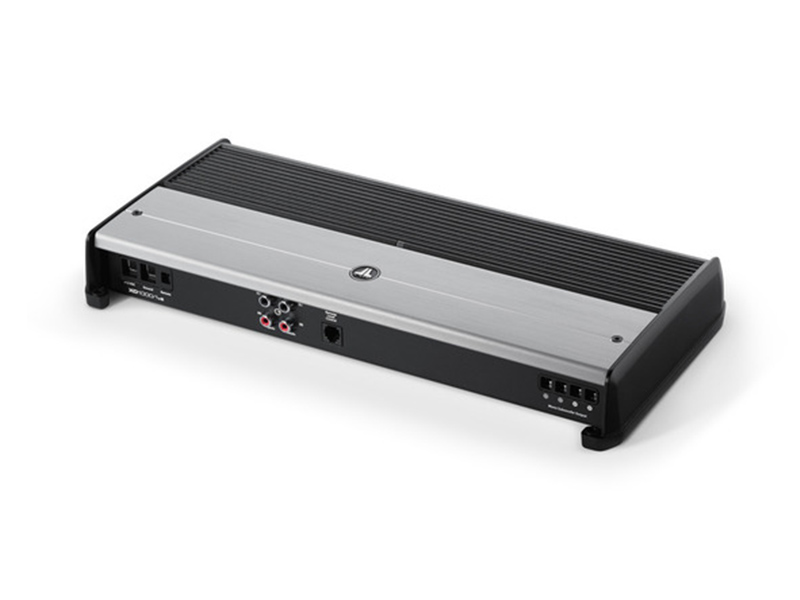

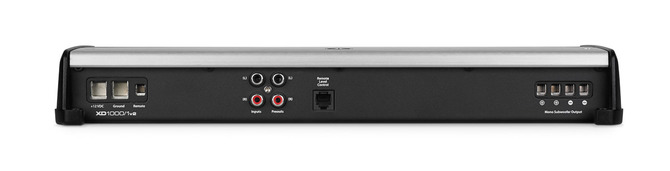

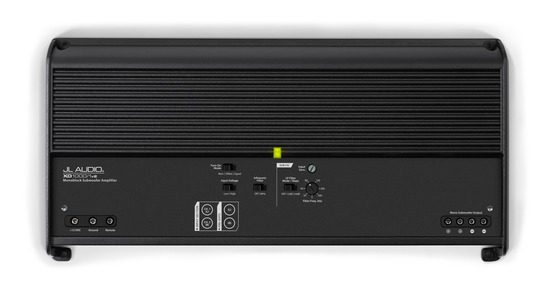

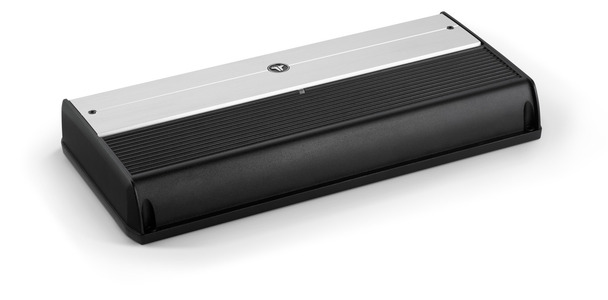

JL AUDIO XD1000/1v2

JL Audio Monoblock Class D Subwoofer Amplifier, 1000 W XD1000/1v2



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Our Price $1,149.95 CAD
Availability
Schedule Delivery

Literature

Monoblock Class D Subwoofer Amplifier, 1000 W x 1 @ 2 Ω / 600 W x 1 @ 4 Ω - 14.4V

This potent monoblock subwoofer amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output in a very compact chassis. The XD1000/1v2 is capable of delivering 1000 W of continuous power into a 2 ohm load (14.4V, 1% THD), making it a great choice to drive higher power subwoofer systems.
Designed specifically for subwoofer applications, the XD1000/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz and a defeatable infrasonic filter (30 Hz, 24 dB/oct.). The XD1000/1v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.
This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.
Download the XDv2: Monoblock Amplifiers Catalog Sheet

Rated Continuous (RMS) Power @ 14.4 V
@ 4 Ω 600 W RMS x 1
@ 3 Ω 800 W RMS x 1
@ 2 Ω 1000 W RMS x 1
@ 1.5 Ω N/A
Rated Continuous (RMS) Power @ 12.5 V
@ 4 Ω 500 W RMS x 1
@ 3 Ω 650 W RMS x 1
@ 2 Ω 800 W RMS x 1
@ 1.5 Ω N/A
General Specifications
Frequency Response 7 Hz - 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power >83 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >53 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >1000 / 50 Hz
Damping Factor @ 2 Ω >500 / 50 Hz
THD+N @ Rated Power <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 80 A (AFS, AGU or MaxiFuse™)
shipping Info
Filter Mode(s) Low-Pass only
Filter Slope(s) 12/24 dB/octave
Filter Frequency Range 50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometer Yes
Filter Defeat Function Yes
Infrasonic Filter 30 Hz, defeatable
Bass Boost EQ No
Output Polarity Switch No
Remote Subwoofer Level Control Optional (HD-RLC)
Remote Bass EQ Boost Control No
Pass-Through Preamp Output Buffered
Physical Specifications
Height (H) 2.05 in / 52 mm
Width (W) 14.73 in / 374 mm
Depth (D) 7.09 in / 180 mm
