Authorized Dealer
Price Match Guarantee
| Our Price | $99.00 CAD |

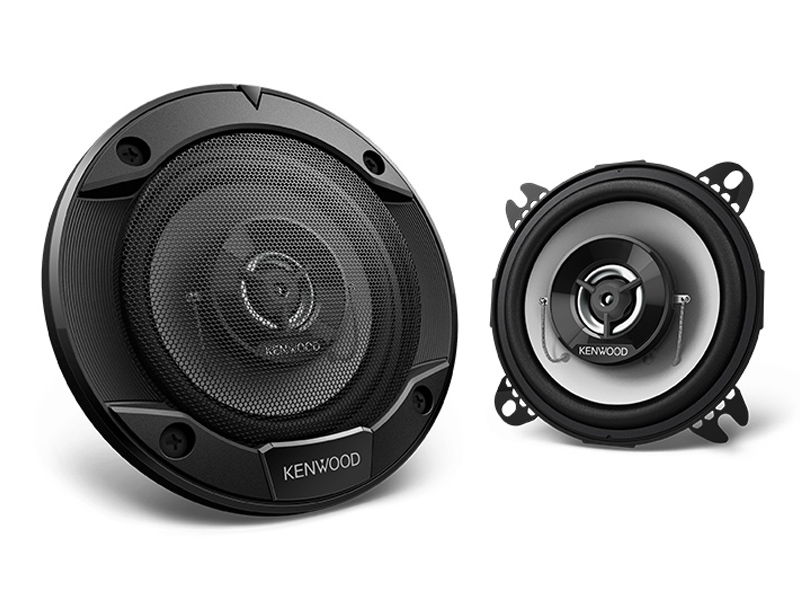

Sound Field Enhancer
To improve sound quality
Enlarged magnet circuit
To realize clear sound
Only 5/16"of mounting height
To fit for wider car selection
Peak Input Power
210W
Rated Input Power
21W Impedance 4 ohms
Woofer Features
4inch PP Cone

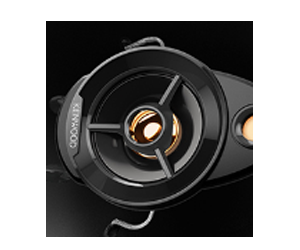

Tweeter Features
1inch Balanced Dome Tweeter
Specifications
Sensitivity: 90 dB / W / m
Frequency Response: 45 Hz - 22k Hz
Cutout Diameter: 3-5/8inch
Mounting Depth: 1-11/16inch
Gross Weight: 1.8lbs
Weight of Magnet (Woofer): 0.2lbs
| Screw sets | |
|---|---|
| Screw sets | Tapping Screw , φ4x25*8pcs |
| Grille Assy | |
| Grille Assy | 2pcs |
| Gross Weight | |
| Gross Weight | 930 g , 2.0 lbs. |
| Weight of Woofer Magnet | |
| Weight of Woofer Magnet | 160 g , 5.6 oz. |
| without Grille (pc.) | |
| without Grille (pc.) | 391 g , 0.9 lbs. |
| with Grille (pc.) | |
| with Grille (pc.) | 437 g , 1.0 lbs. |
| Mounting Depth | |
| Mounting Depth | 43 mm , 1-11/16 in. |
| Cutout Diameter | |
| Cutout Diameter | Φ92.6 , Φ3-5/8 |
| Tweeter Height | |
| Tweeter Height | 8 mm , 5/16 in. |
| Height (w/o_Gr) | |
| Height (w/o_Gr) | 104.0 mm , 4-1/8 in. |
| Height (w_Gr) | |
| Height (w_Gr) | 134.0 mm , 5-1/4 in. |
| Width (w/o_Gr) | |
| Width (w/o_Gr) | 104.0 mm , 4-1/8 in. |
| Width (w_Gr) | |
| Width (w_Gr) | 134.0 mm , 5-1/4 in. |
| Magnet | |
| Magnet | Neodymium |
| Size | |
| Size | 25mm , 1 in. |
| Diaphragm | |
| Diaphragm | Balanced Dome , Silver |
| Magnet | |
| Magnet | Ferrite , φ70xt10 |
| Surround | |
| Surround | Cloth |
| Size | |
| Size | 100mm , 4in |
| Diaphragm | |
| Diaphragm | PP , Silver |
| Frequency Response (Hz) | |
| Frequency Response (Hz) | 50-22000Hz |
| Sensitivity (dB at 1m) | |
| Sensitivity (dB at 1m) | 88dB |
| RMS Input Power (W) | |
| RMS Input Power (W) | 21W |
| Peak Input Power (W) | |
| Peak Input Power (W) | 220W |
| Impedance (Ω) | |
| Impedance (Ω) | 4Ω |
