Kenwood KFC-1366S

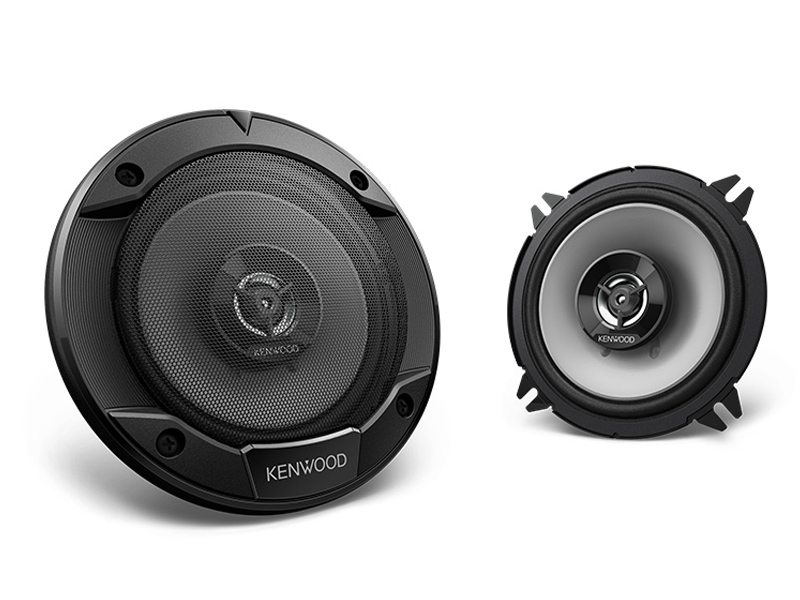

Kenwood 5.25" Coaxial Speaker - KFC-1366S



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Our Price $99.00 CAD
Buy Online
Availability
Schedule Delivery

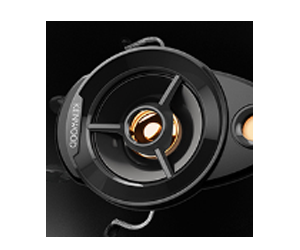

Sound Field Enhancer
To improve sound quality

Enlarged magnet circuit
To realize clear sound

Only 5/16"of mounting height
To fit for wider car selection

Peak Input Power
250W


Rated Input Power
30W Impedance 4 ohms


Woofer Features
5-1/4inch PP Cone


Tweeter Features
1inch Balanced Dome Tweeter


Specifications
Sensitivity: 91 dB / W / m
Frequency Response: 40 Hz - 22k Hz
Cutout Diameter: 4-7/16inch
Mounting Depth: 1-11/16inch
Gross Weight: 2.1lbs
Weight of Magnet (Woofer): 0.2lbs

Specification
Carton Box4 Color L 312.0mm W 180.0mm D 86.0mm
ACCESSORYGrille *2
CROSSOVER FREQUENCY-
Impedance4ohms
FREQUENCY RESPONSE40Hz- , 22Hz
SENSITIVITY91db / W at 1m
Power Handling
Rated Power30W
Peak Power250W
Weight
Weight of Magnet102g , 0.4oz
Gross Weight970g , 2.1lbs
without Grille (pc.)350g , 0.8lbs
with Grille (pc.)410g , 0.9lbs
Woofer (Unit)
Mounting Depth43.5mm , 1-11/16in
Depth (w/o_Gr)50.8mm , 2in
Cutout Diameter112.0mm , 4-7/16in
Depth (w_Gr)66.5mm , 2-5/8in
Height (w/o_Gr)130.0mm , 5-1/4in
Height (w_Gr)157.0mm , 6-3/16in
Width (w/o_Gr)130.0mm , 5-1/4in
Width (w_Gr)157.0mm , 6-3/16in
Tweeter
DiaphragmPEI Balanced Dome
Size25mm , 1in
Woofer
MagnetFerrite , φ60*t10
BasketSteel : Black
SurroundCloth
DiaphragmPP Cone
Size130mm , 5.25in
