| Our Price | $99.00 CAD |
Frequency Response 35Hz - 22kHz
Mounting Depth 1-11/16”
Sound Field Enhancer
To improve sound quality
Enlarged magnet circuit
To realize clear sound
Only 5/16"of mounting height
To fit for wider car selection
Peak Input Power
300W
Rated Input Power
30W Impedance 4 ohms
Woofer Features
6-1/2inch PP Cone

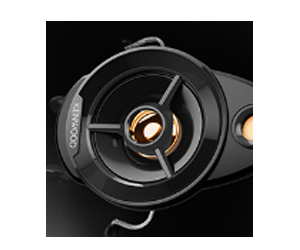

Tweeter Features
1inch Balanced Dome Tweeter
Specifications
Sensitivity: 92 dB / W / m
Frequency Response: 35 Hz - 22k Hz
Cutout Diameter: 4-7/8inch
Mounting Depth: 1-11/16inch
Gross Weight: 2.3lbs
Weight of Magnet (Woofer): 0.2lbs
| Diaphragm | |
|---|---|
| Diaphragm | Balanced Dome , Silver |
| Magnet | |
| Magnet | Ferrite , φ80xt10 |
| Surround | |
| Surround | Cloth |
| Size | |
| Size | 160mm , 6.5in |
| Diaphragm | |
| Diaphragm | PP , Silver |
| Frequency Response (Hz) | |
| Frequency Response (Hz) | 40-22000Hz |
| Sensitivity (dB at 1m) | |
| Sensitivity (dB at 1m) | 90dB |
| RMS Input Power (W) | |
| RMS Input Power (W) | 30W |
| Peak Input Power (W) | |
| Peak Input Power (W) | 300W |
| Impedance (Ω) | |
| Impedance (Ω) | 4Ω |
| Screw sets | |
| Screw sets | Tapping Screw , φ4x25*8pcs |
| Grille Assy | |
| Grille Assy | 2pcs |
| Gross Weight | |
| Gross Weight | 1308 g , 2.9 lbs. |
| Weight of Woofer Magnet | |
| Weight of Woofer Magnet | 220 g , 7.8 oz. |
| without Grille (pc.) | |
| without Grille (pc.) | 559 g , 1.2 lbs. |
| witho Grille (pc.) | |
| witho Grille (pc.) | 623 g , 1.4 lbs. |
| Mounting Depth | |
| Mounting Depth | 43.2 mm , 1-11/16 in. |
| Tweeter Height | |
| Tweeter Height | 8 mm , 5/16 in. |
| Cutout Diameter | |
| Cutout Diameter | Φ123.5 mm , Φ4-7/8 in. |
| Height (w/o_Gr) | |
| Height (w/o_Gr) | 159.8 mm , 6-5/16 in. |
| Height (w_Gr) | |
| Height (w_Gr) | 170.0 mm , 6-11/16 in. |
| Width (w/o_Gr) | |
| Width (w/o_Gr) | 159.8 mm , 6-5/16 in. |
| Width (w_Gr) | |
| Width (w_Gr) | 170.0 mm , 6-11/16 in. |
| Specification | |
| Width (w_Gr) | 170.0 mm , 6-11/16 in. |
| Size | |
| Size | 25mm , 1 in. |
| Magnet Material | |
| Dimension | Neodymium , 170.0 mm |
| Magnet Material | Neodymium |
