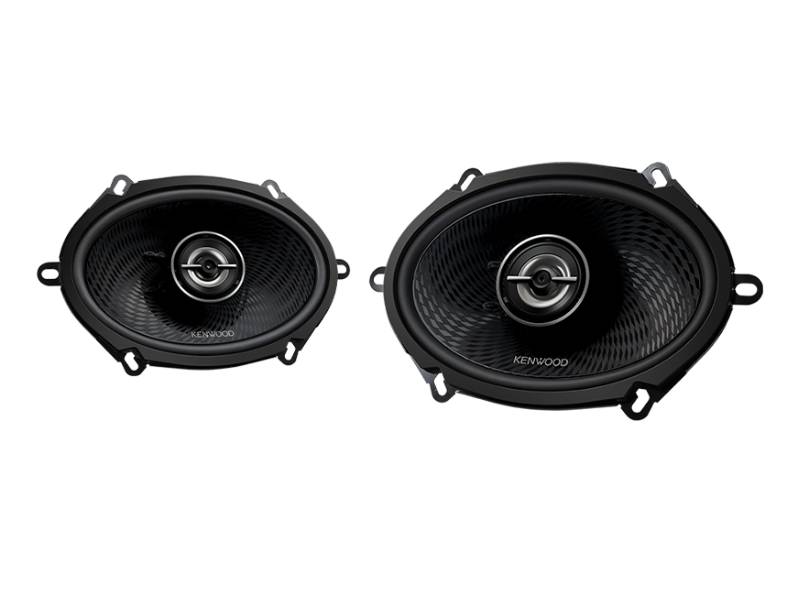

Kenwood 5x7" Oval Custom Fit 4 Way Speakers - KFC-C5798RS
You may also like
- Peak Power 320W
- RMS 80W
- Frequency Response 69Hz -20kHz
- Diamond Array Pattern Woofer Cone
- Acoustic Sound Harmonizer
- Sound Field Enhancer

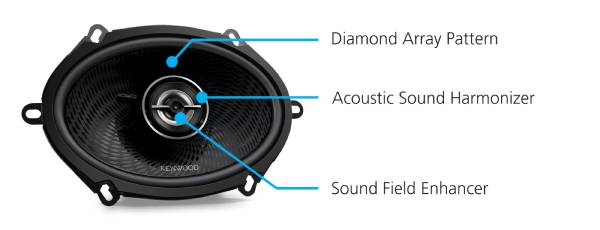

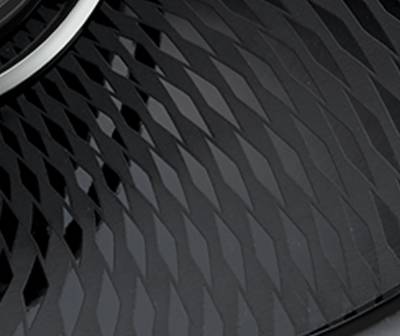

Diamond Array Pattern
Enhances sound and reduces distortion.

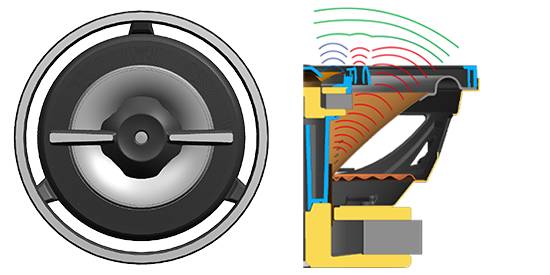

Acoustic Sound Harmonizer
Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.
Sound Field Enhancer
This unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.

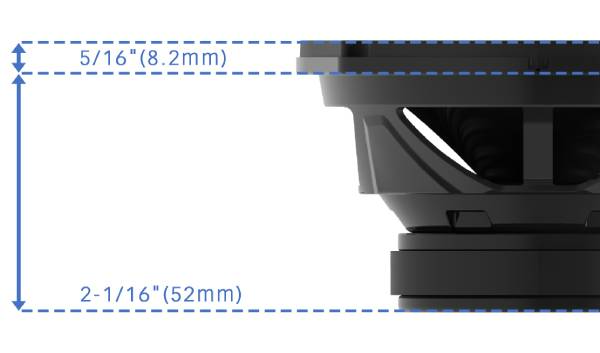

Factory Location Fit
The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.

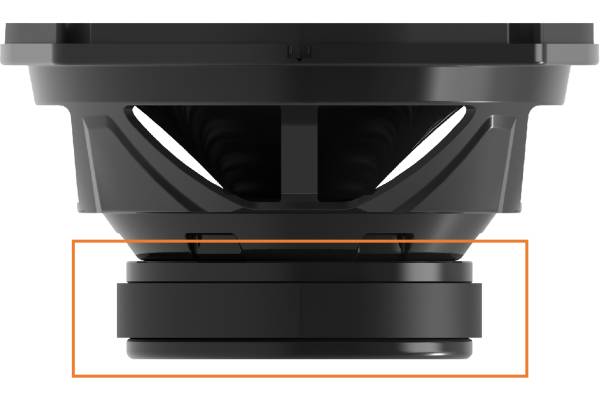

Black Painted Yoke and Plate
By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in temperature reduction of the voice coil and improved durability.

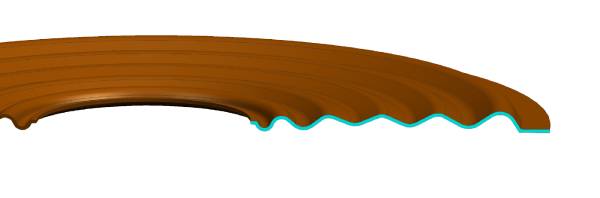

Optimized Woofer Damper Shape
Stress leveling points increase durability and provide a smoother sound response.
| Accessory | |
|---|---|
| Warranty Card | 1pc |
| GRILLE ASSY | - |
| Accessory - SCREW SETS | |
| Tapping Screw | Φ4x30 - 8pcs |
| Speed Nut | Φ4 - 8pcs |
| Speaker Cord | 0.3m - 2pcs |
| Colllar | Φ4 - 8pcs |
| Tweeter | |
| Magnet | Neodynium |
| Size | 30mm |
| Diaphragm | Balanced Dome |
| Woofer | |
| Ferrite | 75xt10 |
| Steel | Black |
| Basket | Steel |
| Surround | Rubber |
| 138x195mm | 5x7inch |
| KENWOOD LOGO | Pad Printing |
| PP Cone | Black Colorw/ Diamond ArrayPattern |
| CTA Spec (CTA-2031 Compliant) | |
| FREQUENCY RESPONSE | 69-20000Hz |
| SENSITIVITY | 88dB/ W at 1 m |
| RMS POWER | 80W |
| ELECTRICAL | |
| PEAK INPUT POWER | 320W |
| IMPEDANCE | 4 |
