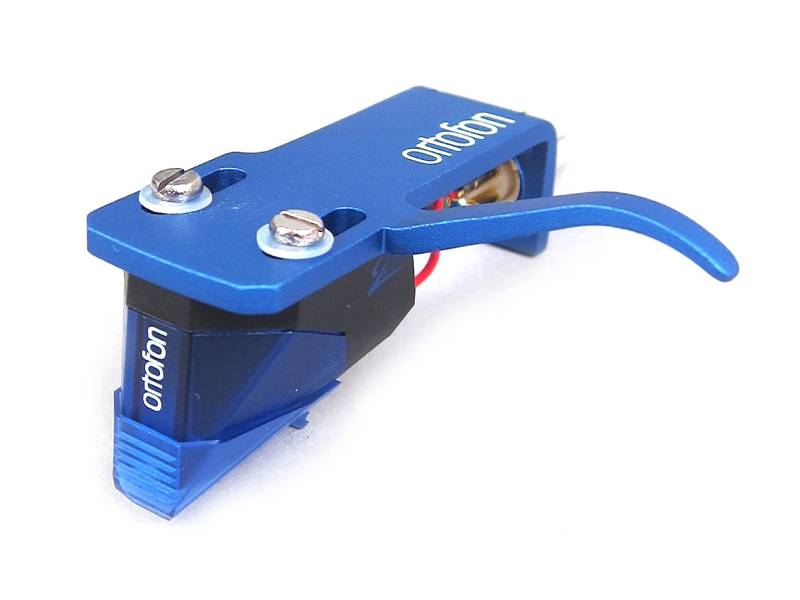

Ortofon 2M Blue on SH-4 Blue

Ortofon 2M Blue Premounted on Headshell - 2M Blue on SH-4 Blue



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Our Price $309.00 CAD
Availability
Schedule Delivery

Literature

The goal of any cartridge should be to reproduce sound as closely to the artist's vision as possible, and the 2M Blue takes you further on this journey toward authenticity. The 2M Blue is mounted on our classic SH-4 headshell, making the setup process easy.



Travelling to the moment the music was recorded

Accuracy level

The goal for any cartridge should be to reproduce the sound as close to the artist's vision as possible, and the 2M Blue takes you further on this journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.



It's never been easier to experience

Compatibility

Experience the convenience of the 2M Blue Premounted – a smart and refined choice for those seeking straightforward installation and effortless replacement on their S-shaped tonearm. The SH-4 headshell's resilience and stability are enhanced by its slender and refined design. A robust yet lightweight construction, coupled with an ergonomic, extended finger lift, ensures easy handling and pickup.



Nude Elliptical stylus

Stylus

The Nude diamond is cut in an Elliptical shape, and when it hits the groove it is like travelling through both space and time to the very moment the music was recorded.


Specifications
Channel balance at 1 kHz1.5 dB
Output voltage at 1 kHz, 5cm/sec5.5 mV
Channel seperation at 1 kHz25 dB
Channel seperation at 15 kHz15 dB
Frequency response 20 Hz - 10 kHz2 / - 1 dB
Tracking ability at 315Hz at recommended tracking force80 µm
Compliance, dynamic, lateral20 µm/mN
Stylus typeNude Elliptical
Stylus tip radiusr/R 8/18 µm
Tracking force range1.6-2.0 g (16-20 mN)
Tracking force, recommended1.8 g (18 mN)
Tracking angle20°
Internal impedance, DC resistance1.3 kOhm
Cartridge colourBlack/Blue
Cartridge weight7.2 g
Premounted cartridge weight16.7 g
Reccomended load resistance47 kOhm
Internal inductance700 mH
Recommended load capacitance150-300 pF
