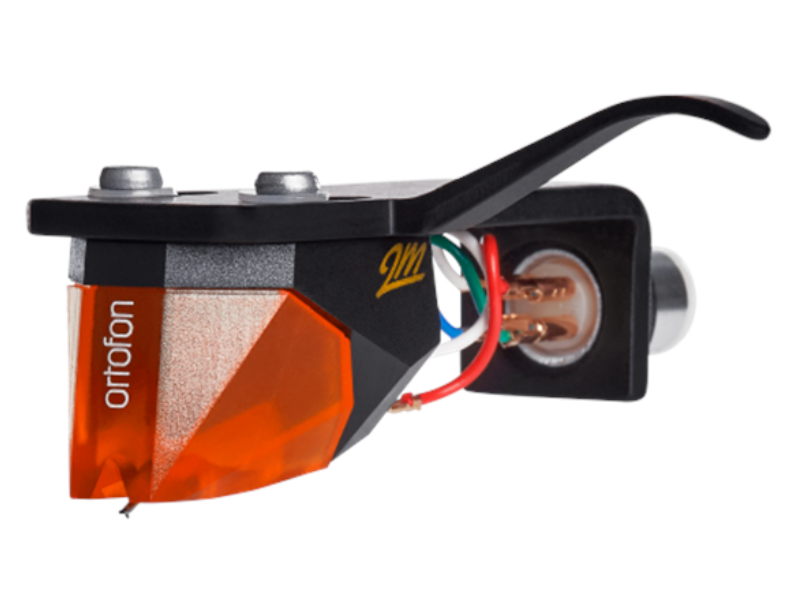

Ortofon 2M Bronze on SH-4 Black

Ortofon 2M Bronze Premounted with Black Headshell - 2M Bronze on SH-4 Black



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Our Price $755.00 CAD
Availability
Schedule Delivery

Literature

With the 2M Premounted, it’s never been easier to experience

The 2M Premounted is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm. The quality of the SH-4 headshell is sturdy and rigid, yet the design emphasizes a slim and delicate form factor. The strong, lightweight headshell has an ergonomic design with a long finger lift that is easy to pick up.

Features:

  • Premounted on our popular SH-4 Black headshell.
  • Easy and direct mount on S-shaped tonearms with universal mount.
  • Correct Baerwald alignment with tonearms with universal mount.
Specifications
Compliance, dynamic, lateral 22 µm/mN
Stylus type Nude Fine Line
Stylus tip radius r/R 8/40 µm
Tracking force range 1.4-1.7 g (14-17 mN)
Tracking force, recommended 1.5 g (15 mN)
Tracking angle 20°
Internal impedance, DC resistance 1.2 kOhm
Internal inductance 630 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 150-300 pF
Cartridge colour, body/stylus Black/Bronze
2M Premounted cartridge weight 16.7 g
Tracking ability at 315Hz at recommended tracking force 80 µm
Frequency response 20-20.000 + 2 / - 0 dB
Channel separation at 1 kHz 26 dB
Channel separation at 15 kHz 15 dB
Output voltage at 1000 Hz, 5cm/sec. 5 mV
Channel balance at 1 kHz 1 dB
