Ready for the next step!

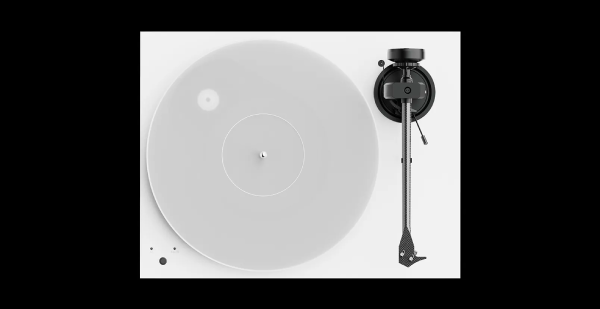

Welcome to a new generation of X-Line turntables
Unleash the full power
Simply upgrade your X1 B to a MC cartridge, connect it with one of our new True Balanced Phono Cables to your phono preamp and benefit from an interference-free signal with increased dynamics & lower noise level.

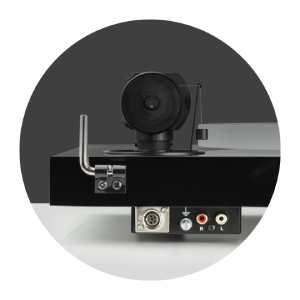

Mini XLR Output
One cable connects it all
We offer a wide range of balanced phono cables with different connectors to fit all our phono preamps. If you want to use your X1 B with a Phono Box S3 B you need a „Connect it Phono Mini XLR / Mini XLR“.

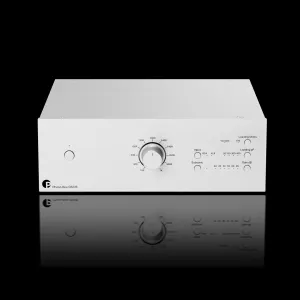

A perfect match!
Pair your X1 B with one of our new balanced Phono Boxes and benefit from a fully balanced signal transmission to your phonp preamplifier. Check out our new Phono Box S3 B & DS3 B for further information.

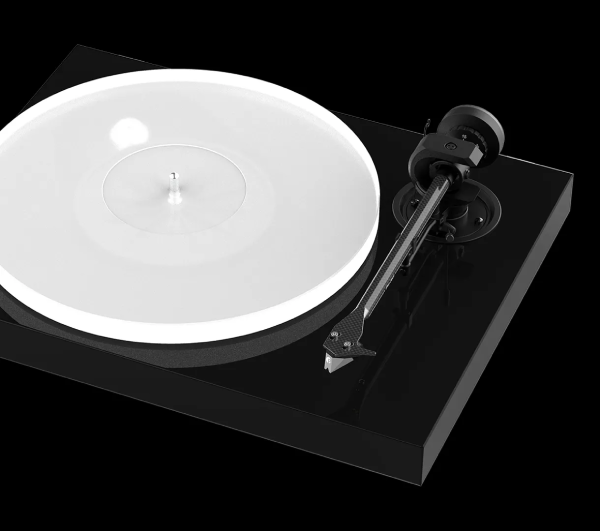

8,6'' Carbon-Aluminium Tonearm
Finished as a one-piece, with no resonance-inducing headshell, the X1 is available with premounted high quality Pick it S2 MM cartridge. Its superstiff and perfectly damped construction provides a perfect tracking of the record groove.
Stainless steel platter-bearing with soft brass bushing and teflon mirrors together with a new motor suspension for better decoupling of the motor vibrations to tonearm and chassis ensure lowest rumble and noise.
Real high-end features.

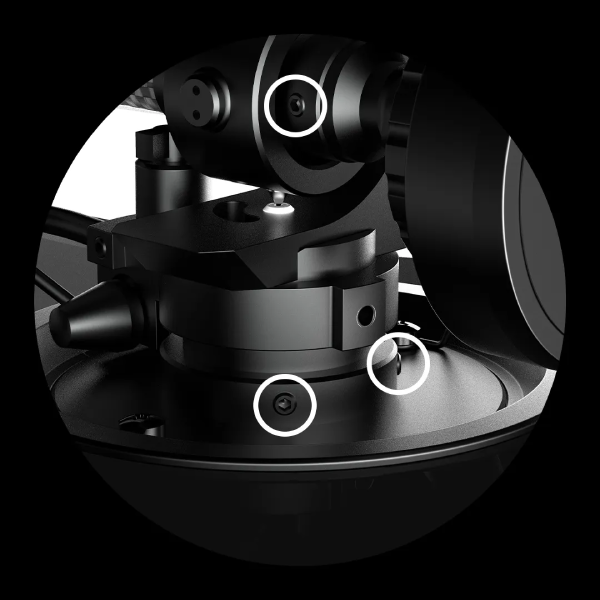

Azimuth & VTA
The X1 comes with fully adjustable Azimuth & VTA. It offers you the possibility to modify your X1 as you want it.

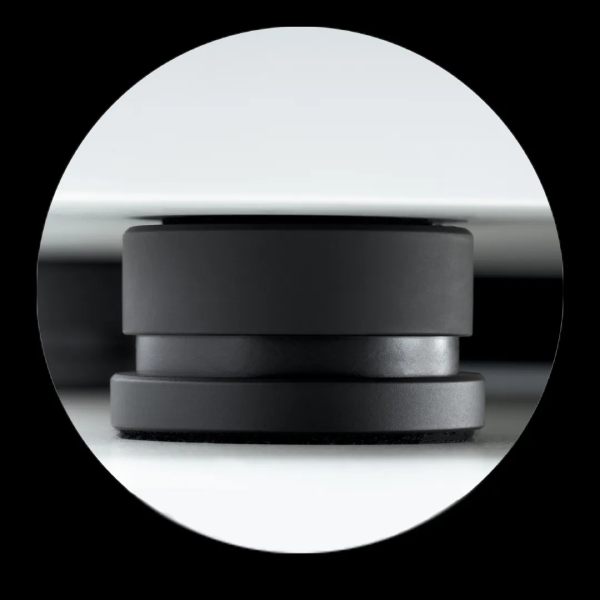

Damped & height adjustable
The three height adjustable damped aluminium feet guarantee the perfect stand & massively reduce risk of acoustical feedback.

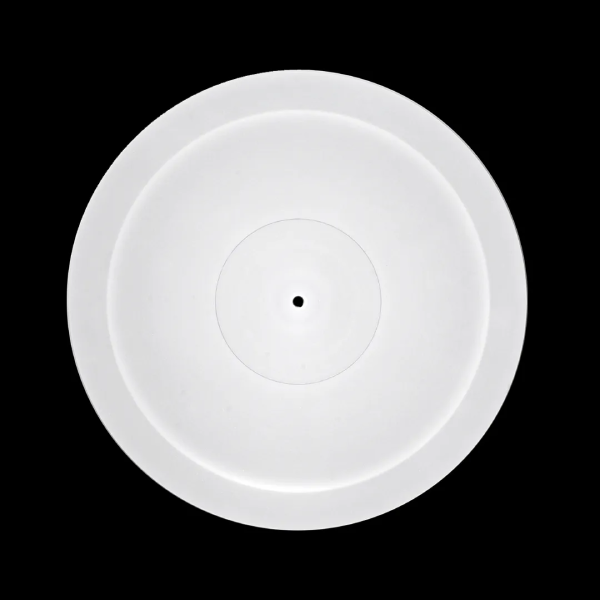

1,5 kg Platter
Resonance free acryl
The perfect platform to place your precious vinyl records, guaranteeing absolute reliability in its performance and sonic character.

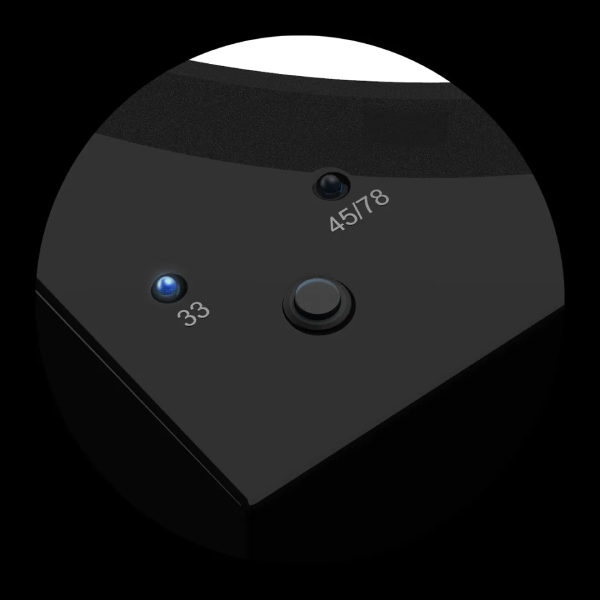

High precision motor control
A sophisticated DC/AC generator board generates clean and stable power to drive the motor. Easily change speed with the push of only a single button.
|7 kg net / 9.5 kg gross weight
|415 x 125 x 335 mm (WxHxD)
|5,0 watts max /< 0.3 watt standby
|15volts DC /0,8A power supply, Dust cover, Connect it E Phono cable, feltmat
|Tracking force range
|0 - 30mN
|Effective tonearm mass
|Effective arm length
|8,6” carbon/aluminium sandwich
|20mm thick, 1.5 kg heavy acryl
|Wow & flutter
|33: 0.15% 45: 0.13%
|33, 45, 78 (electronic speed change)
|33: 0.30% 45: 0.25%
