Rockford Fosgate Front Audio Roof for Select 2018+ Polaris Ranger 2-Door Models - RNGR18-ROOF2M2

The Ranger audio roof systems were developed to provide performance never heard before in a side by side. It’s our loudest all-in-one system, featuring simple plug and play installation and built to stand up to the elements.
All-in-One Audio Performance: Equipped with 4, 8-inch speakers, a 1500-watt amplifier and a 2.7-inch source unit all in a one-piece design; making the perfect blend of epic performance and simple installation.
Element Ready™: Purpose Built for the outdoor environment, Rockford’s Element Ready™ products are built to stand up to Water, Salt, and UV, making sure your products stand the test of time.
Adventure Tested: No matter where the adventure leads surround yourself with sound, all while the entire audio system is elevated out of the elements. With the system being overhead, all the audio stays above the water line, so fording water or deep mud won’t be a problem.
Color Optix™ Lighting: Adjust your own bright, wide, and limitless lighting experience with the built-in Rockford Fosgate Color Optix™ plug-and-play controller and App.
Overview
The RNGR18-ROOF2M2 is a high-output, 4-speaker, 1,500-watt amplified front audio roof.
Components:
- (1) Element Ready™ Source Unit
- (4) 8" M2 Color Optix™ Speakers
- (1) 1,500 Watt Amplifier
- (1) Built-In Dome Light
- (6) Rocker Switches• (1) Blank Rear Cap
Installation:
- (2) Hours Typical
Upgrade This Kit:
- (1) RNGR18-CAPM2 rear audio cap
- (1) RNGR18-FWE 10" subwoofer
FEATURES AT A GLANCE
- Plug and Play design for easy installation
- Direct bolt into vehicle using OEM mounting holes
- Bluetooth™ connectivity with A2DP wireless audio streaming
- Complete all-in-one roof audio solution
- Integrated driver/passenger LED dome light
- M2D2-10IB: 10" Color Optix™ subwoofers - Black
- M5-1500X5: 1500 Watt 5-Channel IPX6 Element Ready™ Amplifier
- Upgradeable with RNGR18-CAPM2 loaded rear cap for rear firing audio
- Upgradeable with RNGR18-FWE Color Optix 10" subwoofer/enclosure
- Includes unloaded rear cap for structural support
- PMX-3: Compact AM/FM/WB Digital Media Receiver 2.7" LCD w/ Backup Cam & SiriusXM® Ready
- Compatible with Northstar power windows
- Prewired for LED light bar (30" min - 40" max)
- Requires minimal disassembly and drilling for installation

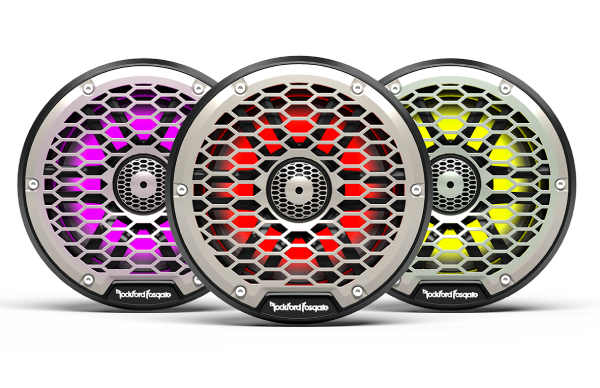

- M2-8B: 8" Color Optix™ Marine Grade 2-Way Speakers
- Rocker switches: main power, backup camera, cargo lights, dome light, rear audio, light bar
- Sport grilles featured on all speakers
- Element Ready™ to withstand the harsh outdoor environment
- Durable HDPE (High Density Poly Ethylene) material
- 2-Year Warranty
Technologies

Rockford Factory Fit & Finish
Designed and engineered to compliment the factory fit and finish of your vehicle. These components are purpose-built to the exact specifications to ensure best-in-class fitment and look.

Element Ready™ | Motorsports
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.

Color Optix™ Control
Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App (sold separately.)
| Specifications | |
|---|---|
| Speaker Model | M2-8B |
| Amplifier Model | M5-1500X5 |
| Source Unit | PMX-3 |
| Speaker Qty | 4 |
| Amplifier Type | Internal |
| Total Power | 1,500 Watts |
| Mounting Hardware | Yes |
| Grille/Trim Ring Included | Yes |
| Included In The Box | (1) Front roof assembly (1) Blank rear cap (1) 1130-77294-01 AP pack: -(1) Harn. 4AWG GND -(1) Harn. 4AWG B+ -(1) Harn. sub -(1) Harn. LED bar -(2) Bracket roof to ROPS -(1) Padded bracket RH -(1) Padded bracket LH -(2) Padded bracket rear cap -(2) Padded clamp -(1) Ball-end Allen -(1) Holesaw 45mm OD x 85mm -(1) Grommet 44.5 OD x 40 ID -(2) Gasket 35mm OD, 16.6mm ID -(2) Nut lock M6x1, 14.2 OD -(6) Ziptie tree 7.3 x 162 -(4) Split washer M8 2.1mm -(4) T40 Torx screw, M8x1.25, 18mm -(6) Hex nut lock M8x1.25 -(2) Standoff -(4) Washer 14.75mm OD, 8.5mm ID -(4) Hex screw M8x1.25,28mm -(2) Spacer top hat 40.8mm -(2) T40 Torx screw M8x1.25, 68mm -(2) Bolt M8x1.25, 83mm -(2) Washer 23mm OD, 8.60 ID |
| Light Bar Fuse: | 15A |
| Shipping Dimensions: | 10.75" x 56.50" x 61.25" 27.3 cm x 143.5 cm x 155.6 cm |
| Shipping Weight: | 122 Lbs. (55.3 Kg) |
