JL AUDIO C3-525cw

JL AUDIO 5.25 Inch Single Convertible Component Woofer - C3-525cw



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Our Price $259.95 CAD / Each
Availability
Schedule Delivery

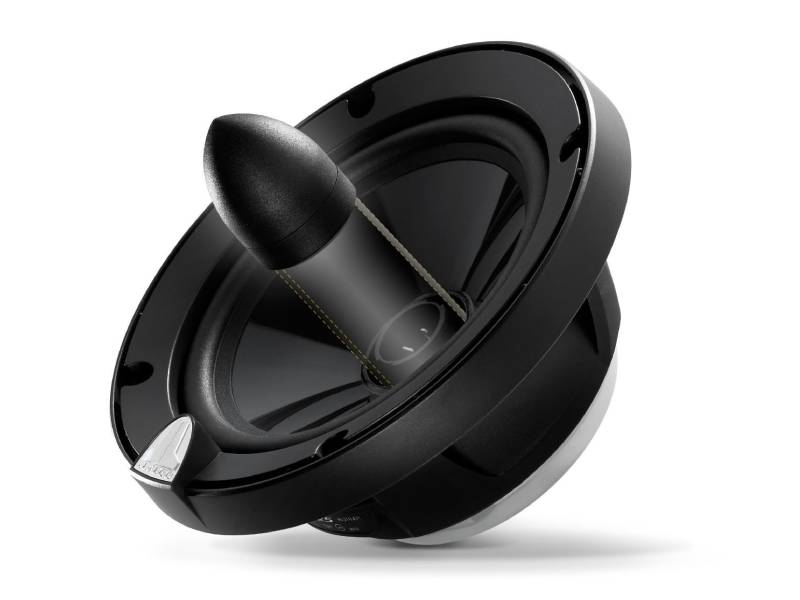

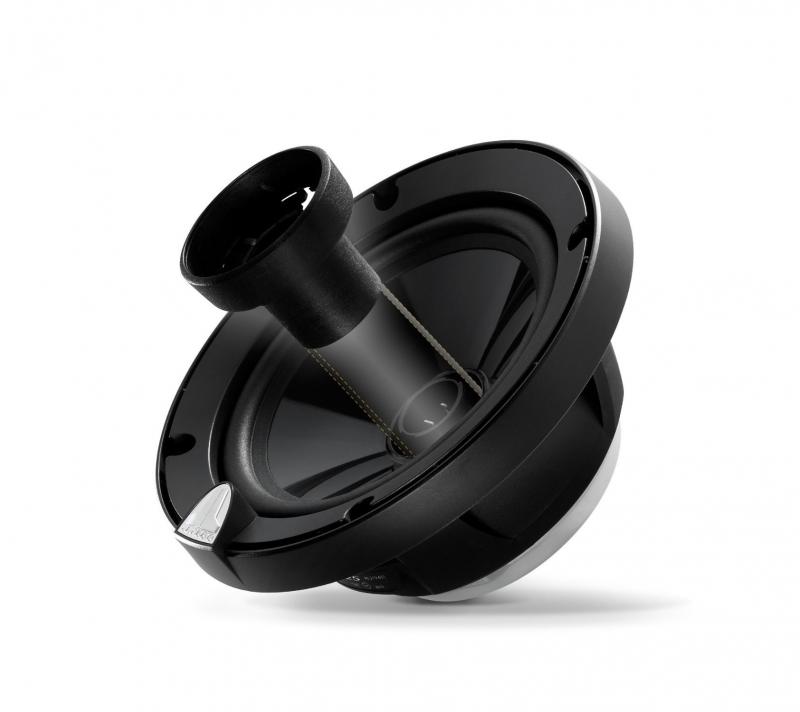

5.25-inch (130 mm) Convertible Component Woofer (Single)

There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

The C3-525cw is a 5.25-inch (130 mm) component woofer with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Clean and Powerful

Sold individually.

Includes Component Phase Plug and Tweeter Post (Tweeter sold separately).

General Specifications

System Efficiency 90.0 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 48 Hz - 25 KHz ± 3 dB

Woofer Physical Specifications

Frame Outer Diameter* (A) 5.80 in / 147 mm
Grille Tray Outer Diameter (B) 6.00 in / 152 mm
Motor Outer Diameter** (C) 3.38 in / 86 mm
Frontal Coaxial Tweeter Protrusion*** (D) 0.69 in / 18 mm
Frontal Grille Protrusion**** (E) 1.00 in / 25 mm
Mounting Hole Diameter (F) 4.56 in / 116 mm
Mounting Depth (G) 2.27 in / 58 mm
