| Our Price | $259.95 CAD / Each |
6.5-inch (165 mm) Convertible Component Woofer (Single)

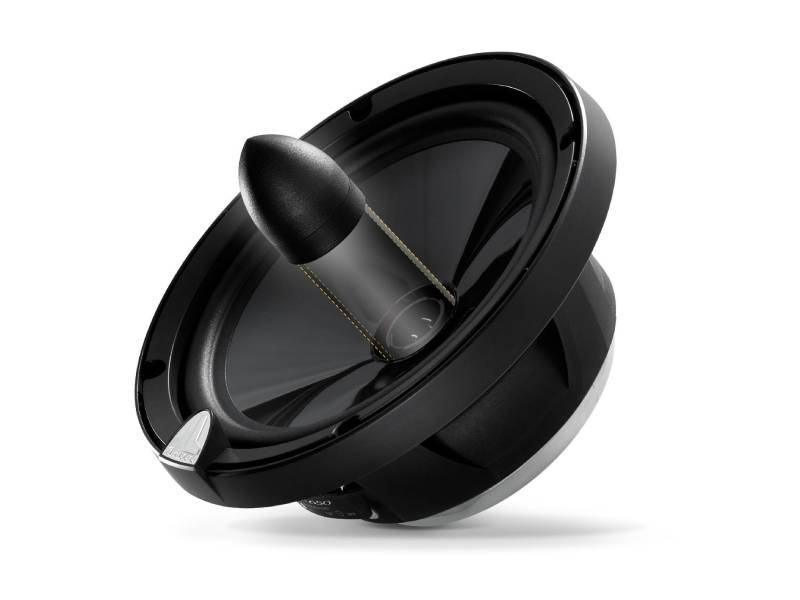

There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

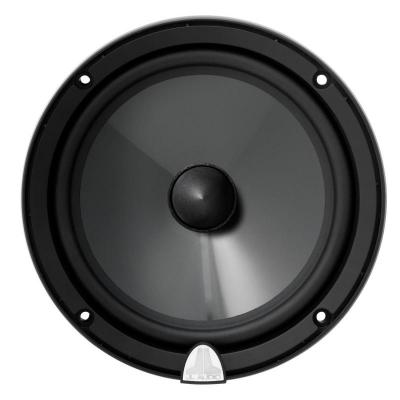

The C3-650cw is a 6.5-inch (165 mm) component woofer with an oversized 1.2-inch (30.5 mm) voice coil, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
A woofer grille is included, consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold individually.

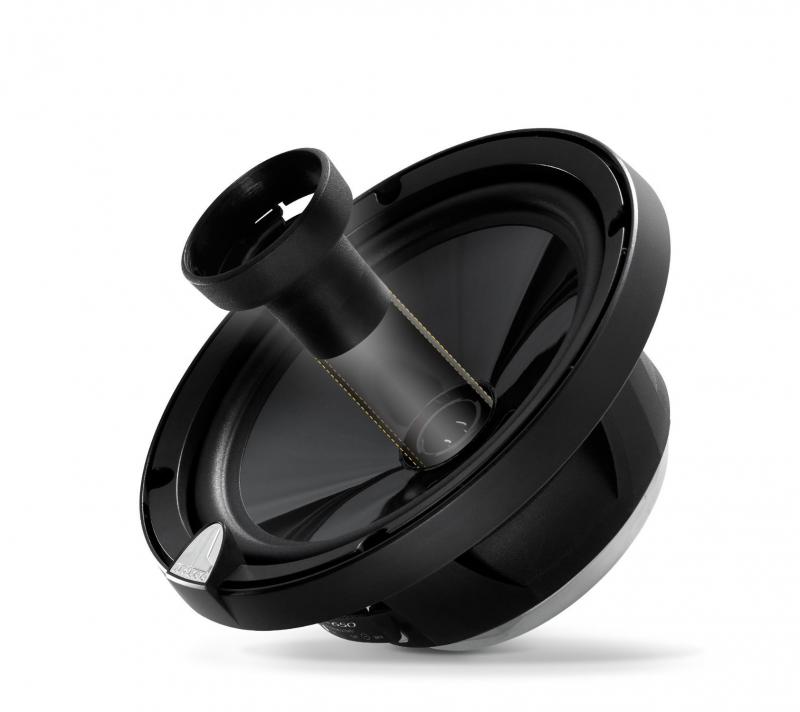

Includes Component Phase Plug and Tweeter Post (Tweeter sold separately).
General Specifications
| System Efficiency | 90.0 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 48 Hz - 25 KHz ± 3 dB |
Woofer Physical Specifications
| Frame Outer Diameter (A) | 6.50 in / 165 mm |
| Grille Tray Outer Diameter (B) | 6.74 in / 171 mm |
| Motor Outer Diameter (C) | 4.08 in / 104 mm |
| Frontal Coaxial Tweeter Protrusion* (D) | 0.75 in / 19 mm |
| Frontal Grille Protrusion** (E) | 1.03 in / 26 mm |
| Mounting Hole Diameter (F) | 5.56 in / 141 mm |
| Mounting Depth (G) | 2.55 in / 65 mm |
