JL AUDIO C6-650

JL AUDIO 6.5 Inch Two-Way Component Speaker System - C6-650



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Price$1,499.95
Savings$300.00
Our Price $1,199.95 CAD
Sale Ends : December 31, 2024
On Sale
Availability
Schedule Delivery

Literature

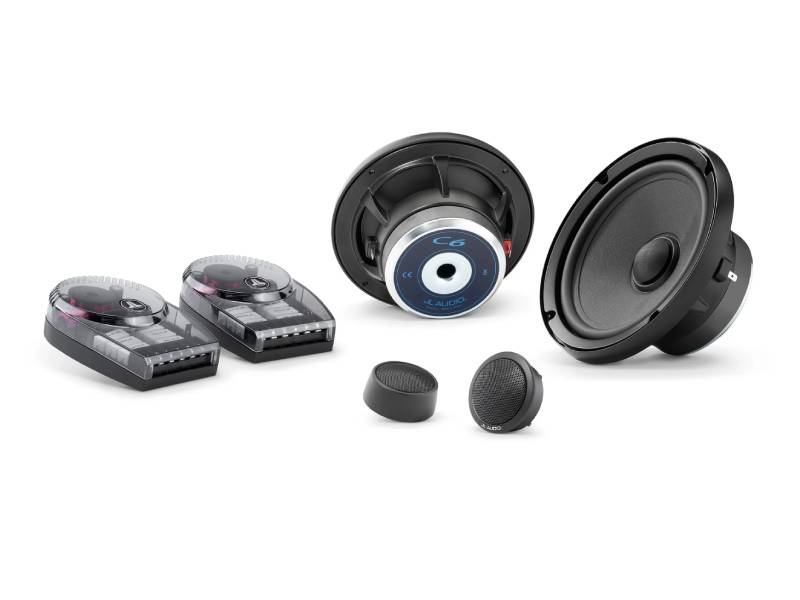

Two-way Component System: 6.5" (165 mm) Woofer, 1" (25 mm) Silk Dome Tweeter

Born from shared technologies used in our flagship C7 speakers, the C6-650 component system combines the smoothness and transparency of a premium silk dome tweeter with a top-flight component woofer to create a loudspeaker system with exceptional refinement and dynamic capability.

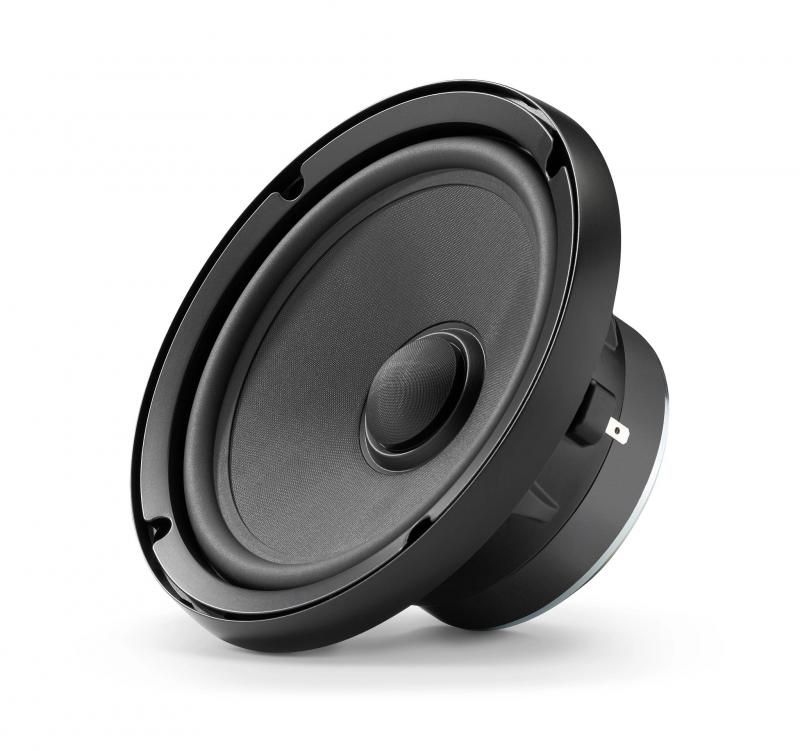

Benefiting from vast woofer design experience and advanced modeling systems of JL Audio, the 6.5" (165 mm) C6 component woofers feature purpose-engineered, cast alloy frames outfitted with our Elevated Frame Cooling technology. A DMA-optimized, forged and machined motor system generates outstanding midbass impact with ultra-low distortion.

The 1" (25 mm) C6 component tweeters feature edge-driven pure silk dome diaphragms for smooth high-frequency performance with remarkable off-axis response and damping. Neodymium motors and ferrofluid cooling provide high-magnetic flux and improved reliability with extended response from a very compact motor system. Surface- and flush-mount fixtures are included to fit a wide variety of installation applications.

Premium passive crossover networks are included with each C6-650 component system. Featuring four levels of tweeter adjustment, these outboard filter networks are equipped with premium polyester film and electrolytic capacitors as well as low-loss air-core inductors — all accessible beneath a protective, polycarbonate cover. Each C6 passive crossover also includes an advanced electronic tweeter protection circuit designed to minimize the possibility of tweeter failure.

C6 Woofer Features:

  • Forged and machined motor plates with DMA-optimized geometries to create linear motor force under power, leading to outstanding midbass impact, linearity and low distortion
  • Large diameter, linear profile, flat spider for linear compliance and outstanding excursion capability
  • Center cap designed to optimize the high-frequency response of the woofer for seamless transition to a tweeter's response
  • Oversized voice coil for extended power handling capability, minimizing thermal compression and distortion at higher listening levels
  • Cast alloy frame with our Elevated Frame Cooling feature• Includes fine mesh grilles

C6 Tweeter Features:

  • Edge-driven pure silk dome design delivers smooth high-frequency performance, with excellent off-axis response and damping
  • Neodymium motor delivers high magnetic flux from a compact motor design
  • Ferrofluid cooling and damping improves reliability and response smoothness
  • Includes surface- and flush-mount fixtures

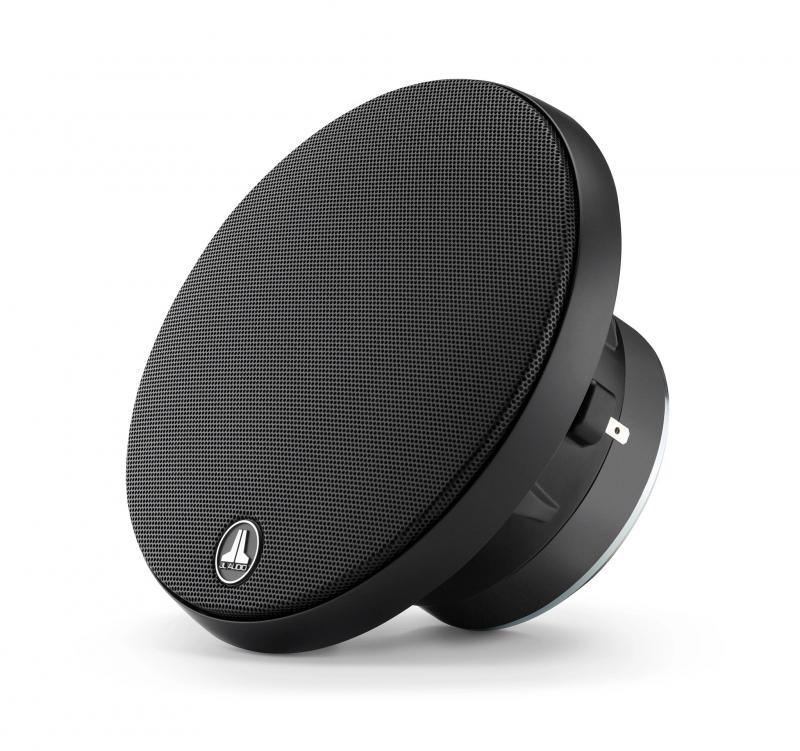

Woofer grilles are included, each consisting of a black grille tray and a fine steel mesh grille with an electroformed JL Audio badge logo.

Speakers are sold as a pair.

General Specifications

Continuous Power Handling (RMS) 100 W
Recommended Amplifier Power (RMS) 25 - 150 W / Ch.
System Efficiency 87.37 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 53 Hz – 21 KHz ± 3 dB

Woofer Physical Specifications

Frame Outer Diameter* (A) 6.50 in / 165 mm
Grille Tray Outer Diameter** (B) 6.76 in / 172 mm
Motor Outer Diameter (C) 3.54 in / 90 mm
Frontal Coaxial Tweeter Protrusion (D) N/A
Frontal Grille Protrusion*** (E) 1 in / 25 mm
Mounting Hole Diameter (F) 5.46 in / 139 mm
Mounting Depth (G) 2.60 in / 66 mm

*Does not take into account mounting tabs**Does not take into account logo badge***Frontal grille protrusion measured from mounting surface

Tweeter Physical Specifications

Flush Mount Fixture Diameter (A1) 2.13 in / 54 mm
Surface Mount Fixture Diameter (A2) 2.11 in / 54 mm
Flush Mount Mounting Hole Diameter (B) 1.85 in / 47 mm
Flush Mount Mounting Depth (C) 1.85 in / 47 mm
Flush Mount Protrusion (D1) 0.30 in / 8 mm
Surface Mount Protrusion (D2) 1.04 in / 26 mm

Crossover Physical Specifications

Width (W) 3.36 in / 85 mm
Height (H) 1.44 in / 37 mm
Depth (D) 4.72 in / 120 mm
