Hertz SX200Neo

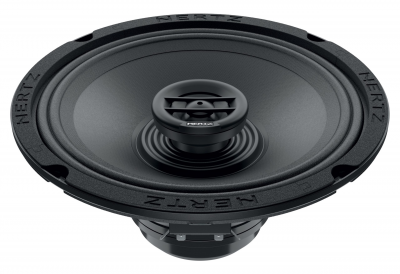

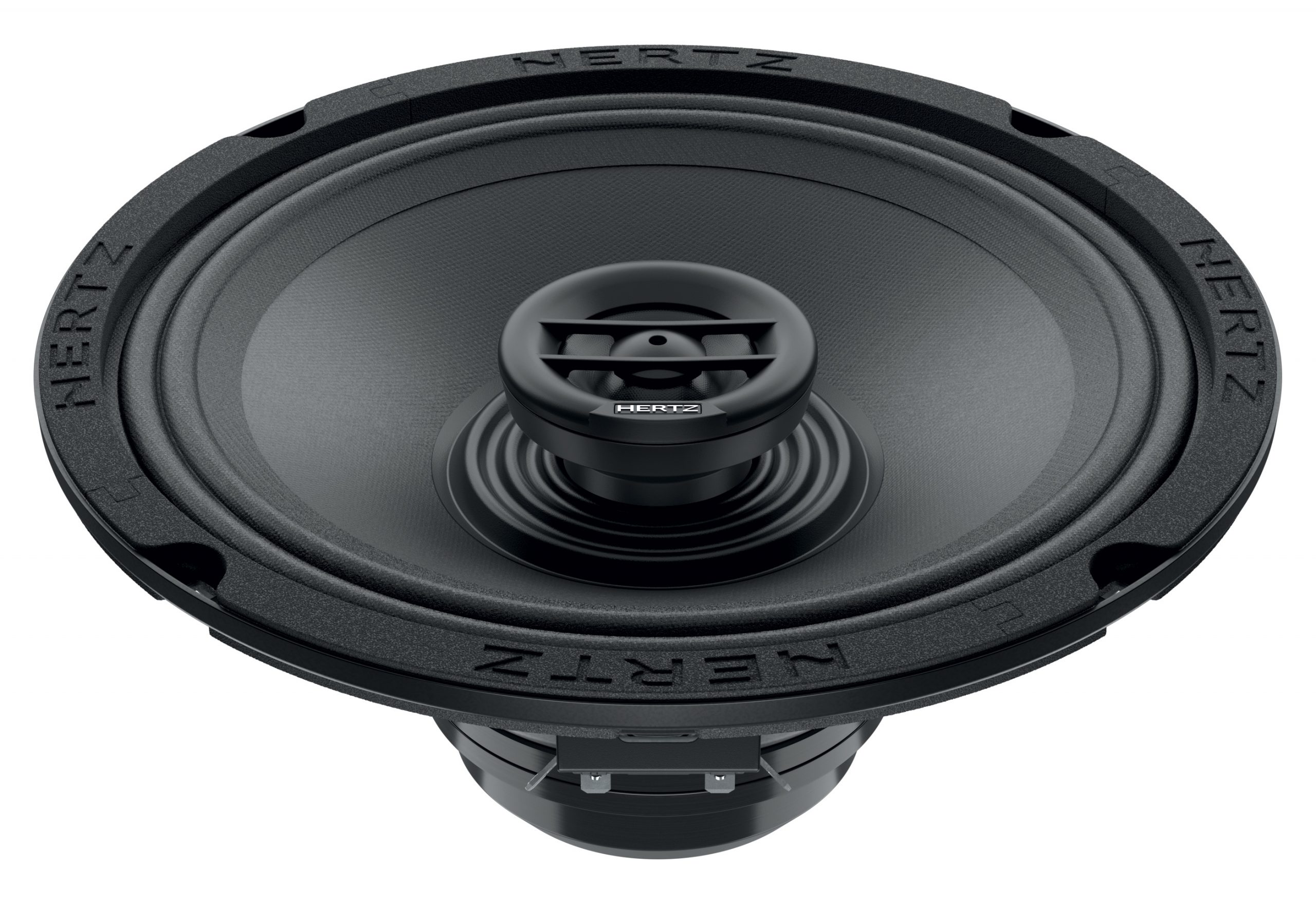

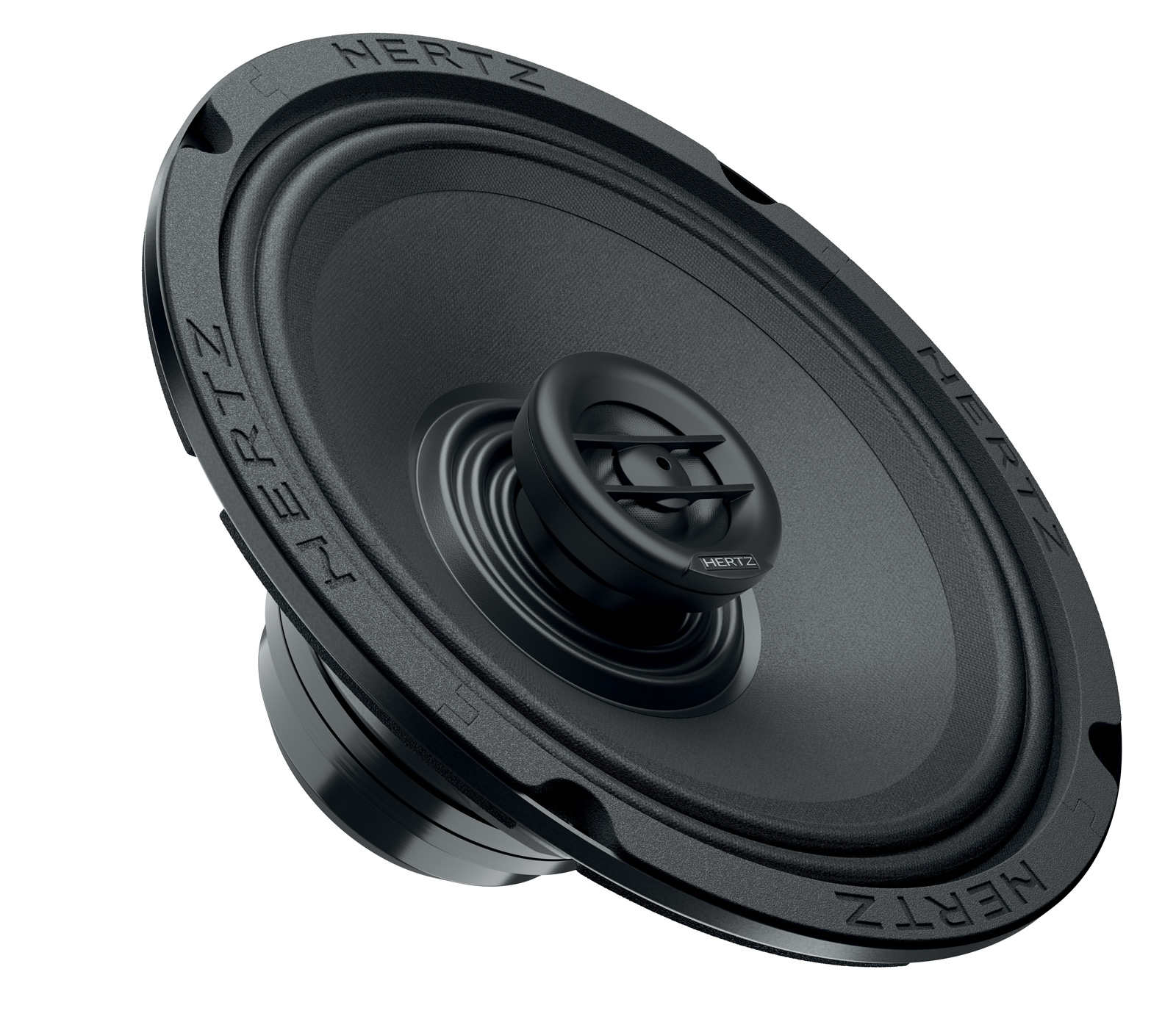

8" Hertz 2-Way NEO SPL Coaxial Speaker - SX200Neo



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Price$649.99
Savings$100.00
Our Price $549.99 CAD
Sale Ends : April 30, 2026
On Sale
Availability
Schedule Delivery

Literature

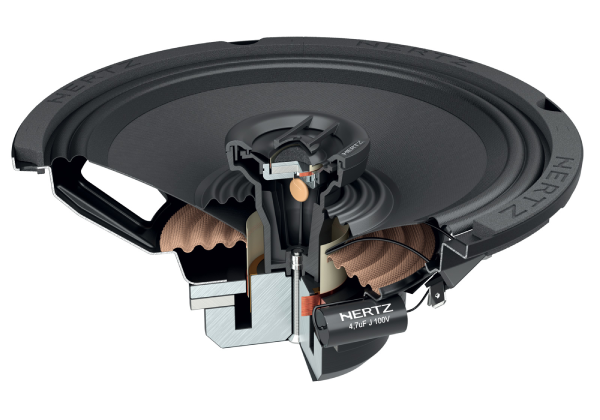

Totally new NEO SPL coaxial SX 200 NEO cone is made with nature-proof high stiffness pressed-paper featuring innovative water/humidity resistant and anti-UV treatments. The double layer copper voice coil, wound on polyamide former ensures unparalleled power handling. New motors units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance. SX 200 NEO features a large Hi-SPL 1.4” PEI dome tweeter with resettable solid-state protection circuit and a protective rubber gasket for high SPL and a safe outdoor use.

Features

  • 1. Nature-proof high stiffness pressed-paper cone featuring innovative water/ humidity resistant and anti-UV treatments.
  • 2. Durable Extreme SPL performance in a compact size & light-weight thanks to the N38 H Neodymium grade magnet.
  • 3. Unparalleled power handling delivered by the double layer copper voice coil, wound on polyamide former.
  • 4. Hi-SPL 1.4” Neodymium magnet PEI dome tweeter with resettable solid-state tweeter protection circuit.
  • 5. Double faston terminals allow daisy-chaining of multiple units and provide compatibility with most common motorcycle connections.

Technologies

NATURE PROOF

Compact and lightweight, the new spl neo systems are extremely loud and do not fear nature elements for an unlimited fun in every condition

TECHNICAL SPECS
ComponentSPL COAXIAL
Size mm (in.)200 (8)
Power Handling - Continuous W130
Power Handling - Peak W260
Impedance Ohm4
Depth mm (in.)82,8 (3.26)
Tweeter diaphragm mm (in.)Pei
Woofer Voice Coil Ø mm (in.)38 (1.5)
Tweeter Voice Coil Ø mm (in.)28 (1.1)
Frequency Response Hz100 ÷ 20k
Woofer Magnet size D x d x h mm (in.)80 x 50 x 6 (3.15 x 1.97 x 0.24)
Tweeter Magnet size D x h mm (in.)19 x 3 (0.75 x 0.12)
Weight of one speaker kg (lb.)1,32 (2.91)
Woofer MagnetSpecial Neodymium N38 H
Tweeter MagnetSpecial Neodymium N38 H
ConeWater repellent pressed paper
Electro-acoustic Specs
D mm168
Xmax mm2,7
Re Ohm3,3
Fs Hz103
Le mH0,07
Vas I9,70
Mms g17
Cms mm/N0,14
BL T*m8,2
Qts0,51
Qes0,54
Qms8,9
Spl dB99,5
