Klipsch CA800TW

Klipsch Outdoor Speaker CA800TW

Klipsch CA800TW

Klipsch Outdoor Speaker CA800TW

Klipsch CA800TB

Klipsch Outdoor Speaker CA800TB



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Our Price $699.00 CAD / Each
Sale Ends : January 31, 2025
On Sale
Our Price $699.00 CAD / Each
Sale Ends : January 31, 2025
On Sale
Our Price $699.00 CAD / Each
Sale Ends : January 31, 2025
On Sale
Buy Online
Availability
Schedule Delivery

Buy Online
Availability
Schedule Delivery

Buy Online
Availability
Schedule Delivery

More options

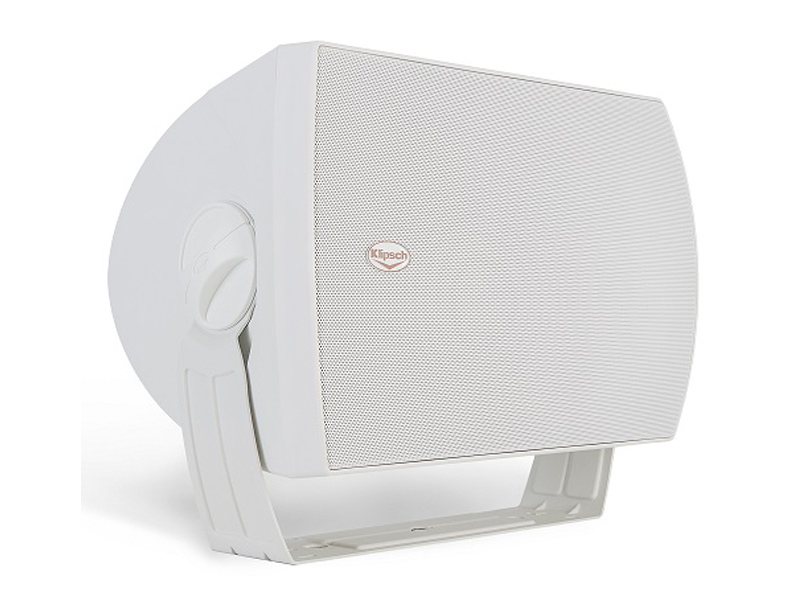

Perfect for foreground or background distributed sound applications in indoor or outdoor residential commercial or recreational environments, the compact full-range 70-volt CA-800T loudspeaker was designed for those who know better than to expect mediocre output.

  • Paintable UV-resistant ABS enclosure with rustproof aluminum grille
  • Very high sensitivity and power handling
  • Built-in 60-watt 70V/100V multi-tap transformer with 8-ohm bypass
  • 90 degree x 90 degree Tractrix Horn tweeter for clean clear highs
  • Supplied with C-style mounting bracket and stainless steel hardware

Building on the success of our popular CA-8T model which has been used in a countless number of high-profile installations all over the U.S. the CA-800T version features enhanced cosmetics added mounting flexibility and even better performance.

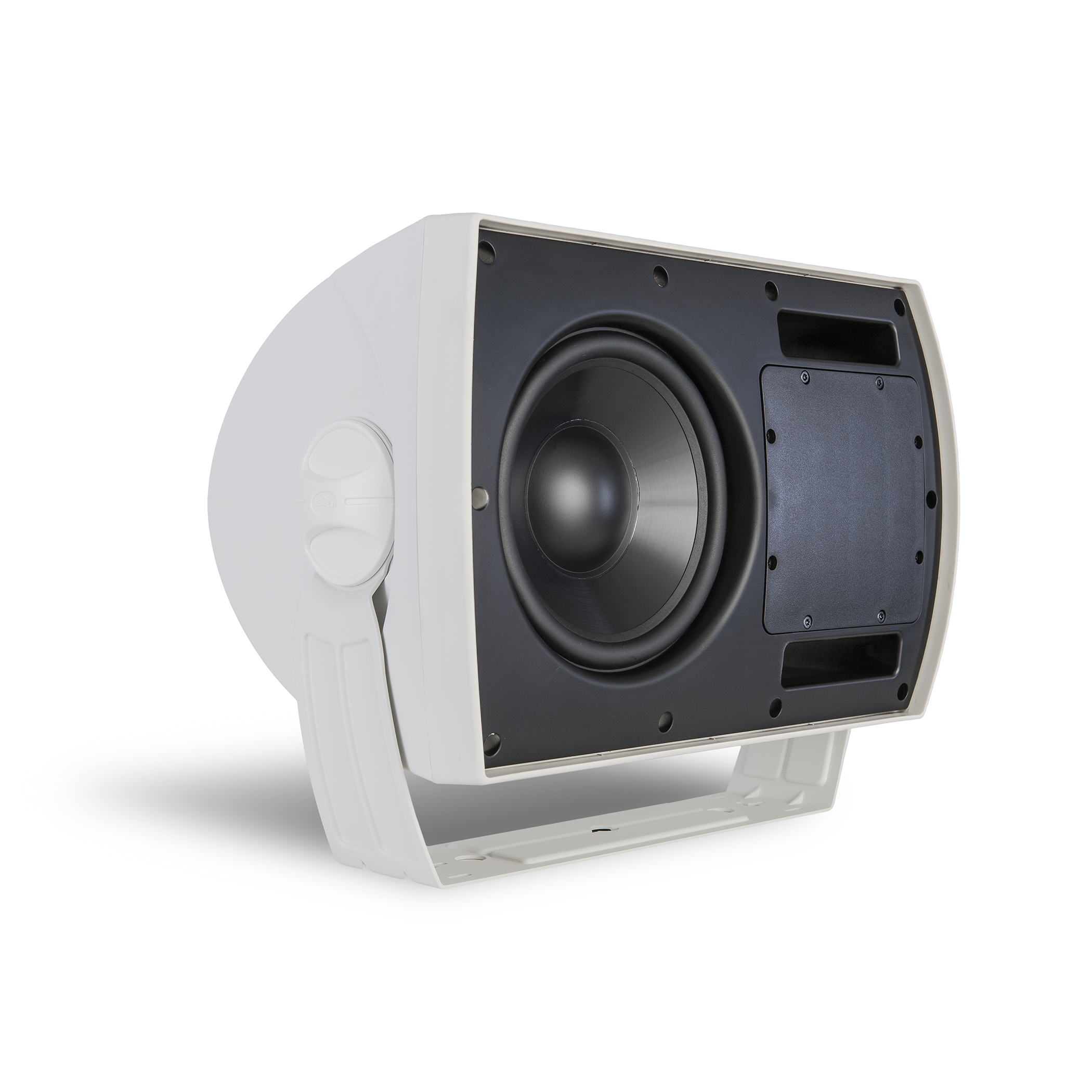

For efficiency and reliability the CA-800T has been re-voiced and employs a high-power extended range low frequency driver. It features an 8-inch IMG cone woofer and 1-inch titanium dome tweeter coupled to a square-mouth 90-degree by 90-degree Tractrix® Horn which allows the speaker to be mounted horizontally or vertically without affecting the coverage pattern.

Available in black or white this speaker has a durable UV-resistant all-weather enclosure that includes an internal multi-tap transformer with expanded range and a switchable direct 8-ohm bypass. The tap settings for the CA-800T at 70V are 60W 30W 15W 7.5W and 3.7W. The added 3.7W tap setting offers further placement flexibility. The settings for 100V are 60W 30W 15W and 7.5W.

The included heavy gauge zinc C-bracket provides added mounting strength. It attaches to the enclosure's integral "center-of-gravity balanced" threaded studs that are positioned inside the speaker and to the oversized knobs ensuring positive position-lock.

Connections are provided via four-position barrier strips. This allows an installer to use two connectors for inputs and two for pass-throughs making it easier to daisy chain.

The CA-800T's updated grille design stays securely fastened and incorporates a new paint formulation for increased weather resistance and years of maintenance-free protection regardless of the climate or environment. The speaker's improved input cup allows for easier drainage and the added 3/8"-16 threaded insert for use with optional mounts offers better placement flexibility.



Specifications
FREQUENCY RESPONSE:64Hz-17.5kHz 4dB, 47Hz-20kHz -10 dB
SENSITIVITY: 96 dB
POWER HANDLING: 100 watts (21V) 40Hz-10kHz
MAX CONTINUOUS OUTPUT:113 dB
NOMINAL IMPEDANCE:8 Ohms (4.5 min @ 167Hz)
TWEETER: One K-150-A 1", titanuim diaphragm compression driver
WOOFER: One K-1183-A 8" woofer, IMG Cone
CROSSOVER FREQUENCY:1900 Hz
ENCLOSURE MATERIAL: All-weather ABS Plastic paintable to match décor
ENCLOSURE TYPE:Vented System via port
INPUT CONNECTIONS: Barrier Strip
COVERAGE ANGLE: Horizontal: 80 40 1.2kHz-20kHz Vertical: 90 30 1kHz-20kHz
DIMENSIONS:11.125" (28.258 cm) H x 16.375" (41.533 cm) W x 12.313" (31.275 cm) D
DIRECTIVITY INDEX: 7 2.5dB 700-20kHz
WEIGHT: 18lbs (8.16kg)
TRANSFORMER TAPS: 60W, 30W, 15W, 7.5W, 3.75W
BUILT FROM:2005
