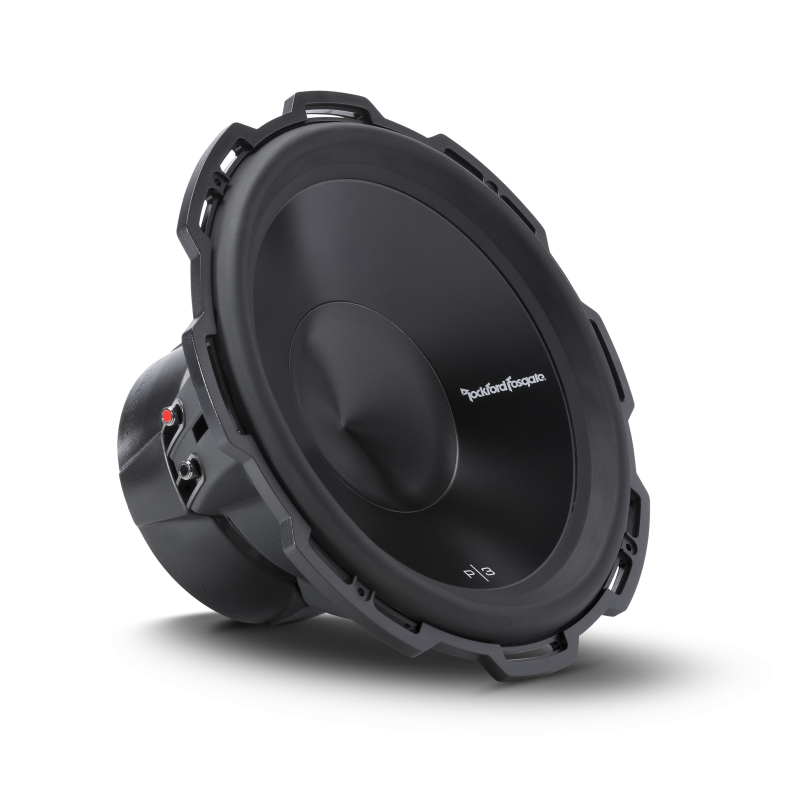

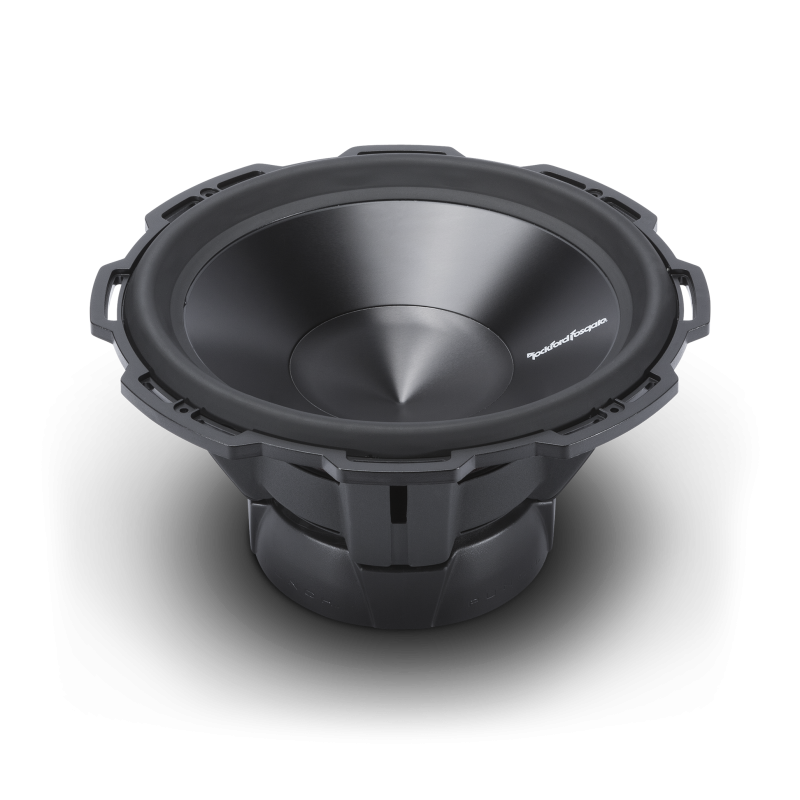

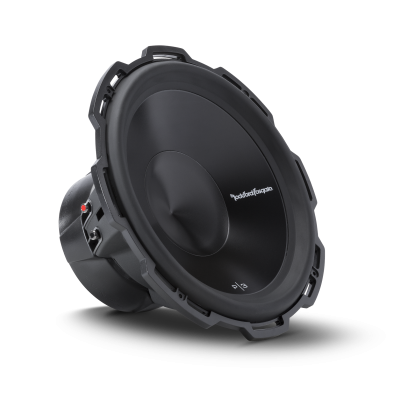

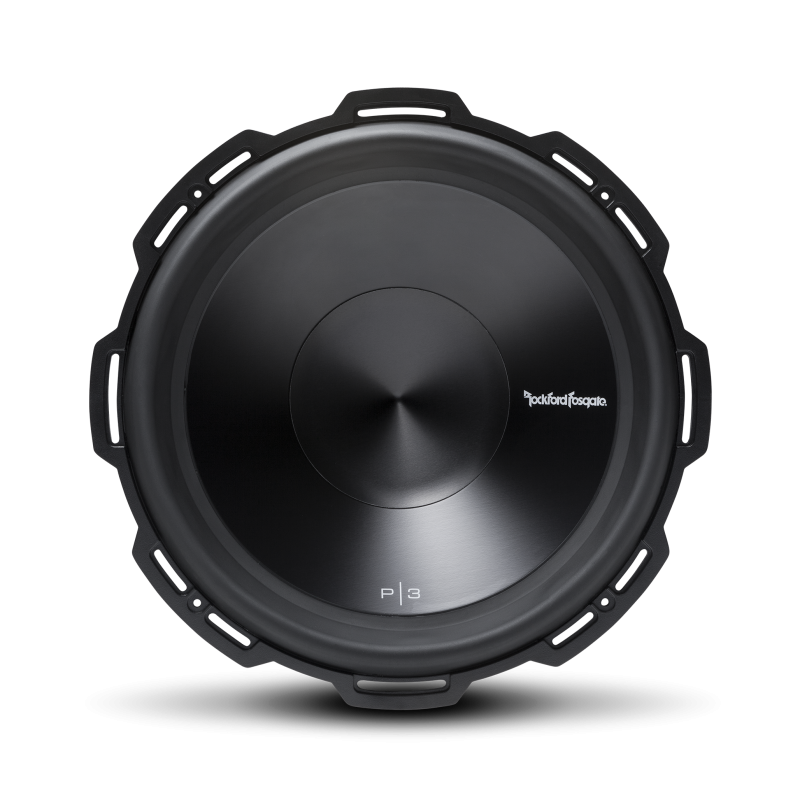

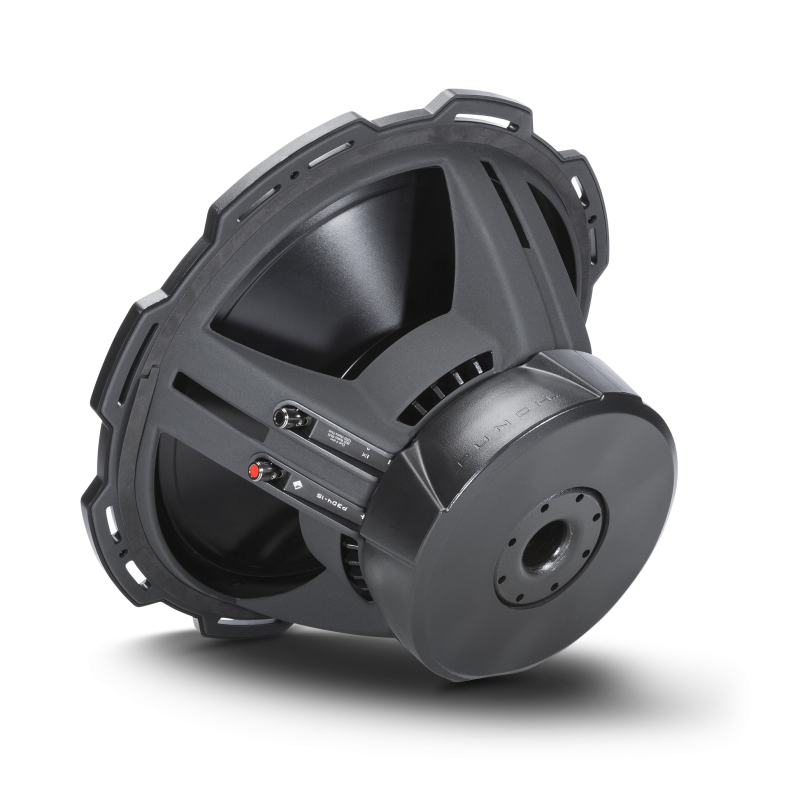

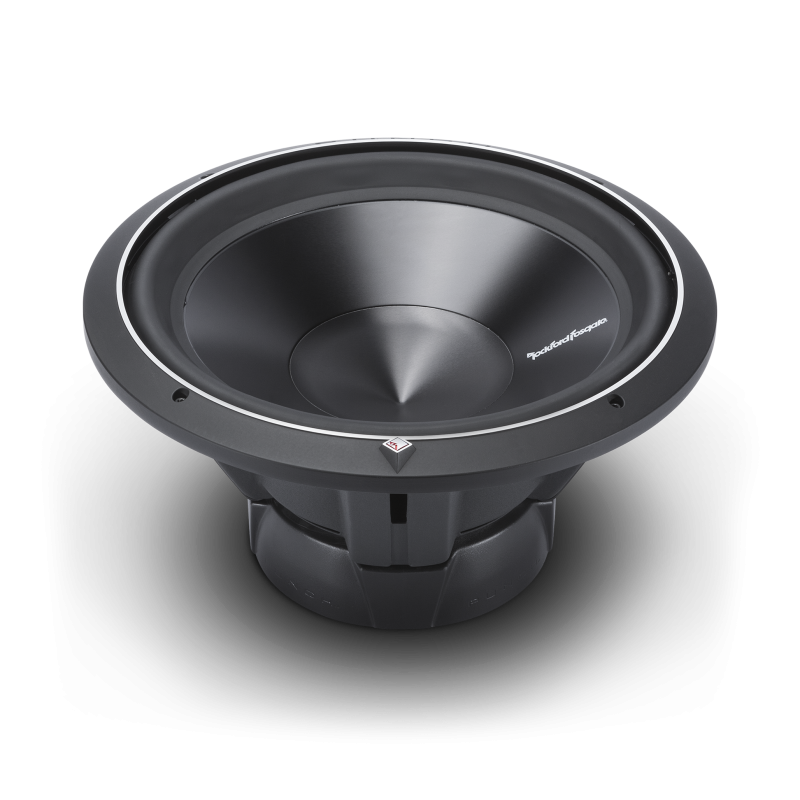

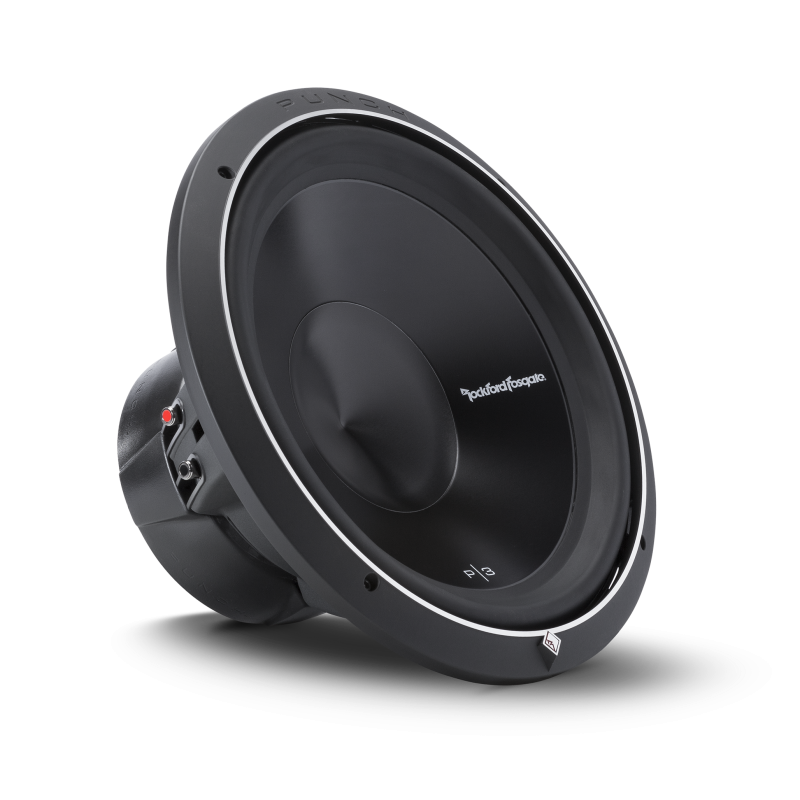

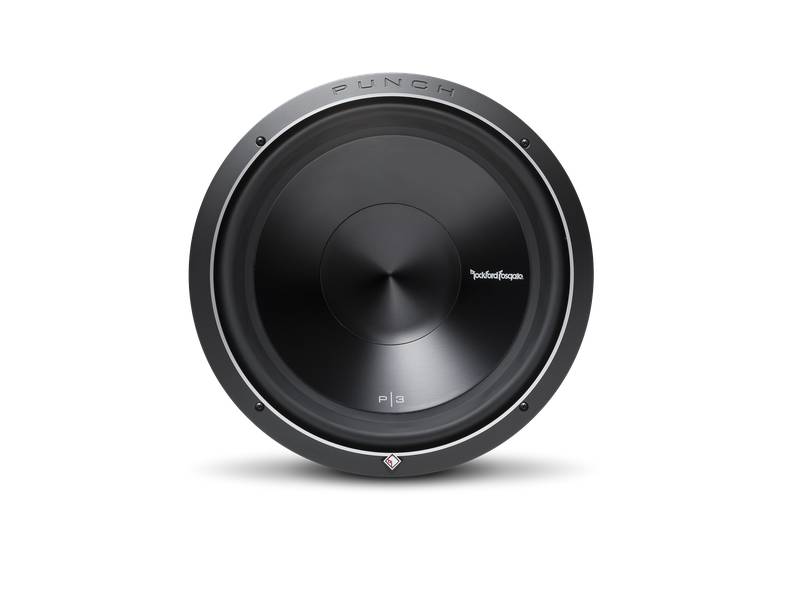

Rockford Fosgate P3D2-15

Rockford Fosgate Punch P3 2-Ohm DVC Subwoofer - P3D2-15



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Price$519.99
Savings$80.00
Our Price $439.99 CAD
Sale Ends : April 30, 2025
On Sale
Buy Online
Availability
Schedule Delivery

Literature

The P3D2-15 is the best performing Rockford Fosgate Punch series subwoofer. The P3 15” features Dual 2-Ohm voice coils, 600 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring.

Overview

The P3D2-15 is Rockford Fosgate's best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.

  • Custom 10-AWG nickel plated push terminals
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Extended pole piece and bumped vented backplate
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Anodized aluminum cone and dustcap
  • Protective PVC textured magnet cover

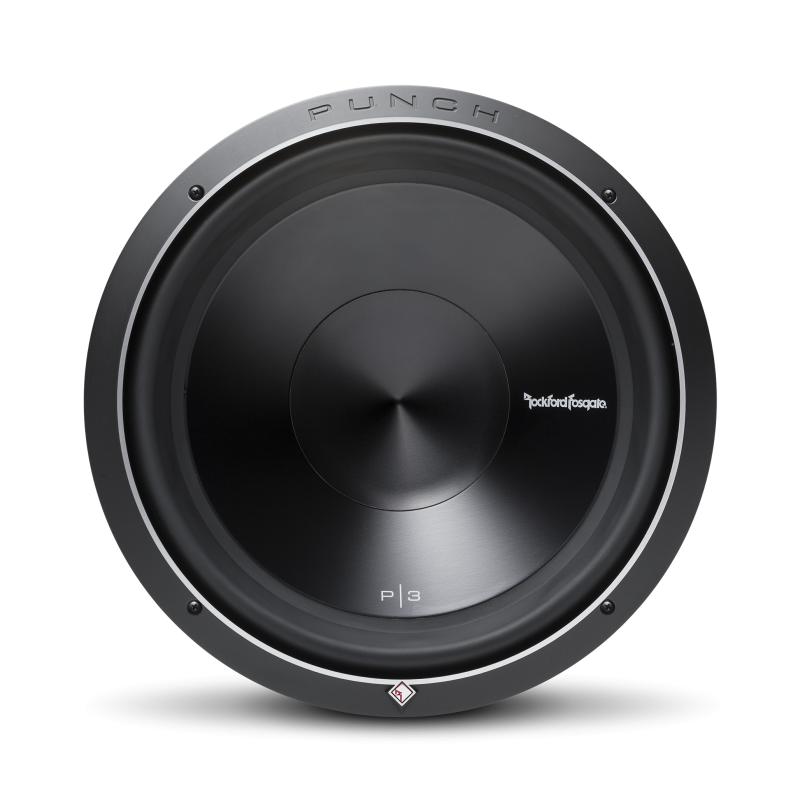

  • Diamond cut cast aluminum trim ring with optional grille

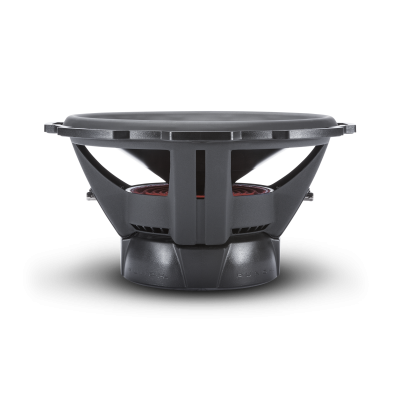

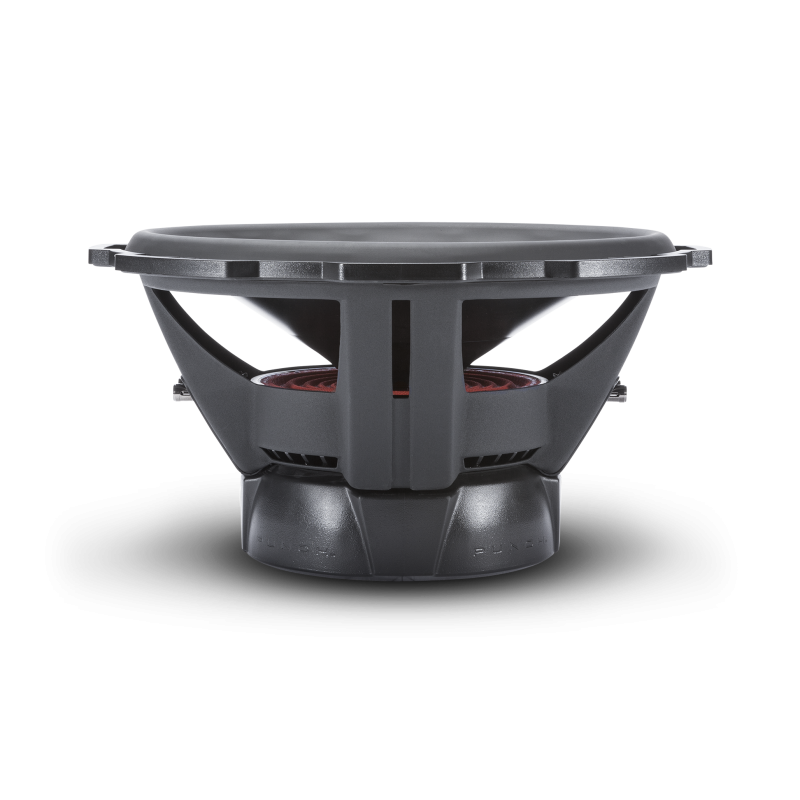

  • StampCast basket with integrated spider venting
  • 1 Year Warranty

Technologies

Stitched Tinsel Leads

Improved reliability and performance by reducing fatigue and possible shorting.

CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

VAST Surround - Subs

The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.

Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

Anodized Aluminum Voice Coil Former

Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.

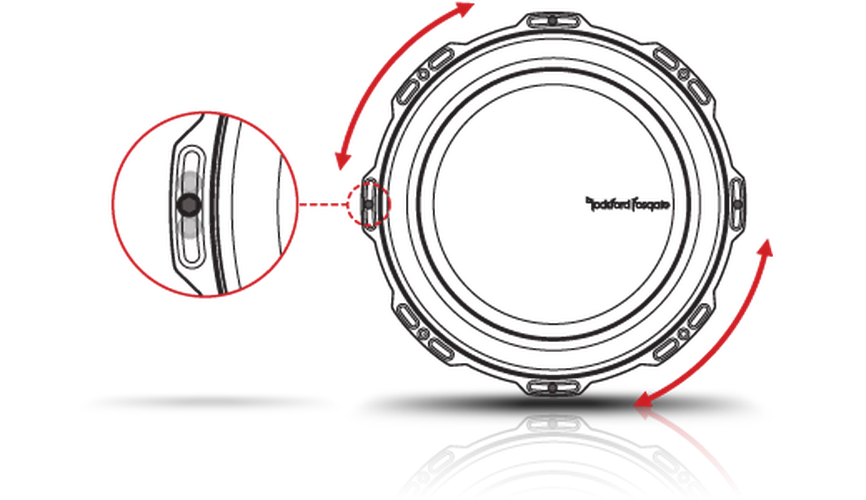

FlexFit Basket - Subwoofer

The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.

Specifications
Nominal ImpedanceDual 2-Ohm
Power Handling (Watts RMS)600 Watts RMS
1200 Watts Max
Magnet Weight (oz)96 oz. (2.73 kg.)
Voice Coil Diameter2.5" (65.5 mm)
Mounting Depth7.58 in. (192.5 mm)
Qts0.54
Vas (Liters)155.8
Cutout Diameter13.94 in. (353 mm)
Woofer Displacement0.148 cu. ft. (4.2 Liters)
Size15"
Speaker ConnectorDual 10 AWG compression
Shipping Weight23.3 Lbs. (10.56 kg)
Fs (Hz)21.7
Qes0.58
Qms7.20
Le (mH)4.06
SPL (dB @ 1w/1m)86
Xmax (mm)15.2
Re (Ohms)3.20
Sd (cm2)894
Subwoofer TypeStandard
Voice Coil TypeDual Voice Coil
Vented Box Volume (Vb)2.66 cu. ft. (75.3 Liters)
Sealed Box Volume (Vb)1.58 cu. ft. (44.7 Liters)
