Rockford Fosgate PM1000X1BD

Rockford Fosgate Punch Marine 1,000 Watt Class-bd Mono Amplifier - PM1000X1BD



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Our Price $1,309.99 CAD
Availability
Schedule Delivery

Literature

The PM1000X1bd is a 1000 Watt mono amplifier with high dynamic power using Class-bd technology and a conformal coated pc board designed for motorsport and marine applications.

Overview

With its super efficient Class-bd circuit topology, the PM1000X1bd assures maximum BOOM for your buck! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.

  • High level input capable with Auto Turn-On circuit
  • Features C.L.E.A.N. Set-up
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • 12dB/octave Butterworth crossover
  • RCA pass-thru outputs
  • On-board Punch EQ with +18dB boost @ 45Hz
  • Muted turn on
  • Stealth top mounted control panel
  • Cast aluminum heatsink
  • Short circuit protection
  • Over current protection
  • Infrasonic filter
  • Marine grade two part epoxy coating on circuit boards
  • Marine grade stainless steel hardware
  • 2-Year Warranty

Technologies

CE Compliant

This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).

CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

Element Ready™ - Amps

These amplifiers are protected against Dust, UV, Corrosion, and feature Stainless hardware.

Class BD

Class BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional class A/B amplifiers.

Balanced Differential Inputs

Differential inputs eliminate noise picked up by signal cables.

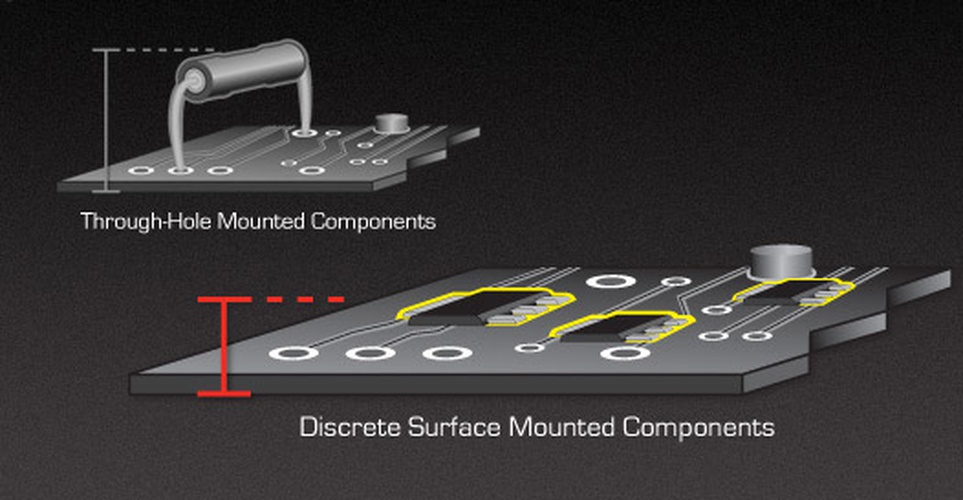

DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

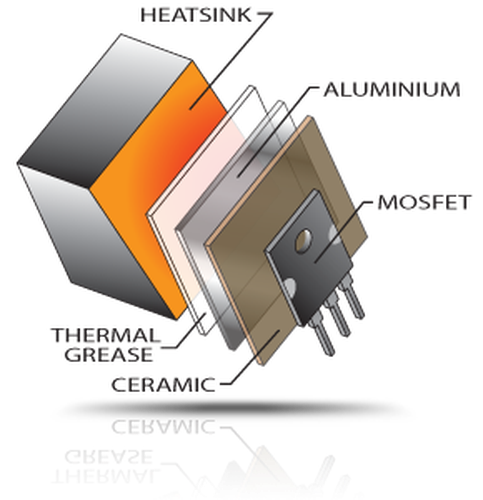

MEHSA3

MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

NOMAD

NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.

C.L.E.A.N. Set-Up

C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.

Specifications
Recommended Fuse (not included)140 A
Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%
1-Ohm: <1.0%
Efficiency (average)86% @ 4-Ohm
Dynamic Power (PVC/PowerCube®)491 Watts x 1 @ 4-Ohms
874 Watts x 1 @ 2-Ohms
1,430 Watts x 1 @ 1-Ohm
Input Sensitivity150 mV - 12 V
Shipping Weight12.9 Lbs. (5.85 Kg.)
Signal InputHi/Low level: 1 RCA pair
Suggested Alternator100 A
BridgeableNo
Number of Channels1
Operating Voltage9 - 16 VDC
Max. Current Draw (13.8V Sinewave)130 A
Rated Power (RMS Continuous Power)300 Watts x 1 @ 4-Ohm
500 Watts x 1 @ 2-Ohm
1000 Watts x 1 @ 1-Ohm
Average Current Draw (13.8V Music)65 A
Total Power (Sum of Rated Power)1000 Watts
Crossover ControlsLow-Pass (LP): 50-250Hz @ 12dB/octave Butterworth
Infrasonic Filter (IF): 28Hz @ 12dB/Octave Butterworth
All-Pass: No
Tone ControlsPunch EQ2 Bass: 0dB to +18dB @ 45Hz
Signal OutputHi/Low level: 1 RCA pair
Power Input ConnectorCaptive C-Clamp
Speaker Wire Gauge8 AWG to 18 AWG
Speaker Output ConnectorCaptive C-Clamp
Power Wire Gauge4 AWG
Heat Sink TypeCast aluminum
CoolingConvection
Remote ControlsOptional Punch Level Control (PLC2) Ready
Visual IndicatorsPower/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Circuit Topology ClassClass BD
Frequency Response20Hz to 250Hz +/- 1.0dB
Dimensions (H x W x D)2.38 x 7.76 x 13.28 (in)
6.05 x 19.71 x 33.73 (cm)
