Rockford Fosgate PM500X2

Rockford Fosgate Punch Marine 500 Watt 2-Channel Amplifier - PM500X2



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Our Price $1,049.99 CAD
Availability
Schedule Delivery

Literature

The PM500X2 is a 500 Watt 2-channel amplifier with high dynamic power using Class-a/b technology and a conformal coated pc board designed for motorsport and marine applications.

Overview

The PM500X2 is an excellent way to PUNCH up your sound system without monopolizing your entire trunk - that way you have more room for subs! With its massive output stage, this amplifier is best suited for driving a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Remember to utilize the recommended power and speaker cables to optimize power delivery.

  • High level input capable with Auto Turn-On circuit
  • RCA pass-thru outputs
  • Features C.L.E.A.N. Set-up
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • 12dB/octave Butterworth crossover
  • On-board Punch EQ with +18dB boost @ 45Hz
  • Muted turn on
  • Stealth top mounted control panel
  • Cast aluminum heatsink
  • Short circuit protection
  • Over current protection
  • Marine grade 2-part epoxy coated PCB
  • Marine grade stainless steel hardware
  • 2-Year Warranty

Technologies

CE Compliant

This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).

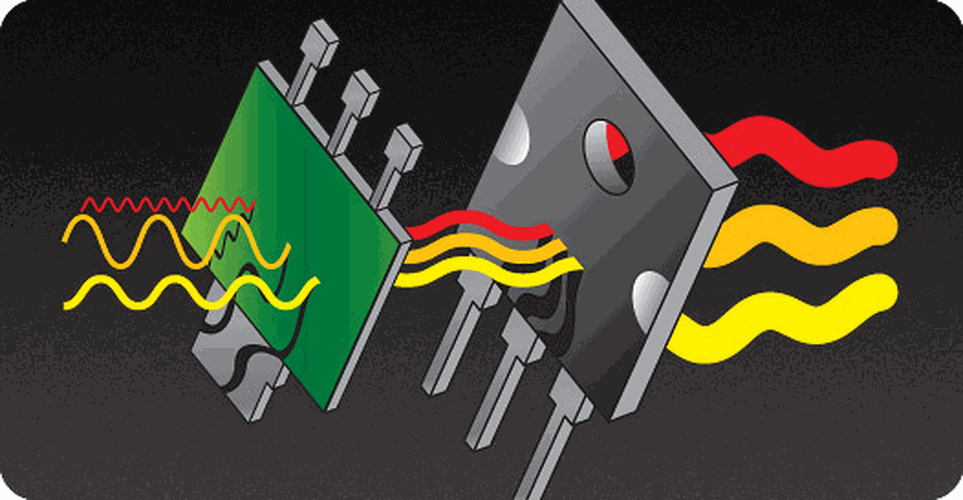

TRANS•ana

Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.

Element Ready™ - Amps

These amplifiers are protected against Dust, UV, Corrosion, and feature Stainless hardware.

CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

Balanced Differential Inputs

Differential inputs eliminate noise picked up by signal cables.

DTM

Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.

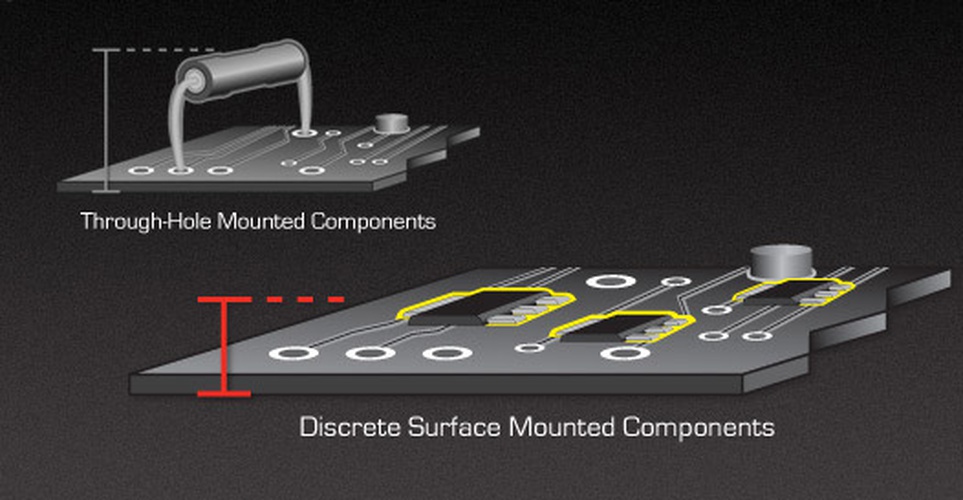

DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

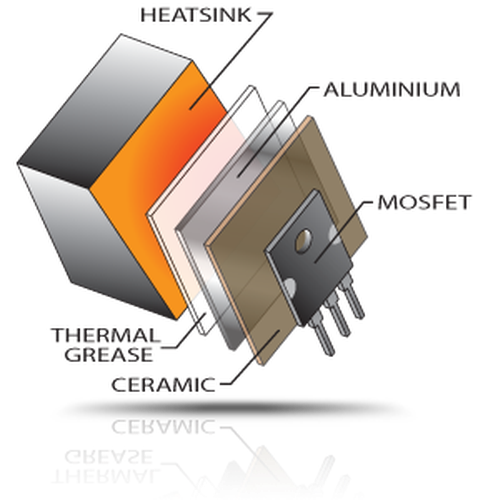

MEHSA3

MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

NOMAD

NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances..

C.L.E.A.N. Set-Up

C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.

Specifications
Input Sensitivity150 mV - 12 V
Efficiency (average)73% @ 4-Ohm
Total Power (Sum of Rated Power)500 Watts
Rated Power (RMS Continuous Power)150 Watts x 2 @ 4-Ohm
250 Watts x 2 @ 2-Ohm
500 Watts x 1 @ 4-Ohm Bridged
Tone ControlsPunch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Punch EQ2 Treble: 0dB to +12dB @ 12kHz
Function depends upon LP/AP/HP switch position
Crossover ControlsHigh-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
Low-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
All-Pass: Yes
Suggested Alternator75 A
Max. Current Draw (13.8V Sinewave)80 A
Operating Voltage9 - 16 VDC
Recommended Fuse (not included)80 A
Average Current Draw (13.8V Music)40 A
Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%
Shipping Weight12.3 Lbs. (5.57 Kg.)
Dynamic Power (PVC/PowerCube®)223 Watts x 2 @ 4-Ohms 0° Res
365 Watts x 2 @ 2-Ohms 0° Res
Number of Channels2
BridgeableYes
Power Input ConnectorCaptive C-Clamp
Speaker Output ConnectorCaptive C-Clamp
Power Wire Gauge4 AWG
Signal OutputLow level: 1 RCA pair
Signal InputHi/Low level: 1 RCA pair
Speaker Wire Gauge8 AWG to 18 AWG
Heat Sink TypeCast aluminum
CoolingConvection
Remote ControlsOptional Punch Level Control (PLC2) Ready
Visual IndicatorsPower/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Circuit Topology ClassClass A/B
Frequency Response20Hz to 20kHz +/- 1.0dB
Dimensions (H x W x D)2.38 x 7.76 x 13.28 (in)
6.05 x 19.71 x 33.73 (cm)
