Hertz K170

Hertz Uno Speaker System With Tweeter - K170



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Price$99.99
Savings$20.00
Our Price $79.99 CAD
Sale Ends : January 31, 2025
On Sale
Availability
Schedule Delivery

Literature

Uno systems

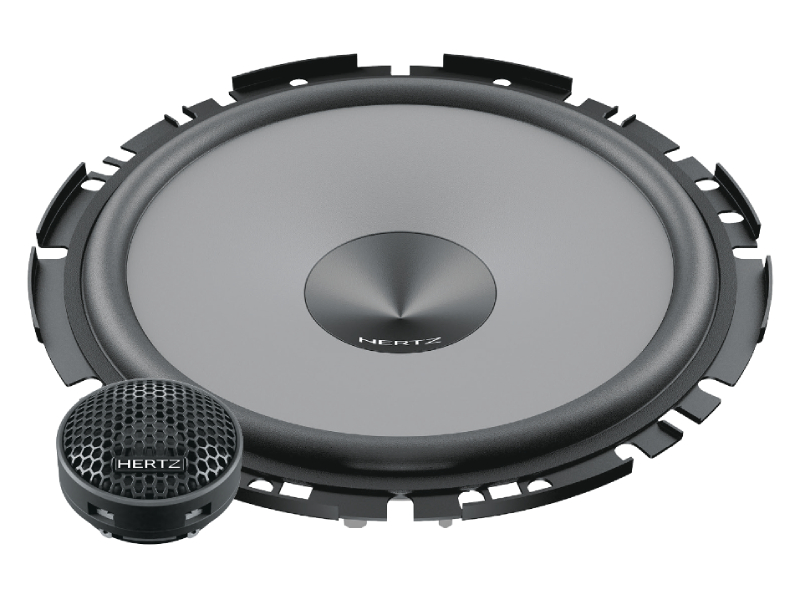

The K 170 Uno system features a 24 mm (0.9ˈ) diaphragm Neodymium tweeter with PEI dome, for a brilliant reproduction of high frequencies in a compact size. The annular acoustic lens is optimized for exceptional off-axis performance, ensuring an accurate stereo image. The 6.7” woofers features a pressed-paper cone with foam surround, for high SPL and solid bass. The 25 mm(1ˈ) woofer voice coil driven by a high-flux density ferrite magnet offers a highly dynamic power handling for a powerful undistorted sound. The 6dB/Oct crossover is integrated on the tweeter wiring for an easy OEM upgrade.

Features

T 24 - Tweeter:

  • 24mm diaphragm Neodymium tweeter with PEI dome, for a brilliant reproduction of high frequencies in a compact size.
  • Annular acoustic lens optimized for exceptional off-axis performance.
  • 6dB/Oct crossover integrated on tweeter wiring.
  • Mounting accessories for external or embedded mounting included.

V 170 - Woofer:

  • V-cone® design for best off-axis response, clear mid-high frequency detail and powerful bass.
  • Foam surround combining high sensitivity and deep bass response.
  • Pure copper 25mm (1 in.) voice coil woofer for high dynamic power handling.
  • High flux density 80mm (3.15 in.) ferrite magnet for a powerful undistorted sound.
  • Easy-to-install DIN size basket protected by abrasion-resistant dust paint.

Technologies

V-CONE®

The exponential profile gets very close to the perfect one, providing exceptional dispersion.

Specifications
Power Handling - Peak W280
Power Handling - Continuous W70
Impedance Ω4
Frequency response Hz55 ÷ 23k
Sensitivity dB SPL93,5
Voice coil Ø mm (in.)25 (1)
Woofer size mm (in.)170 (6.7)
Tweeter size mm (in.)24 (0.9)
Woofer magnetHigh density flux ferrite
Tweeter magnetNeodymium
Woofer coneWater-repellent pressed paper
Tweeter domePEI
Crossover type6 dB/Oct tweeter integrated
Crossover cut off-
