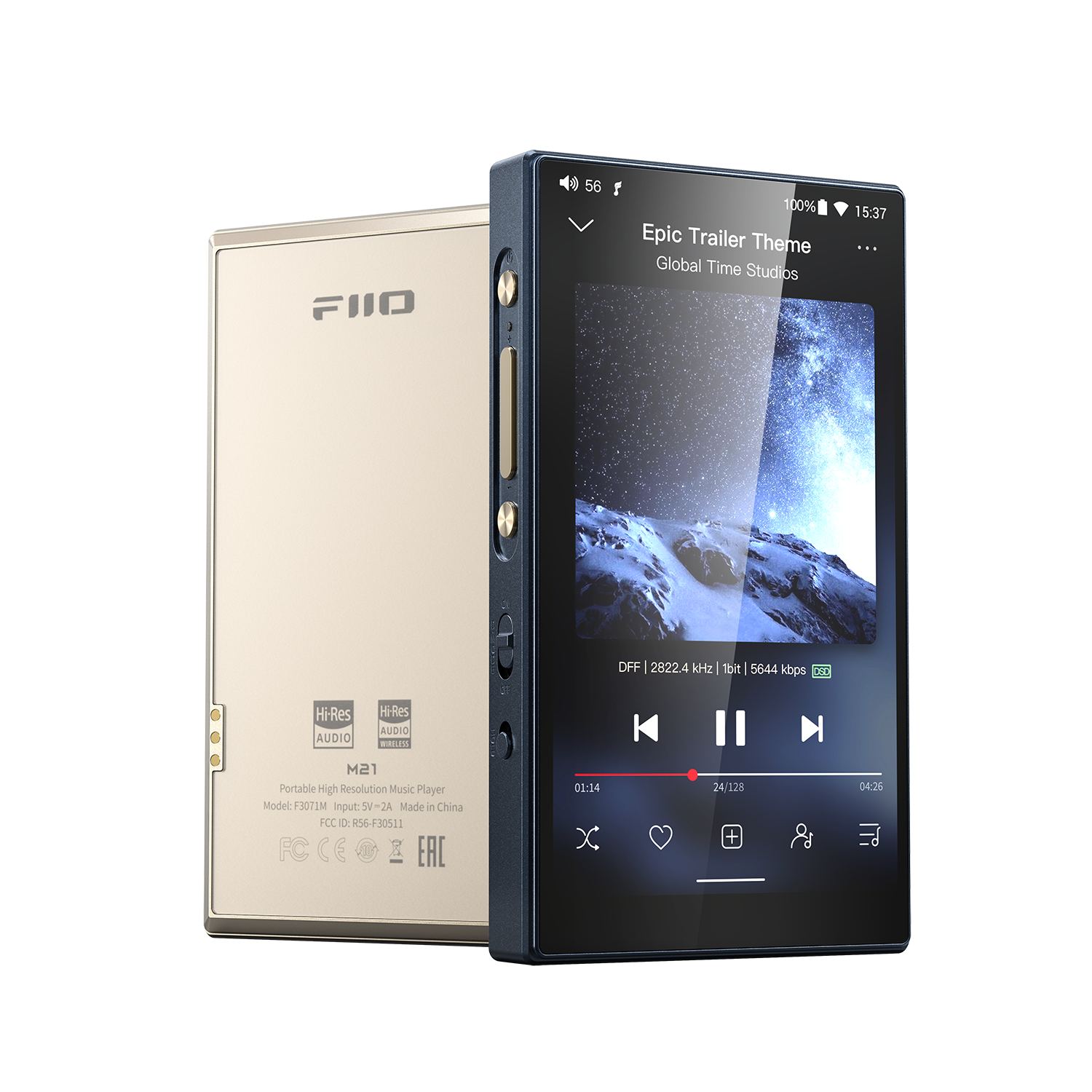

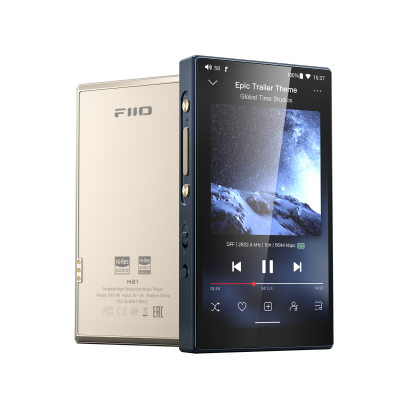

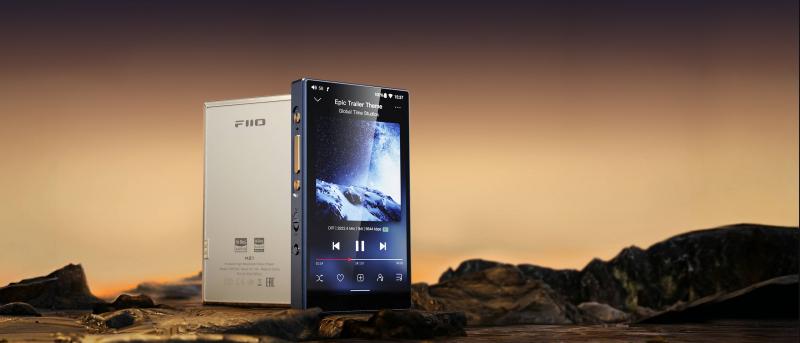

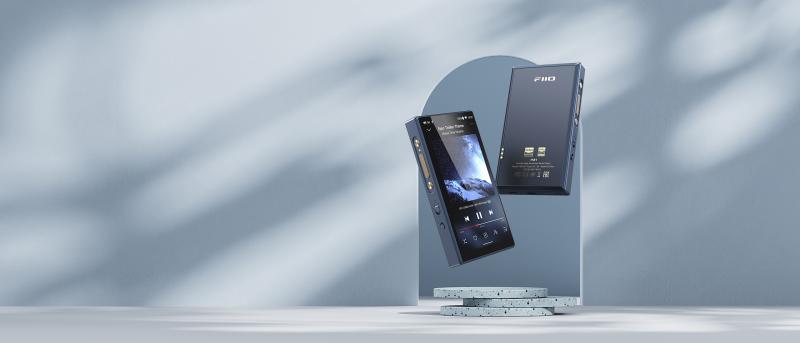

Portable High-Res Lossless Music Player

New octa-core 6nm Snapdragon 680 | Android 13 | 4x CS43198 DACs

 Fully balanced 2-stage amplificationsDual Type-C ports | Low jitter coaxial output

Desktop/Portable dual power supply modes | 950mW high output power

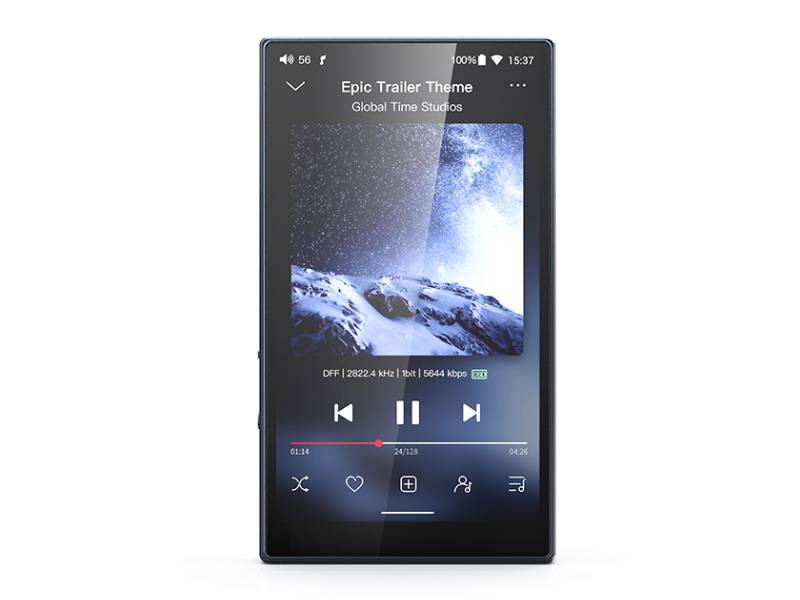

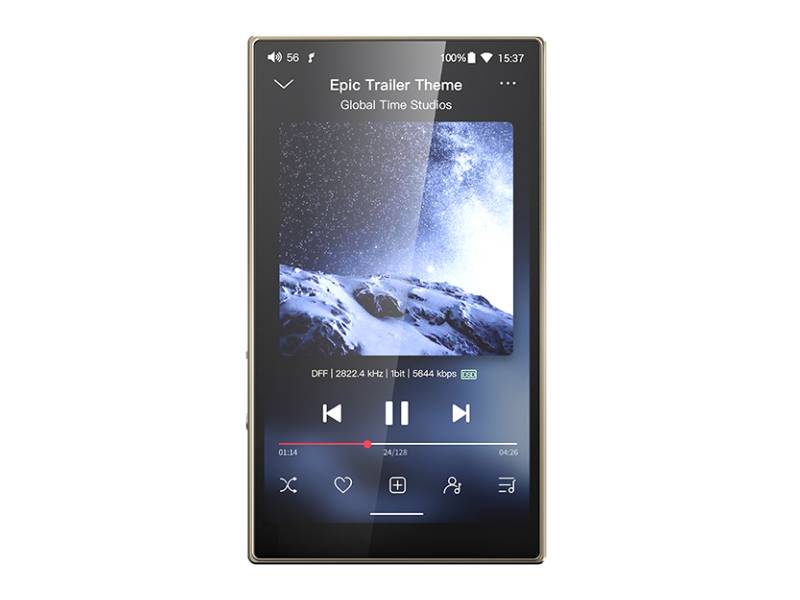

4.7-inch compact HD screen | 3.5mm+4.4mm headphone/LO dual output

 Retro cassette-style protective case

*Pictures are for reference only. The actual product may vary.

A “Hearty” Benchmark

New Paradigm

The M21 redefines the entry-level class with its flagship lineage, Its internal and external “hearts” are full of “heart” in providing you with enjoyment. Its compact screen and class-defying performance are a massive step forward, Aiming to be a benchmark for an entirely new generation.

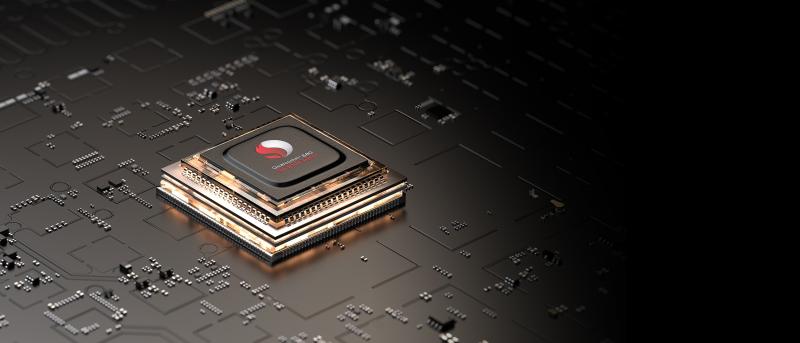

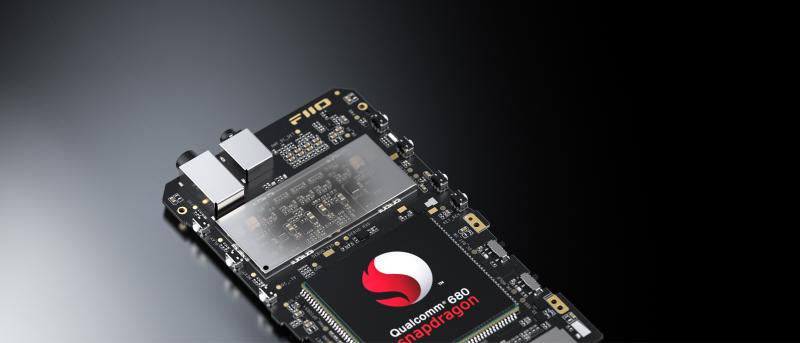

Flagship SoC A new entry-level benchmark

The Qualcomm Snapdragon 680 has superior performance with less power consumption than the SoCs used by players in the same class. It provides a smooth experience with Android 13.

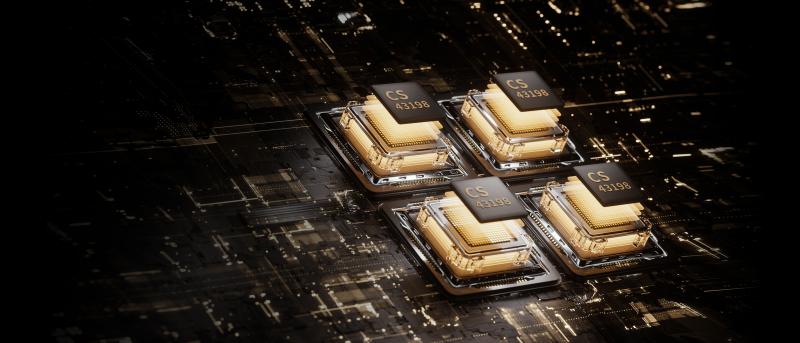

4×CS43198 Full of “hearty” power

The four DAC chips allow for an eight-channel fully differential output design, fully unleashing the potential of headphones with class-defying dynamic performance and high anti-interference capabilities. The headphone amplifier section adopts a two-stage circuit design: the first stage is responsible for voltage amplification, while the second stage handles current expansion – all ensuring purer sound with rich detail.

Four-way fully balanced amp architecture

Patented desktop mode Battery protection expert

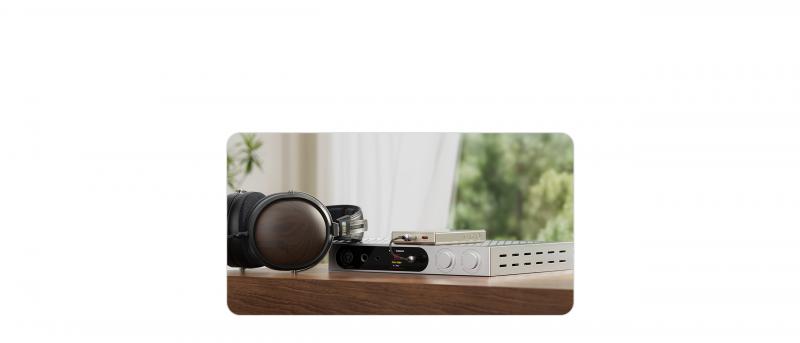

Desktop mode makes an appearance on an entry-level FIIO player for the first time. When desktop mode is enabled, the M21 is completely powered by an external power supply. The built-in battery is neither charged nor discharged, allowing you to use the player safely on the desktop without degrading its battery. Patent number: ZL202321946664.8

Portable/desktop dual power supply modes A jump in performance

“Super high gain” mode

output power

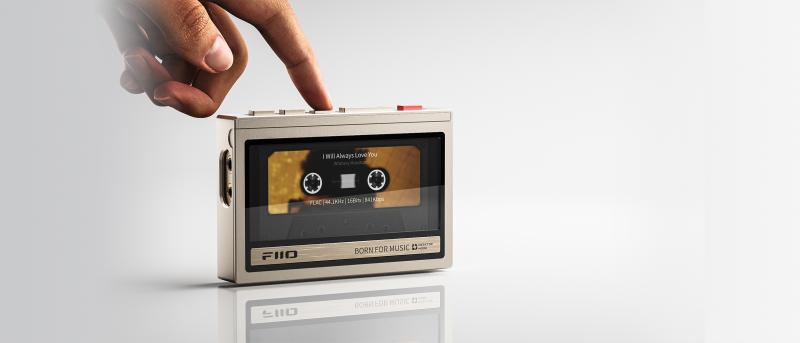

Go back to the Walkman era

With just one touch

The custom cassette-style protective case* paired with an exclusive retro UI and tailored vintage sound effects all take you on a nostalgic journey back to the Walkman era... Remove the protective case to seamlessly switch back to the original system, giving you the flexibility to use it how you want to.

* The cassette-style protective case must be purchased separately.

* When using the cassette-style protective case, touchscreen operation is disabled; only button operation is supported.

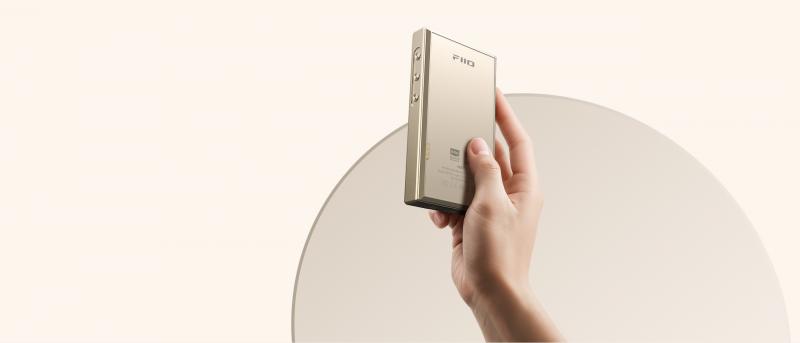

True quality Inside and out

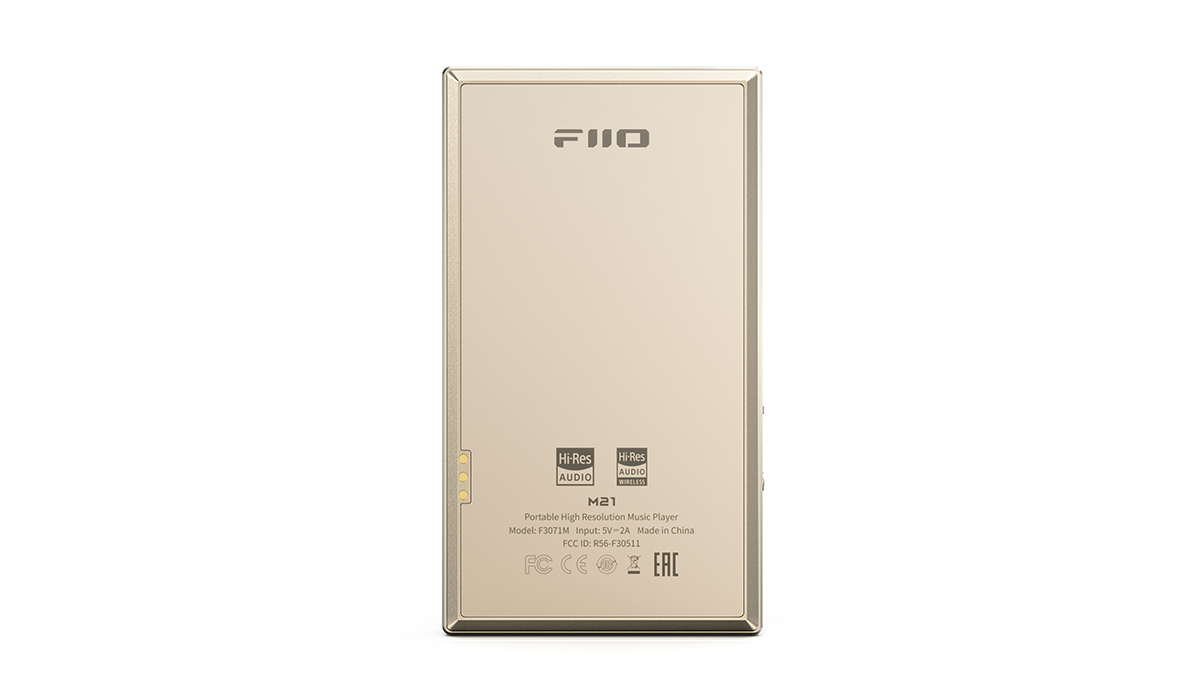

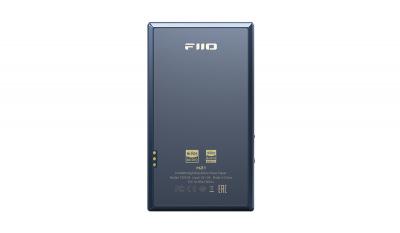

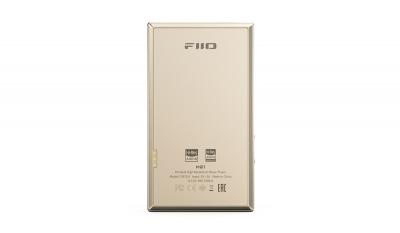

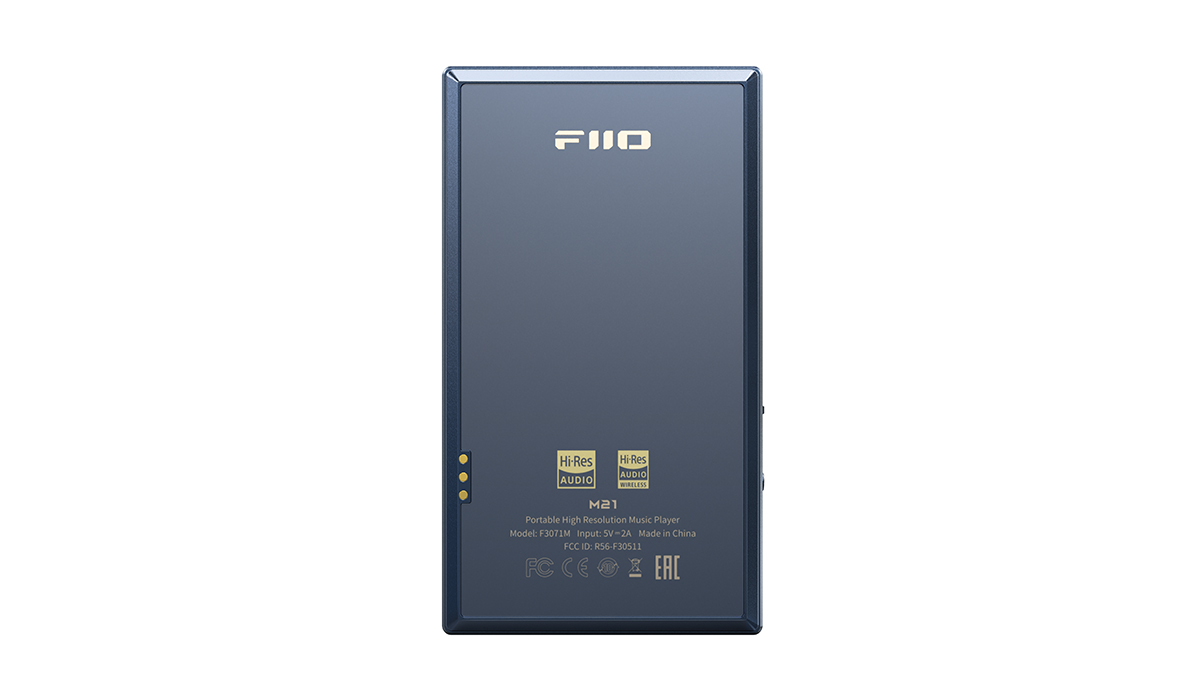

The fully aluminum alloy body with an AG frosted glass back offers a delicate texture and comfortable grip. The screen features an oleophobic coating that significantly reduces fingerprints and smudges, making for smoother touch operation.

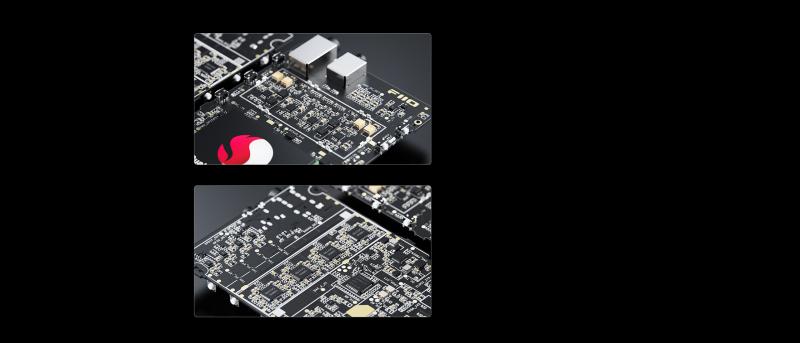

Digital and analog partition shielding Purely heavenly sound

The digital and headphone amplifier sections exist in separate partitions and each is equipped with independent shielding covers for isolation. This not only further reduces signal crosstalk but also enables efficient heat dissipation, delivering purer sound.

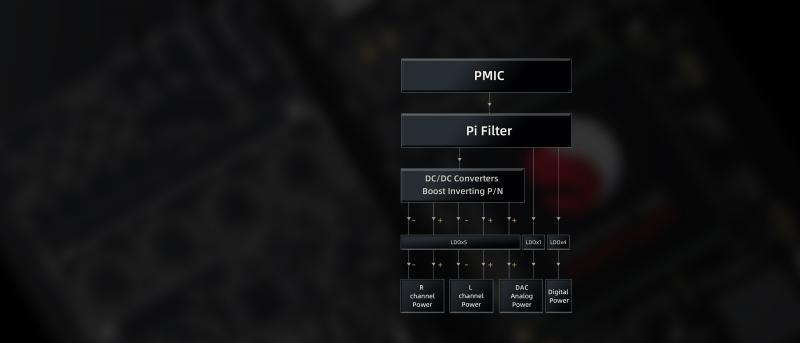

Flagship-grade power supply design

There are separate power supply paths for the digital and analog circuits, which effectively reduce crosstalk between the two. The result is more precise digital processing, purer analog output, and enhanced driving power. The analog circuit is further subdivided into multiple independent power supplies for components such as the DAC and headphone amplifier. This clean and robust power delivery enhances the dynamic range and leads to greater reproduction of details in the audio – for a more refined and natural sound.

High-end HiFi Parts For better sound

In the M21's audio circuit are high-precision thin-film resistors and low- temperature-drift capacitors that ensure refined and stable sound quality - specifically the greater consistency between the left and right channels and across all frequency ranges. Additionally, fine circuits such as the DAC and headphone amplifier are equipped with over 10 low-impedance, high-capacity tantalum capacitors. These provide abundant energy reserves and a robust power supply for more powerful, dynamic sound.

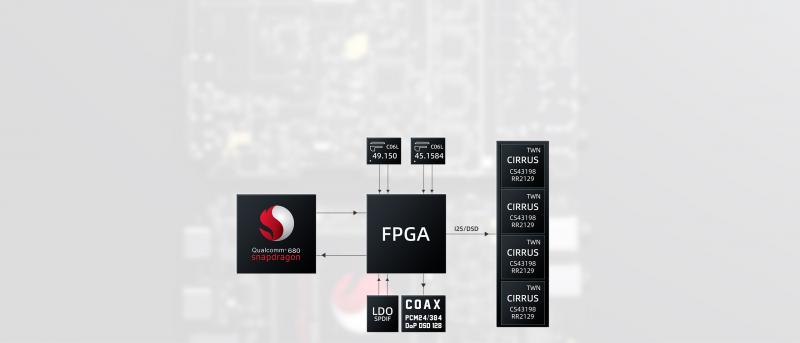

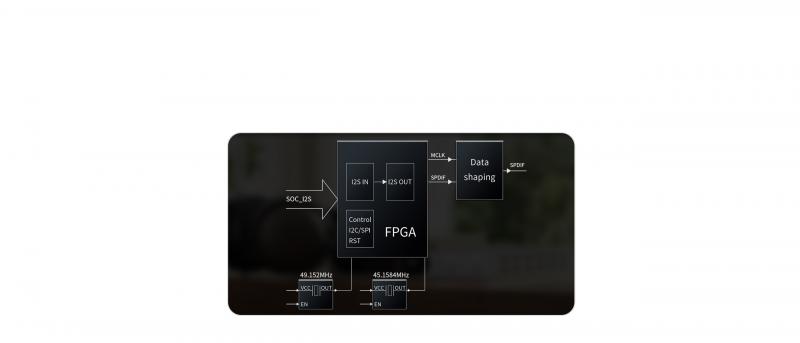

5th-gen FPGA + dual custom femtosecond crystal oscillators

 Global audio optimization

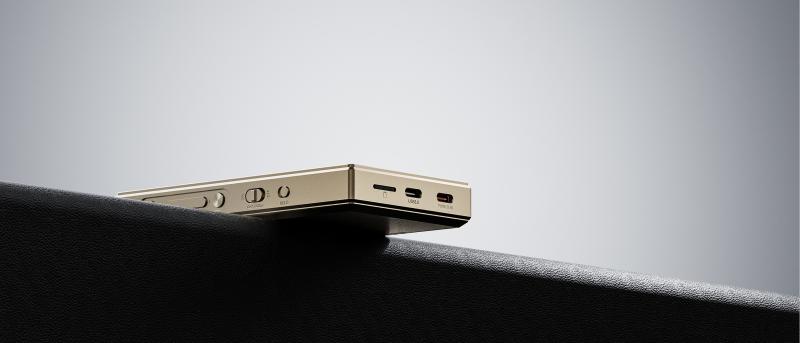

Versatile connectivity High-performance output

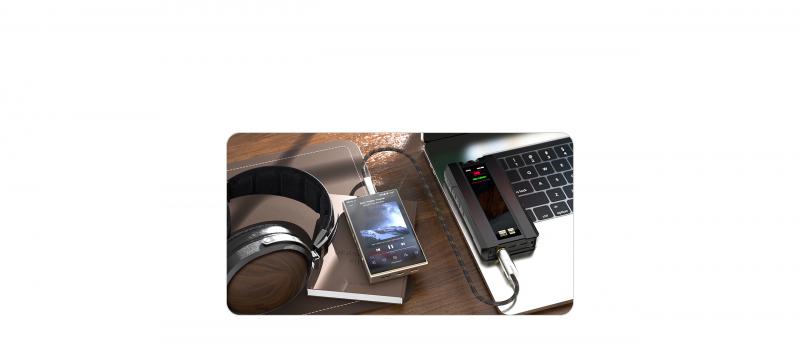

Analog Output

3.5mm+4.4mm headphone outputs:

Analog Output

3.5mm+4.4mm line outputs:

3.5mm, 4.4mm headphone output interface: connect headphones

Digital Output

SPDIF output:

Coaxial Output Circuit Architecture

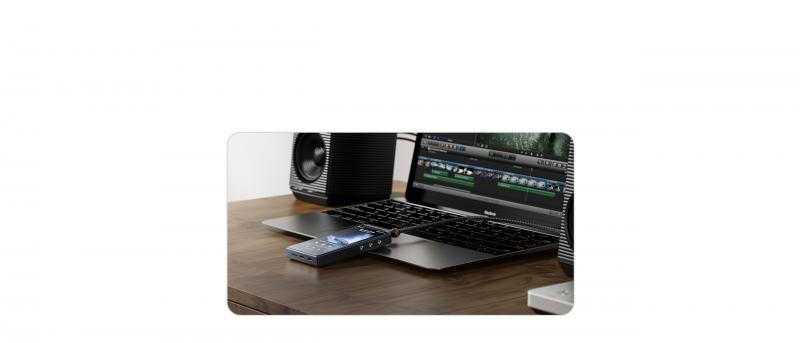

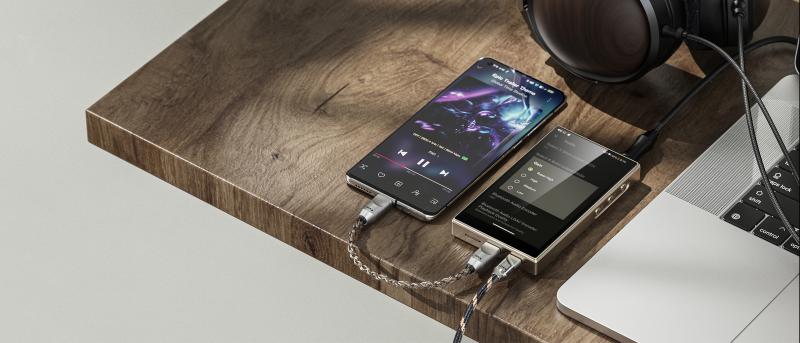

USB Audio output:

15h long battery life Exploring the world of music

The M21’s 4000mAh high-voltage battery provides up to 15 hours of ultra-long battery life, effortlessly providing the energy for extended listening sessions when commuting or traveling, allowing you to fully immerse yourself in the world of music. It also supports 20W PD fast charging, enabling quick recharges even during short breaks.

Single-ended battery life

Balanced battery life

Charging time

 PD fast charging

*Data is based on testing from FIIO Labs. Actual battery life may vary due to differing environments and conditions.

*Only POWER IN interface supports PD fast charging.

Hardware and software Synergy all covered

MQA 8x full unfolding

Two-way LDAC Bluetooth

Five working modes

Customizable multi-function key

RGB pulsing lights

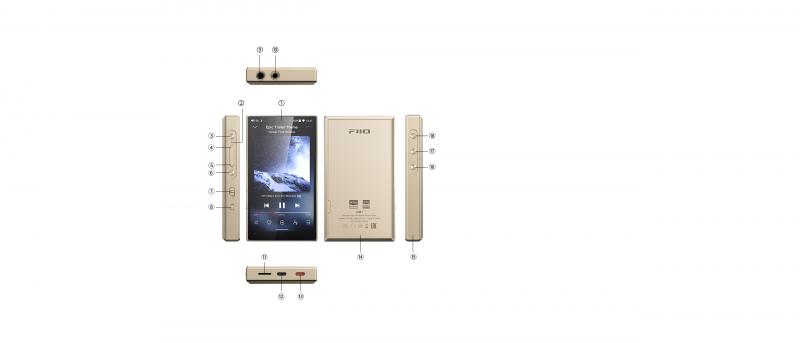

Buttons and ports Labeled

① Display

② Indicator light

③ Power/lock key

④ Volume up key

⑤ Volume minus key

⑥ Multi-function key

⑦ Machine mode switch

⑧ HOLD switch

⑨ 4.4mm balanced headphone out/line out

⑩ 3.5mm headphone out/line out/coaxial out

⑪ MicroSD card slot

⑫ Type-C data/charging port

⑬ Type-C charging/power supply port

⑭ Glass back cover

⑮ Aluminum alloy Mid-frame

⑯ Next track

⑰ Play/Pause

⑱ Previous track

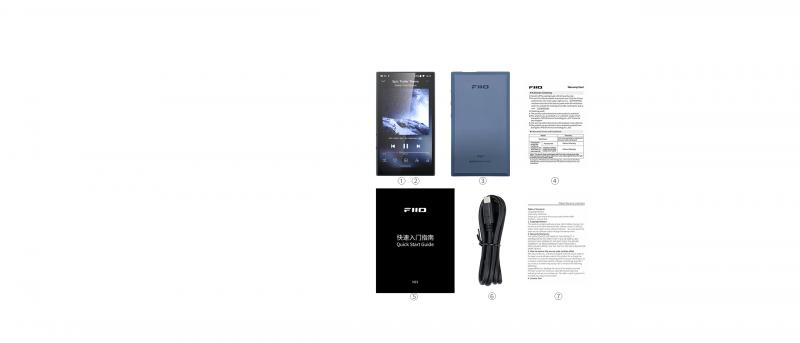

Packing List

①M21 * 1

②Tempered film screen protector (pre-installed at factory*1)

③ Protective case*1

④ Warranty card *1

⑤ Quick Start Guide * 1

⑥ USB data cable * 1

⑦ GPL V2 instruction manual *1
