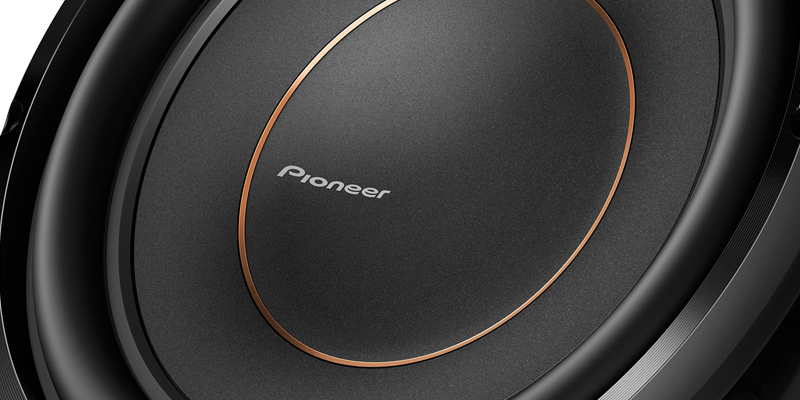

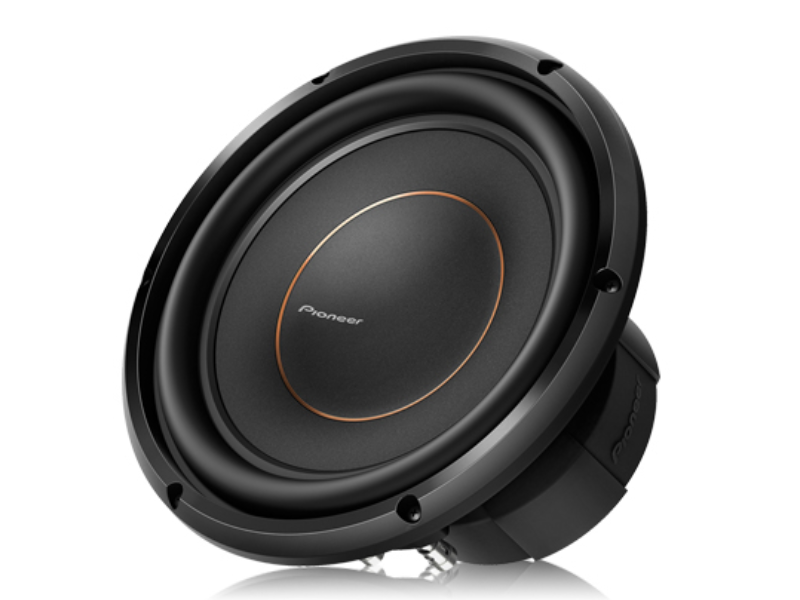

Pioneer 10" D-Series Dual 2 Ohms Voice Coil Subwoofer - TS-D10D2

Authorized Dealer Price Match Guarantee

Price Match Guarantee

Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Availability
Schedule Delivery

Literature

Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) Cone Construction
Butyl Rubber Surround for Strength and Linearity During High Excursion
Oversized 56.4 oz Double Stacked Magnet and Vented Pole Yoke for Increased Power Handling

Build
Recommended Sealed Box Volume [L]	19.8
Linear Excursion (Xmax) [mm]	9.8
Total Speaker "Q" (Qts)	0.7
Free Air Resonance (Fs) [Hz]	40
Equivalent Compliance (VAS) [L]	20.9
Cut Out dimensions	9"
Mounting Depth	5-1/2"
Unit Size (Dimensions)	10-1/2"
Wire Terminals	Push Type
Gasket	ABS
Damper	Aramid
Voice Coil wire	Copper
Voice Coil Bobbin	Alminium
Voice Coil Type	Dual Voice
Magnet Weight	57.8 oz
Magnet Material	Ferrite
Basket Material	Stamped Metal
Surround Type	Rolled
Surround Material	Rubber
Center Cap Material	ABS
Cone Material	IMPP - Aramid Fiber
Size	10"
Shape	Round
Key Features
Nominal Impedance - OHM	2 DVC
Warranty	1 Year
Continuous Power handling (RMS) - Watts	500 Watts
Maximum Peak Power Handling - Watts	1500 Watts
CTA-2031 Compliant	Yes
Frequency Range	20 Hz to 6.6 kHz
Sensitivity (1W/1m)	74dB
System Type	Component Subwoofer
Build
Port Box volume [L]	19.8
Port Length	5"
Port Diameter	2"
