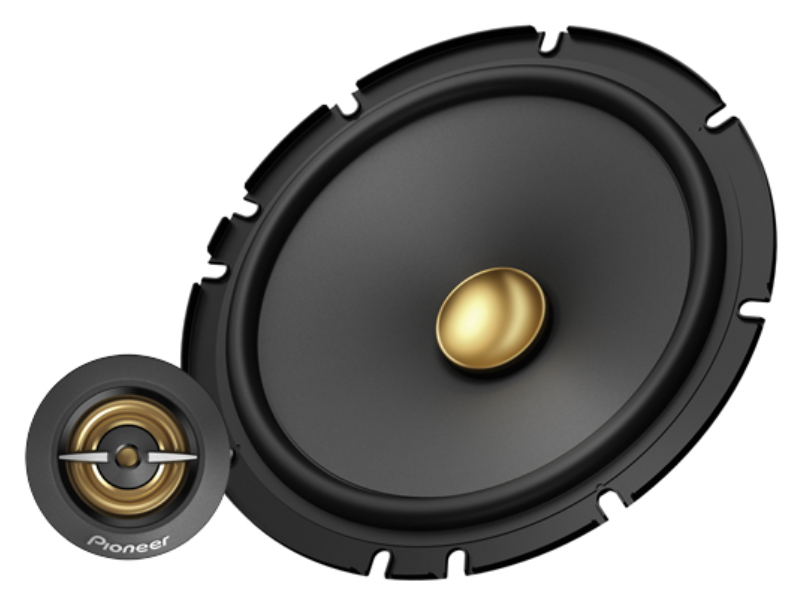

Pioneer 6.5 Inch2-way Component Speakers - TS-A1601C
WAS $219.99
$209.99
OR
$52.50
In 4 installments with
Sale Ends : September 30, 2027
On Sale
Literature
You may also like
WAS
$250.00
$229.99
WAS
$250.00
$229.99
WAS
$169.99
$159.99
WAS
$219.99
$209.99
WAS
$230.00
$199.99
WAS
$169.99
$159.99
- 350 Watts Max Power (80 Watts Nominal)
- 20mm Polyetherimide (PEI) hard dome tweeter
- 33 Hz to 58 kHz Frequency Range
- 6-1/2" carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction
What's in the Box
- Two 6-1/2" woofers
- Two Pioneer Multi-Fit mounting brackets
- Eight 3/4" Screws
- Eight 3/8" Screws
- Eight flat washers
- Two tweeters (with attached 10" speaker leads terminated with quick-connects)
- Two Lengths of speaker wire (each has quick slides to connect to the woofer-a 40" tweeter output leg with integrated crossover-and an 11" input leg)
- Two Tweeter angled surface mount housings
- Two Tweeter flush mount rings
- Two Tweeter factory mount brackets
- Two Adhesive backed foam discs
- Six 1/2" Screws
- Warranty information
| Warranty | |
|---|---|
| Warranty (must be purchased from a Authorized Pioneer Dealer) | 1 year |
| Tweeter | |
| Magnet Weight | 0.17 |
| Magnet Material | Neodymium |
| Diaphragm Material | Film (PEI) |
| Type | Separate component Polyetherimide (PEI) hard dome tweeter |
| Diameter | 20 mm |
| Woofer | |
| Surround Material | Elastic Polymer |
| Basket Material | Iron Plate Press |
| Magnet Material | Ferrite |
| Magnet Weight | 11.29 oz |
| Voice Coil Bobbin | Glass Imide |
| Voice Coil wire | Copper |
| Mounting Depth | 2-3/8" (Deep basket) |
| Diameter | 6-1/2" |
| Cone Material | Carbon and mica reinforced IMPP |
| SYSTEM | |
| Maximum Peak Power Handling | 350 Watts |
| Nominal Impedance | 4 ohms |
| Continuous Power Handling (RMS) | 80 Watts |
| Frequency Range | 33 Hz to 58 kHz |
| Sound Pressure Level (Sensitivity) | 90 dB (+- 1.5dB) |
| System Type | Separate 2-way |
