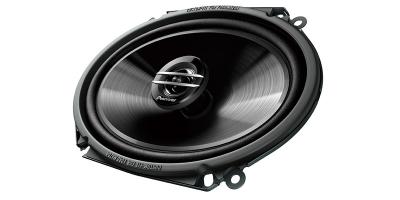

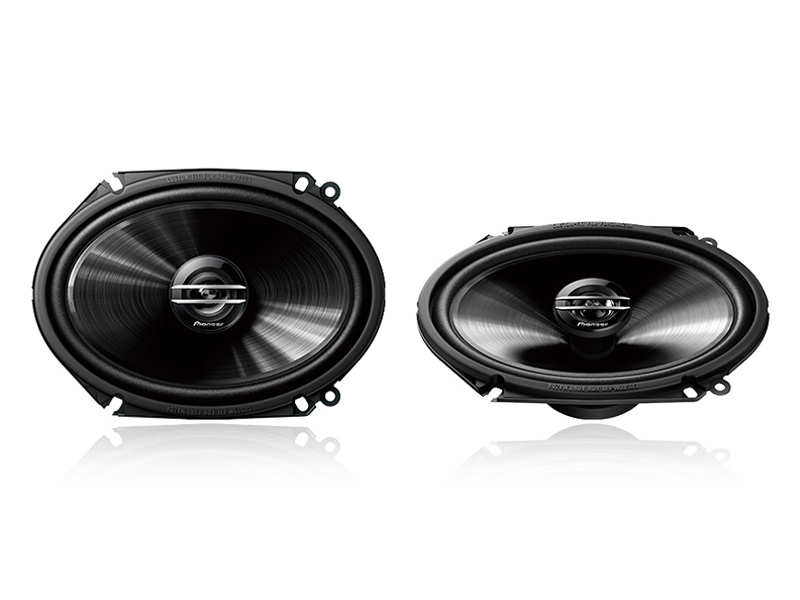

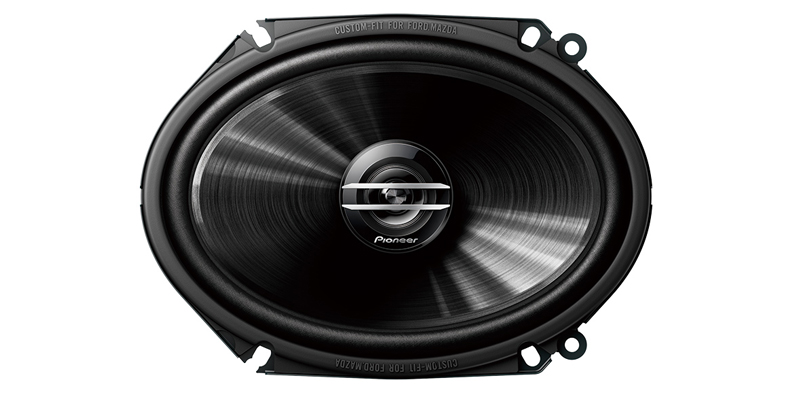

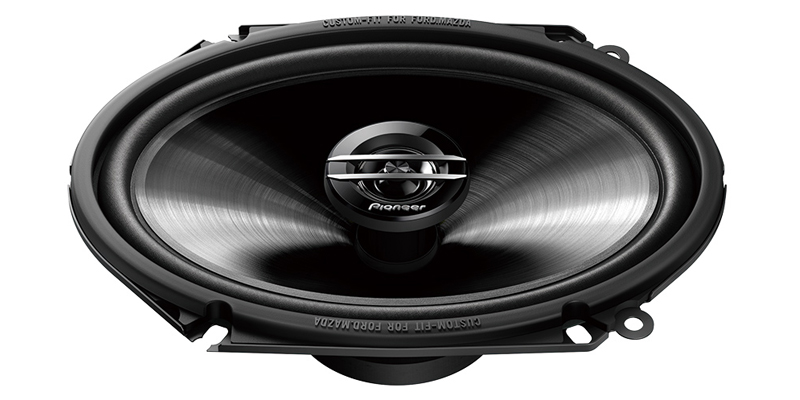

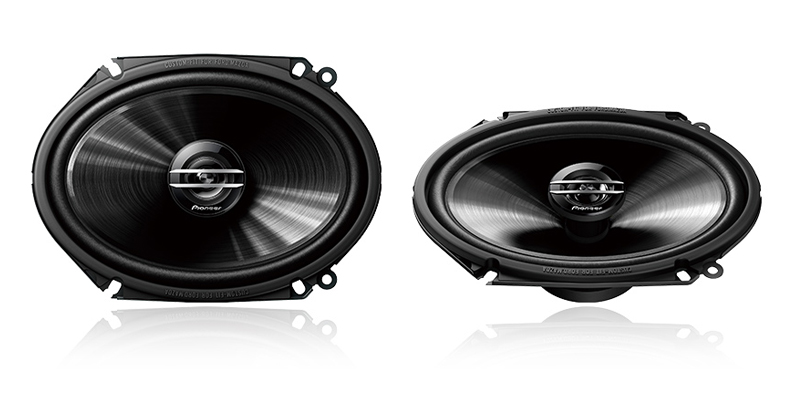

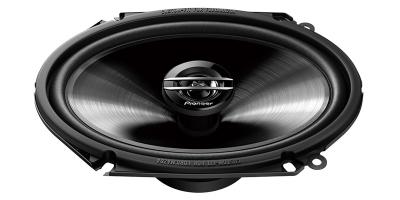

Pioneer TS-G6820S

Pioneer 2-Way Coaxial Speaker 250W Max 40W Nom- TS-G6820S



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Our Price $100.00 CAD
Buy Online
Availability
Schedule Delivery


  • 250 Watts Max. Power
  • Injected Molded Polypropylene (IMPP) composite Cone Woofer
  • Patented Pioneer P.F.S.S Spider
  • 1-3/16" Balanced Dome Tweeter

Installation and Sound to Suit Any Car

Our TS-G6820S speakers are excellent choices to replace a bad set of factory 6" x 8" speakers. Their two-way design handles 250 watts max. power (40 watts nominal) and features Pioneer's extremely strong and lightweight Injected Molded Polypropylene (IMPP) with MICA composite cone woofer for improved sensitivity and reduced distortion.

You don't get just basic, run-of-the-mill features either. The conex damper delivers higher power handling and deeper bass, and the 1-3/16" Balanced dome tweeter reproduces highs with great performance and musicality. These speakers are designed with a shallow mounting depth for easy installation and custom-fit baskets for select Ford and Mazda vehicles.

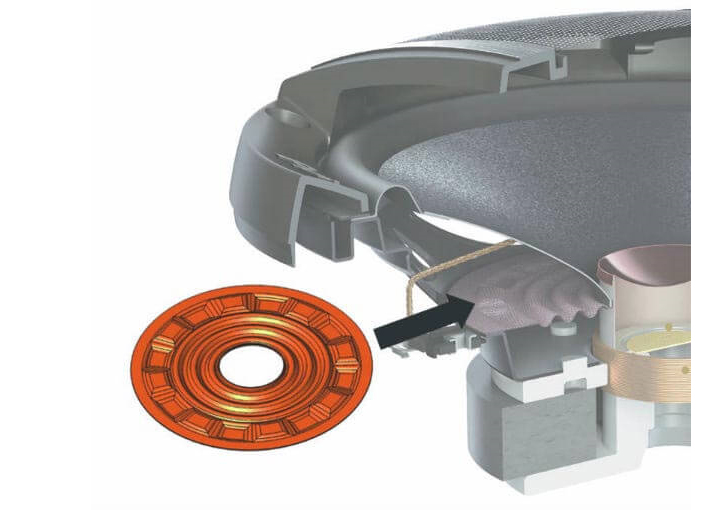

P.F.S.S. Spider

Progressive Flex Suspension System supports the voice coil effectively by dampening the large cone vibration and enhancing linearity of sound reproduction. Its soft part makes movement smooth and reproduces clear sound and at excessive input, its hard part controls excessive vibration and prevents movement error.

General
Size6" x 8"
DesignCoaxial 2-Way
Tweeter Design1-3/16" Balanced Dome
Tweeter CompositionPolyethylene Terephthalate (PET)
Woofer CompositionInjected Molded Polypropylene™ (IMPP) with MICA
Woofer SurroundRubber Coated Cloth
Woofer Magnet CompositionFerrite
Warranty1 Year

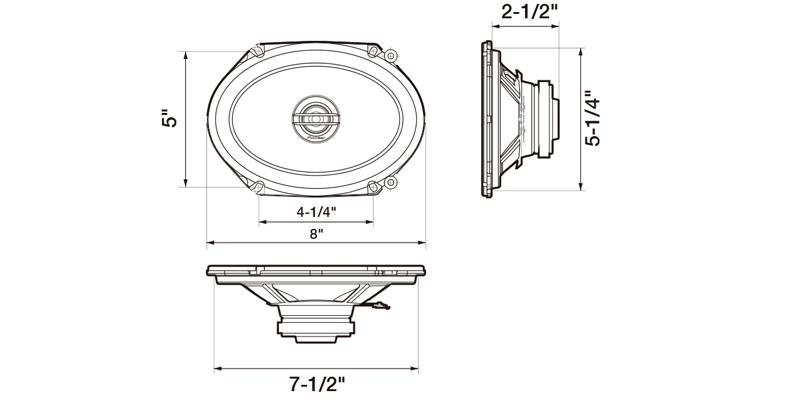

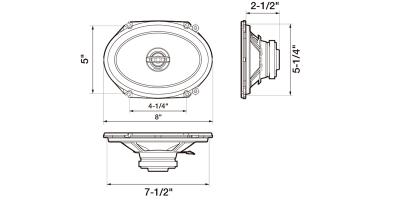

INSTALLATION SPECIFICATION
Max. Music Power (Nominal)250W (40W)
Frequency Response72 Hz to 14 kHz
Sensitivity (1W/1 m)92 dB
Impedance4 Ohms
Mounting Depth2-1/2" (in.)
Cut-Out Dimensions7-1/2" x 5-1/4" (in.)
