Pioneer DMH-342EX

Pioneer 6.8" Digital Media Receiver with Capacitive Touchscreen Amazon Alexa when Paired with Pioneer Vozsis App and Bluetooth - DMH-342EX



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Price$330.00
Savings$30.00
Our Price $300.00 CAD
Sale Ends : May 31, 2024
On Sale
Availability
Schedule Delivery


  • 6.8" WVGA (Capacitive Touch)
  • Amazon Alexa Built-in when Paired with Pioneer Vozsis App
  • Smartphone Compatible
  • Built-in Bluetooth
  • Back-up Camera Ready

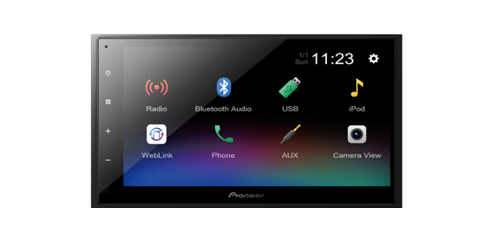

The DMH-342EX is a 6.8" capacitive touchscreen digital media receiver designed to improve in-vehicle entertainment and connectivity with your smartphone. Enjoy features such as built-in Bluetooth® for hands-free calling and audio streaming. Audio/Video playback from USB. Safety features such as backup camera ready and much more.

Vozsis with Amazon Alexa

Vozsis is a smartphone app available for both iOS and Android OS devices that brings Amazon Alexa capability to compatible Weblink-enabled Pioneer multimedia in-dash receivers. Downloading both the Vozsis and Weblink applications makes using Alexa in your car simple – just tap-and-ask, and Alexa will respond instantly. With Alexa, you can ask to play music, hear the news, check weather, control smart home devices1, and more. Alexa lives in the cloud, so it’s always getting smarter, adding new capabilities that are delivered to your device automatically.

Hands Free Bluetooth

This receiver makes hands-free phone calls simple. Pioneer's included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth devices.

Back Up Camera Input (1-Camera)

Back-Up Camera Input Ready you to add a rear-view camera, with the system automatically switching to a full-screen image of the rearview when the car is placed in reverse gear. The full-screen image returns to the source screen last in use when the vehicle is taken out of reverse gear.

Customize Your Colors

Select among five colors (blue/red/amber/green/violet) for the display and 112 different colors to match unit illumination to your vehicle's interior lighting. Also choose from several background images to suit your mood.

FLAC

Your love of high-res audio does not need to stop at the front door. Enjoy FLAC files in your vehicle without the need to convert. Pioneer's NEX in-dash receivers were the first in the industry to offer playback of files encoded as high-res FLAC up to 192kHz/24 bit and provide playback output at CD quality. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system - put your music on the move.

What's in the Box

  • Digital receiver w/ fixed 6.8" touchscreen monitor (10A fuse)
  • Wiring harness
  • Remote control (CXE9605)
  • CR2025 3V lithium battery (installed in remote)
  • 1.5m USB Extension Cable Type A(M) to Type A(F)
  • Microphone w/ visor-bracket (attached 10' cable terminated by a right-angled 2.5mm connector)
  • 6 Installation Screws
  • Installation Manual
  • Quick Start Guide
  • 1 year Warranty Sheet
Performance
Load Impedance Allowance4 Ohm (4 Ohm to 8 Ohm Allowable)
Max Power Output50 W x 4-ch 4 ohm
RCA Preamp Outputs5-ch
Continuous Power Output22 W x 4-Channel
Standards
CTA-2006Yes
DISPLAY
Monitor MechanismFixed
Display Off ModeYes
DimmerAutomatic with vehicle illumination, Manual
Device (Non-DIN/Modular Unit)2-DIN
Color Customization5 key colors / 3 Preset Background Images
Brightness ControlYes
Back LightLED
Performance
RMS Power Output (CTA-2006)14 W RMS x 4-ch 4 ohm
RCA Pre-out2V
General
Steering Wheel Control Ready (Adapter Sold Separately)Yes
Remote ControlIncluded
Music BrowserUSB
Multi-Language DisplayEnglish, French, Spanish Portuguese, Chinese (Simplified)
Detachable Face SecurityFixed
INPUTS
Input 2AUX (Minijack)
Input 1Backup Camera Dedicated
Expandability
USB Direct Control for iPhone5s and newer
USBSingle Rear Type-A (5V, 1-1/2 A)
RCA Video OutputYes
AUDIO
Subwoofer ControlYes
Speaker Output4-ch
FadeYes
LoudnessHigh/Mid/Low/Off
Easy EQ (EEQ) Preset EqualizerYes
Digital Signal ProcessorBuilt In
DA Converter24 Bit
Customizable Graphic Equalizer13 Band
Crossover Standard ModeHPF/LPF
Built-in AmplifierMOSFET 50 W x 4
BalanceYes
Bass BoostYes
DIGITAL MEDIA PLAYBACK
Image Display via USBBMP / JPEG / PNG
Audio Playback via USBAAC Audio Playback / FLAC Audio Playback (Hi-Res) / MP3 Audio Playback / WAV Audio Playback (Hi-Res) / WMA Audio Playback
Audio Video Playback via USB.avi / .mpg/mpeg / .mp4 / .mkv / .mov / .flv / .m4v / .ts/.m2ts/.mts / H.263 / H.264
INTEGRATION
WiFiTethering, WiFi Hotspot
Weblink2.0
Voice ControlYes
SpotifyBluetooth Audio Source
Siri Eyes Free (VR) (Internet Required)iPhone Only
Pioneer App CompatibilityVozsis Android, Vozsis iPhone
PandoraBluetooth Audio Source
Mobile Operating SystemAndroid / Apple iOS
Amazon AlexaPaired with Pioneer Vozsis
Tuner
RDSYes
PS (Preset Scan)Hide or display radio station name
Presets18FM 12AM
Local Seek tuningYes
Best Station MemoryYes
Bluetooth
Serial Port Profile (SPP)Yes
Secure Simple Pairing (SSP)Yes
Phone Registration5-phone
Microphone IncludedIncluded
Hands-FreeYes
Hands Free Version1.6
Built-in BluetoothYes
AVRCP1.6
Advanced Audio Distribution Profile (A2DP)Yes
DISPLAY
Touch ScreenCapacitive
Screen Size/Aspect Ratio6.8"/16:9
ResolutionWVGA (800 x 480)
