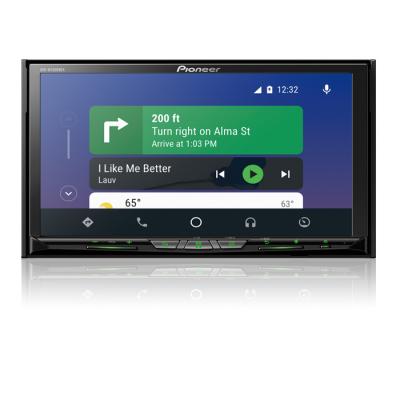

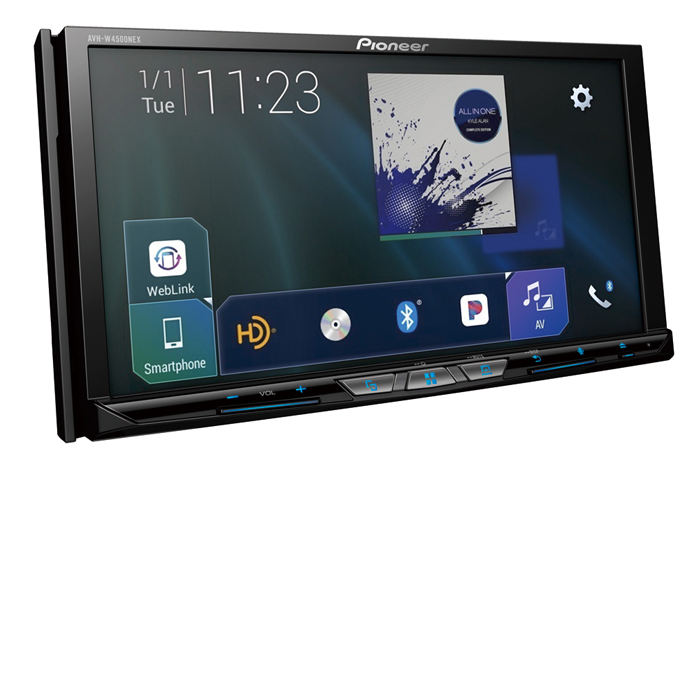

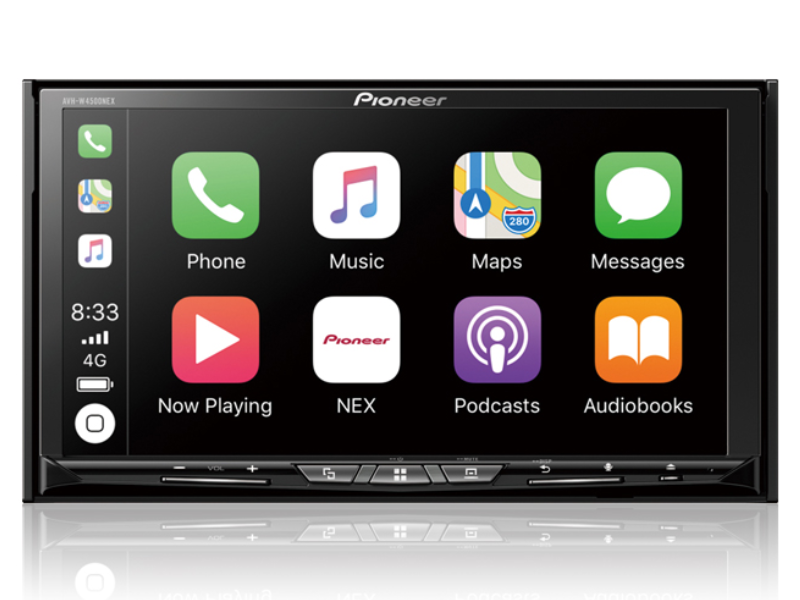

Pioneer AVH-W4500NEX

Pioneer 6.94" Multimedia DVD Receiver with Amazon Alexa Android Auto Apple CarPlay and Bluetooth - AVH-W4500NEX

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Our Price $899.99 CAD
Sale Ends : January 01, 2025
On Sale
Schedule Delivery


  • Android Auto Wireless and Android Auto compatible
  • Apple CarPlay compatible using either wireless or wired connection
  • Amazon Alexa Built-in when Paired with Pioneer Vozsis App
  • iDataLink Maestro compatible
  • Selectable Parking Assist Guidelines

What's in the Box

  • DVD receiver (10A fuse)
  • Detachable 7" touchscreen monitor (installed)
  • Wiring harness
  • AV/preout harness
  • Remote control (CD-R33)
  • CR2025 3V lithium battery (installed in remote)
  • GPS antenna (attached 11.5' cable)
  • 58" USB extension cable
  • Microphone w/ bracket (attached 13' cable terminated by a right-angle 2.5mm connector)
  • Two-sided tape
  • 6 Pan-head ISO screws (M5 x 6mm)
  • 6 Flat-head ISO screws (M5 x 6mm)
  • Wire-tie
  • Self-adhesive square
  • 3 Self-adhesive clips
  • Soft face case
  • Sticker labels
  • Quick Start Guide
  • Installation Manual
  • Important Information for the User
  • Online Product Registration
  • Warranty Sheet
  • Apple CarPlay note
  • USB Type-C Phone Caution note
Presets18 FM, 6 AM
SiriusXM-Ready (Tuner Sold Separately)Yes
Local Seek tuningYes
HD RadioBuilt In / Artist Experience / Multicasting
Best Station MemoryYes
ResolutionWVGA (800 x 480)
Home Screen CustomizationYes
Monitor MechanismMotorized
Display Off ModeYes
DimmerAutomatic with vehicle illumination, Timer Controlled, Manual
Device (Non-DIN/Modular Unit)2-DIN
Color Customization5 display colors, 112 key colors
Back LightLED
Brightness ControlYes
RCA Pre-out4V
RMS Power Output (CTA-2006)14 W RMS x 4-ch 4 ohm
RCA Preamp Outputs6-ch
Max Power Output50 W x 4-ch 4 ohm / 50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm
Load Impedance Allowance4 Ohm (4 Ohm to 8 Ohm Allowable)
Continuous Power Output22 W x 4-Channel
Steering Wheel Control Ready (Adapter Sold Separately)Yes
Remote ControlIncluded
USB Direct Control for iPhone5s and newer
USBDual Rear Type-A (5 V, 1.5 A)
SD/SDHC Memory Card SlotSDXC
RCA Video OutputYes
OEM IntegrationiDatalink® Maestro™ - RR (DATA)
Parking Assist LinesYes
Dual Zone Rear-Seat EntertainmentYes
Subwoofer ControlYes
Time AlignmentAuto / Manual
Spectrum AnalyzerYes
Speaker Output4-ch
Listening Position SelectorYes
Easy EQ (EEQ) Preset EqualizerYes
Digital Signal ProcessorBuilt In
DA Converter24 Bit
Crossover Network ModeHPF/Band Pass/LPF
Crossover Standard ModeHPF/LPF
Customizable Graphic Equalizer13 Band
Built-in AmplifierMOSFET 50 W x 4
Automatic Level ControlMode-1/Mode-2/Off
Auto Sound Levelizer (ASL)Yes
Bass BoostYes
Auto EQ (CD-MC20 Microphone sold separately)Yes
Advanced Sound RetrieverMode-1/Mode-2/Off
Image Display via SDJPEG
Image Display via USBJPEG
Audio Video Playback via USB.f4V / .3gp / .avi / .flv / .mkv / .mov / .mp4 / .mpg/mpeg / .vob / .wmv/.asf / H.263 / H.264
Audio Video Playback via SD.f4V / .3gp / .avi / .flv / .mkv / .mov / .mp4 / .mpg/mpeg / .vob / .wmv/.asf / H.263 / H.264
Audio Video Playback via DVD-R/RSL/-RDL/DVD-RWAVI Audio Video Playback / DivX Audio Video Playback / DVD Audio Video Playback
Audio Video Playback via CD-R/CD-RWAVI Audio Video Playback / DivX Audio Video Playback / DVD Audio Video Playback
Audio Playback via USBMP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / FLAC Audio Playback (Hi-Res) / WAV Audio Playback (Hi-Res)
Audio Playback via SDMP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / FLAC Audio Playback (Hi-Res) / WAV Audio Playback (Hi-Res)
Audio Playback via DVDAAC Audio Playback / MP3 Audio Playback / WMA Audio Playback
Audio Playback via CDMP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / CD Audio Playback
Voice ControlYes
SpotifyWith Apple CarPlay or Android Auto
Siri Eyes Free (VR) (Internet Required)iPhone Only
Pioneer App CompatibilityVozsis Android, Vozsis iPhone
Mobile Operating SystemAndroid / Apple iOS
PandoraSource through iPhone/Android
MirroringMiracast-Android Phones Only
Apple CarPlayWireless Connection or Wired USB Connection
Android AutoWireless Connection or Wired USB Connection
Amazon AlexaPaired with Pioneer Vozsis
Sound Retriever AirMode 1/Mode 2/Off
Serial Port Profile (SPP)Yes
Screen Size/Aspect Ratio7", 16:9
Touch ScreenResistive
Advanced Audio Distribution Profile (A2DP)Yes
Built-in BluetoothYes
Dual Phone ConnectionYes
Microphone IncludedIncluded
Phone Registration5-phone
Secure Simple Pairing (SSP)Yes
Music BrowserSD Card / USB1 / USB2
Detachable Face SecurityDetachable
Multi-Language DisplayEnglish, French, Spanish Portuguese, Chinese (Simplified)
Input 3A/V or 2nd Camera
Input 4HDMI Standard (Type A)
Input 1Backup Camera Dedicated
Input 2AUX (Minijack)
