Pioneer TS-A683FH

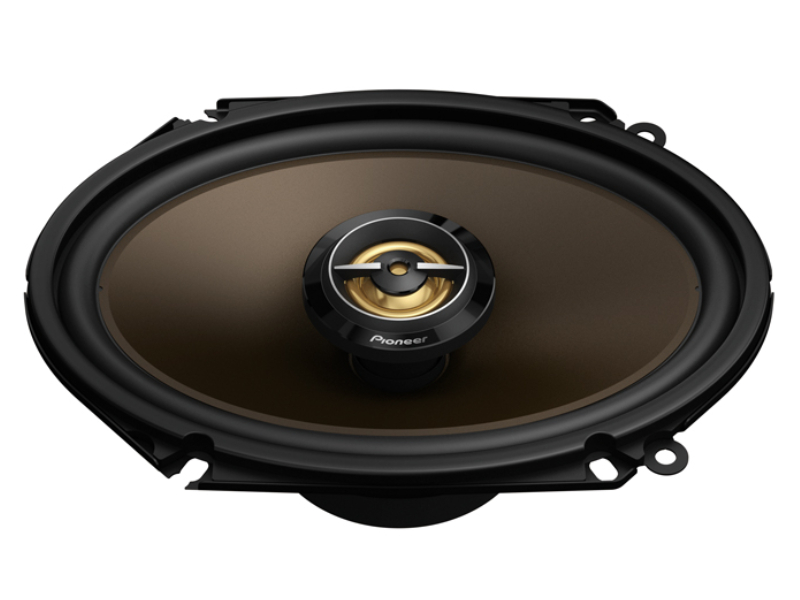

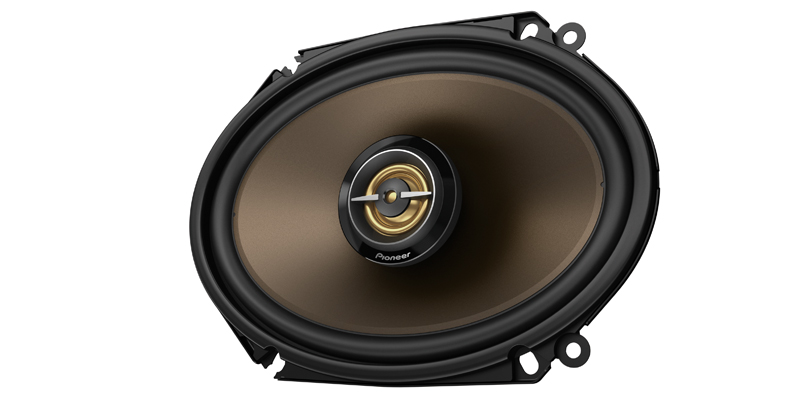

Pioneer 6" x 8" 2-way 370 W Max Power Coaxial Speakers - TS-A683FH



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Price$149.99
Savings$10.00
Our Price $139.99 CAD
Sale Ends : December 31, 2025
On Sale
Availability
Schedule Delivery

Literature

  • 370 Watts Max Power (85 Watts Nominal)
  • 20mm Polyetherimide (PEI) hard dome tweeter
  • 34 Hz to 49 kHz Frequency Range

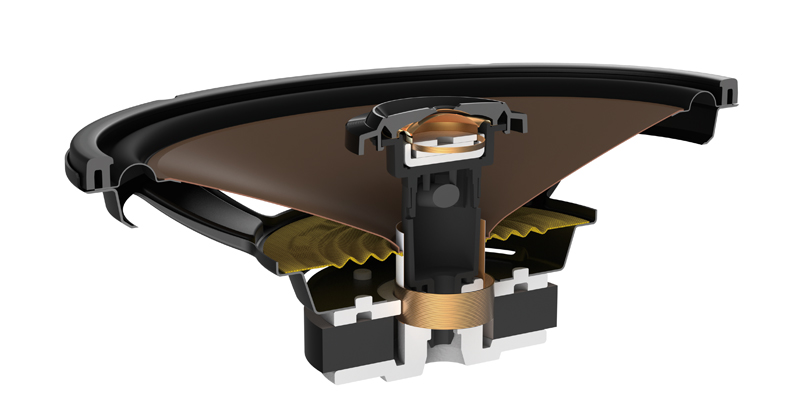

  • 6" x 8" Aramid fiber reinforced Injection Molded Polypropylene (IMPP) cone construction
  • Pioneer patented P.F.S.S. (Progressive Flex Suspension System) (U.S. Patent 20,120,106,777)

What's in the Box

  • Two 6"x8" 2-way coaxial speakers
  • Two mounting brackets
  • Two 12" lengths of speaker wire (female quick slides on one end and bare wire on the other)
  • Eight 1" Screws
  • Warranty information
SYSTEM
System TypeCoaxial 2-way
Sound Pressure Level (Sensitivity)90 dB (+- 1.5dB)
Frequency Range34 Hz to 49 kHz
Continuous Power Handling (RMS)85 Watts
Maximum Peak Power Handling370 Watts
Nominal Impedance4 ohms
Woofer
Diameter6" x 8"
Cone MaterialAramid fiber reinforced IMPP
Surround MaterialElastic Polymer
Basket MaterialIron Plate Press
Magnet MaterialFerrite
Magnet Weight7.41 oz
Voice Coil BobbinGlass Imide
Voice Coil wireCopper
Mounting Depth2-1/2" (Shallow basket)
Tweeter
TypePolyetherimide (PEI) hard dome tweeter
Diameter20 mm
Diaphragm MaterialFilm (PEI)
Magnet MaterialNeodymium
Magnet Weight0.17
Warranty
Warranty (must be purchased from a Authorized Pioneer Dealer)1 year
