Pioneer TS-A693CH

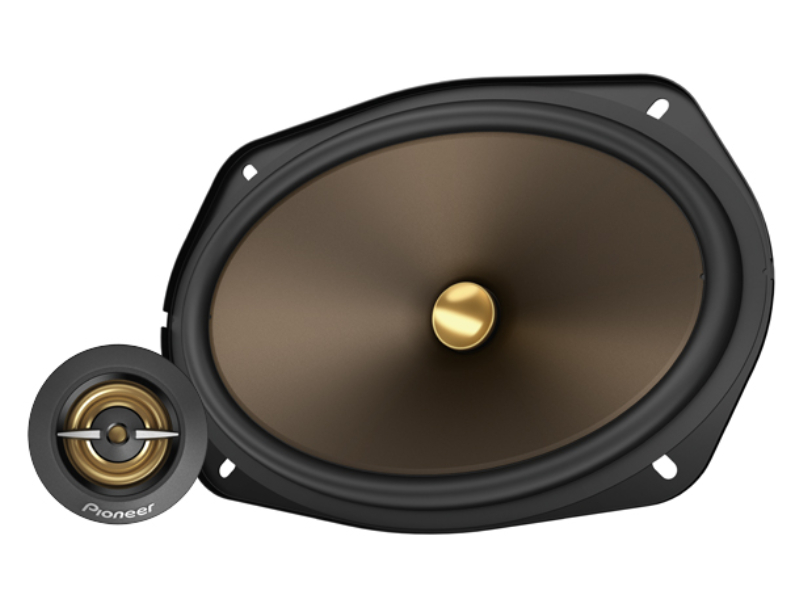

Pioneer 6" x 9" 2-way 460 W Max Power Composite Speakers - TS-A693CH



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Price$219.99
Savings$10.00
Our Price $209.99 CAD
Sale Ends : January 01, 2025
On Sale
Availability
Schedule Delivery

Literature

  • 460 Watts Max Power (105 Watts Nominal)
  • 20mm Polyetherimide (PEI) hard dome tweeter
  • 30Hz to 58 kHz Frequency Range
  • 6" x 9" Aramid fiber reinforced Injection Molded Polypropylene (IMPP) cone construction
  • Pioneer patented P.F.S.S. (Progressive Flex Suspension System) (U.S. Patent 20,120,106,777)

What's in the Box

  • Two 6"x9" woofers
  • Two Pioneer Multi-Fit mounting brackets
  • Eight 1-1/8" Screws
  • Eight 3/8" Screws
  • Two tweeters (with attached 10" speaker leads terminated with quick-connects)
  • Two Lengths of speaker wire (each has quick slides to connect to the woofer-a 40" tweeter output leg with integrated crossover-and an 11" input leg)
  • Two Tweeter angled surface mount housings
  • Two Tweeter flush mount rings
  • Two Tweeter factory mount brackets
  • Two Adhesive backed foam discs
  • Six 1/2" Screws
  • Warranty information
Tweeter
Magnet Weight0.17
Magnet MaterialNeodymium
SYSTEM
System TypeSeparate 2-way
Sound Pressure Level (Sensitivity)92 dB (+- 1.5dB)
Frequency Range30Hz to 58 kHz
Continuous Power Handling (RMS)105 Watts
Maximum Peak Power Handling460 Watts
Nominal Impedance4 ohms

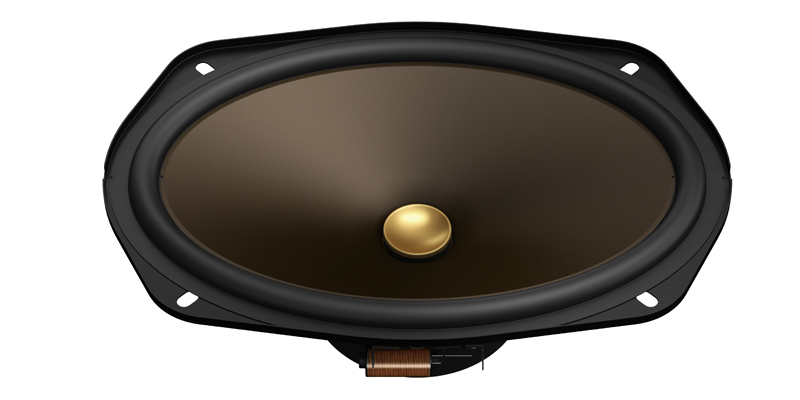

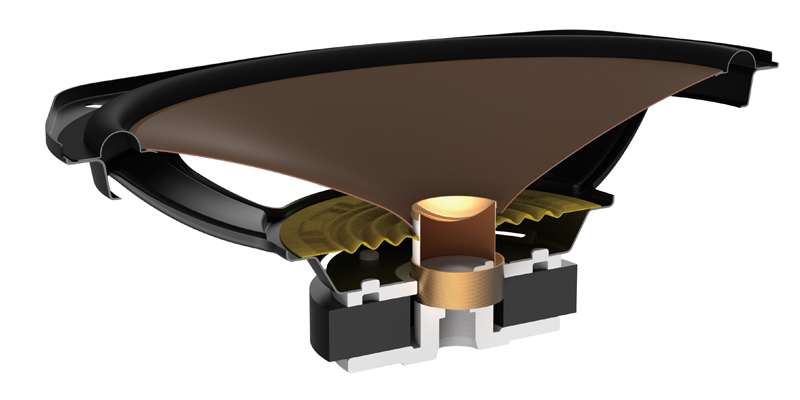

Woofer
Diameter6" x 9"
Cone MaterialAramid fiber reinforced IMPP
Surround MaterialElastic Polymer
Basket MaterialIron Plate Press
Magnet MaterialFerrite
Magnet Weight13.05 oz
Voice Coil BobbinGlass Imide
Voice Coil wireCopper
Mounting Depth2-7/8" (Shallow basket)
Tweeter
TypeSeparate component Polyetherimide (PEI) hard dome tweeter
Diameter20 mm
Diaphragm MaterialFilm (PEI)
Warranty
Warranty (must be purchased from a Authorized Pioneer Dealer)1 year
