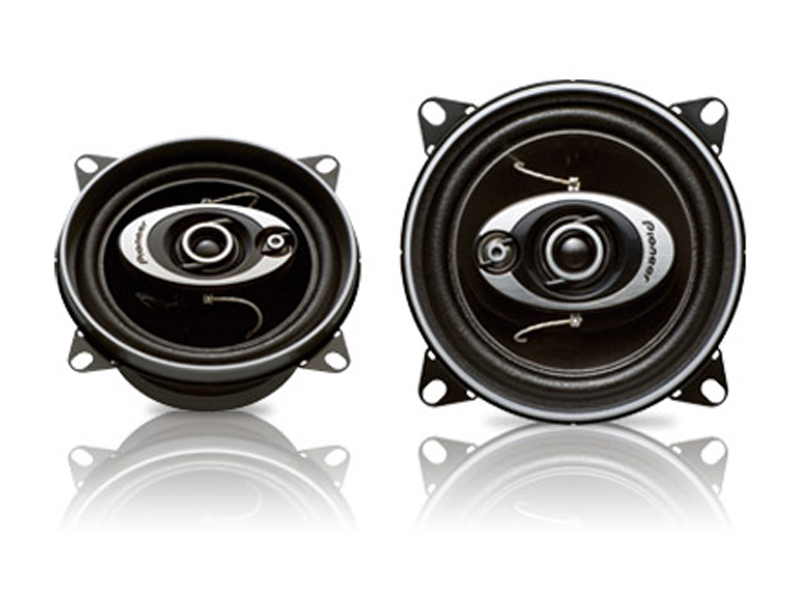

4" 3-Way Speaker with 150 Watts Max.
Experience smooth sound with A-Series. Pioneer's exclusive technology enriches your music by producing clear, open sound. Bring out the details of your music with A-Series speakers.
Looking for a high-performance 4” speaker?
The TS-A1072R is a 3-way speaker that handles 150 watts max. and it’s equipped with an Composite IMPP™ cone using interlaced aramid fiber that’s super-strong, rigid, tough, and very lightweight—the perfect attributes for big, booming bass and exceptional power handling.
The mid-range is a 15/16" Light Weight Balanced Dome with Magnetic Fluid and includes its own Neodymium Magnet, for high-performance reproduction with low distortion, and the 3/8” Dome Tweeter delivers smooth, accurate highs.
A custom-fit basket will fit both 4- & 2-Hole Mounting applications, making installation easy.
|Watts MAX. Music Power||150 Watts|
|Watts Nominal Power Handling||20 Watts|
|Frequency Response||45 HZ to 30KHz|
|Sensitivity (1W/1m)||90 db|
|(Ohm) Rating||4 ohm|
|Mounting Depth||1-11/16" (43 mm)|
|Cut-out Dimensions||3-1/2" (90 mm)|
|Woofer Cone Material||Composite IMPP Cone using Interlaced Aramid Fiber|
|Surround||Foam Rubber Coated Cloth|
|Voice Coil Bobbin||Glass-Imide|
|Tweeter||3/8" Soft Dome|
|Speaker Grille||Not Included|
