Pioneer TS-A709

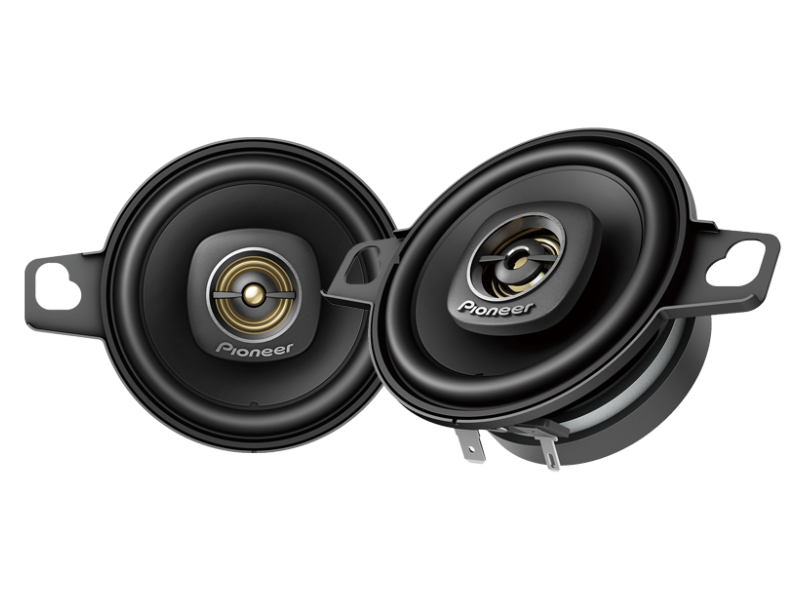

Pioneer A Series 2-Way Tweeter Coaxial Speaker - TS-A709



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Our Price $100.00 CAD
Availability
Schedule Delivery

Literature

  • 450 Watts Max Power (100 Watts Nominal)
  • 16mm polyetherimide Tweeter
  • 2-3/4” Carbon and Mica reinforced Injected Molded Polypropylene - IMPP Cone
  • Inline crossover network with audio quality capacitor

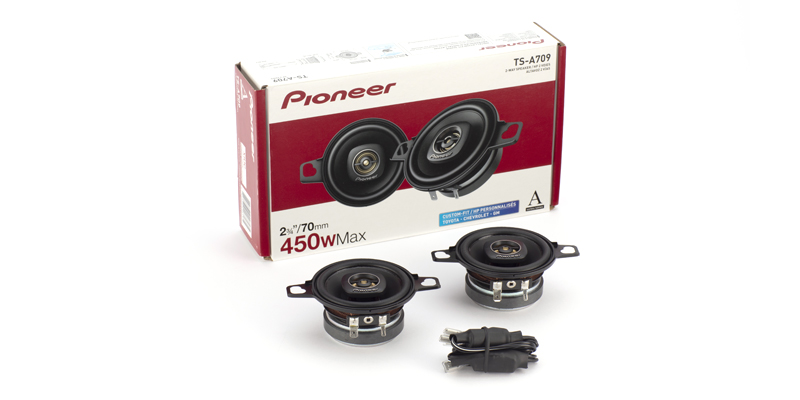

What’s in the Box

  • One pair 2-3/4" wide range speakers
  • One pair In-line crossover network
  • 1 Year Warranty Sheet
Standards & Performance
System-TypeCoaxial 2-way
Nominal Load Impedance4-Ohm
Frequency Response101 Hz to 34 kHz/ 850 Hz to 33kHz - with inline packaged crossover network
CTA2031 CompliantYes
SPEAKER MATERIALS
Voice Coil MaterialGlass Imide
Surround MaterialRubber
Magnet MaterialFerrite
Custom Fit BasketYes
Basket MaterialMetal
SPEAKER FEATURES
Unit ShapeRound
Mounting Depth1-1/4"
Unit Size2-3/4" / 16mm - Tweeter
Tweeter16mm
Cut Out dimensions2-1/2"
Standards & Performance
Sensitivity (1W/1m)82 dB
Maximum Peak Power Handling - Watts450 Watts with packaged crossover network
Continuous Power Handling (RMS) - Watts100 Watts with packaged crossover network
SPEAKER MATERIALS
Voice Coil wireCopper
Cone MaterialCarbon and Mica reinforced Injected Molded Polypropylene – IMPP
DamperAramid Fiber
Magnet Weight2.5 oz
Surround TypeRolled
Voice Coil TypeSingle Voice Coil
Wire TerminalsLug Type
Tweeter
Diaphragm MaterialPolyetherimide (PEI)
TypeDome
